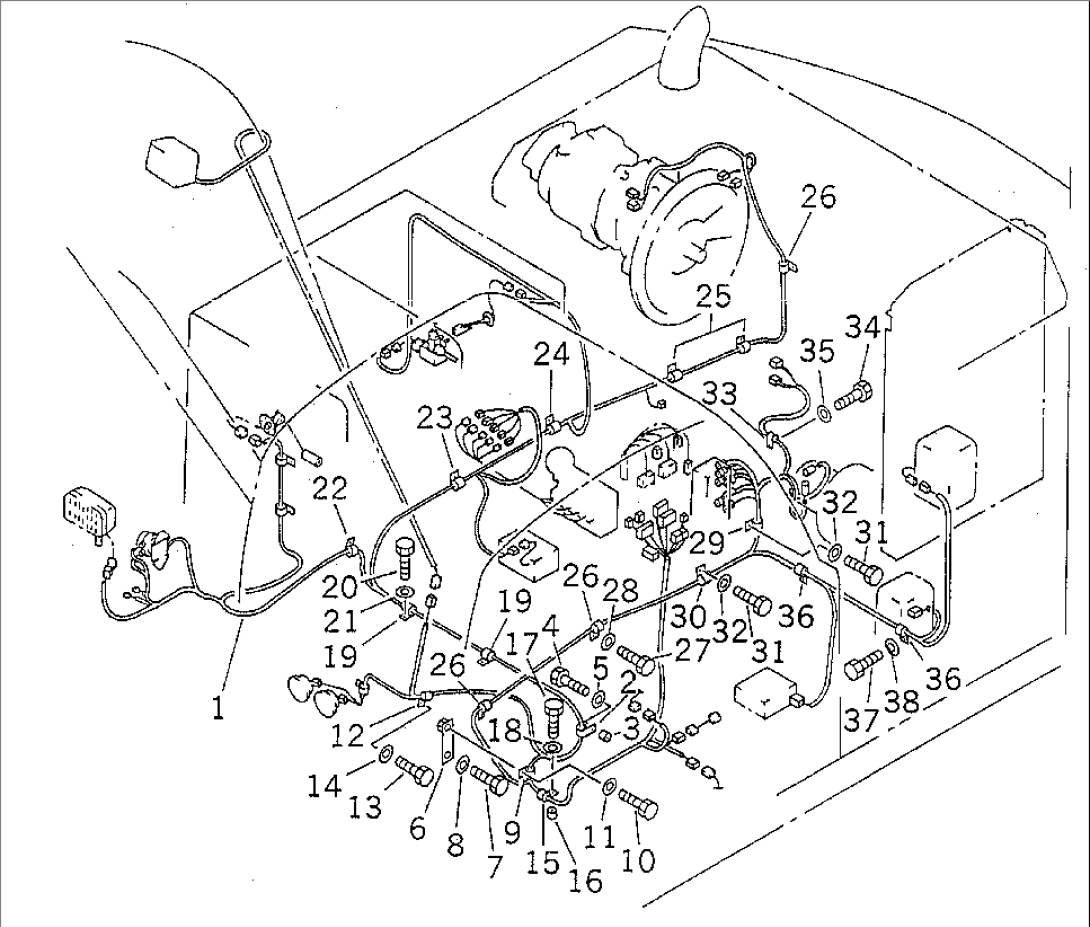

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-06-21115 | WIRING HARNESS | 10081-10176 | |
| 1 | 20Y-06-15150 | FUSIBLE LINK | 10001-10176 | |
| 2 | 113-899-7950 | CLIP | 10001-10176 | |
| 3 | 144-947-3490 | SPACER | 10001-10176 | |
| 4 | 01010-51245 | BOLT | 10001-10176 | |
| 5 | 01643-31232 | WASHER | 10001-10176 | |
| 6 | 20Y-06-21240 | PLATE | 10001-10176 | |
| 7 | 01010-51225 | BOLT | 10001-10176 | |
| 8 | 01643-31232 | WASHER | 10001-10176 | |
| 9 | 113-899-7950 | CLIP | 10001-10176 | |
| 10 | 01010-51225 | BOLT | 10001-10176 | |
| 11 | 01643-31232 | WASHER | 10001-10176 | |
| 12 | 08036-01014 | CLIP | 10001-10176 | |
| 13 | 01010-51225 | BOLT | 10001-10176 | |
| 14 | 01643-31232 | WASHER | 10001-10176 | |
| 15 | 113-899-7950 | CLIP | 10001-10176 | |
| 16 | 144-947-3490 | SPACER | 10001-10176 | |
| 17 | 01010-51245 | BOLT | 10001-10176 | |
| 18 | 01643-31232 | WASHER | 10001-10176 | |
| 19 | 113-899-7950 | CLIP | 10001-10176 | |
| 20 | 01010-51225 | BOLT | 10001-10176 | |
| 21 | 01643-31232 | WASHER | 10001-10176 | |
| 22 | 08036-01814 | CLIP | 10001-10176 | |
| 23 | 113-899-7950 | CLIP | 10001-10176 | |
| 24 | 08035-03014 | CLIP | 10001-10176 | |
| 25 | 08036-02514 | CLIP | 10001-10176 | |
| 26 | 08036-02514 | CLIP | 10001-10176 | |
| 27 | 01010-51225 | BOLT | 10001-10176 | |
| 28 | 01643-31232 | WASHER | 10001-10176 | |
| 29 | 08036-01814 | CLIP | 10001-10176 | |
| 30 | 08036-02514 | CLIP | 10001-10176 | |
| 31 | 01010-51225 | BOLT | 10001-10176 | |
| 32 | 01643-31232 | WASHER | 10001-10176 | |
| 33 | 08036-01414 | CLIP | 10001-10176 | |
| 34 | 01010-51225 | BOLT | 10001-10176 | |
| 35 | 01643-31232 | WASHER | 10001-10176 | |
| 36 | 08036-01414 | CLIP | 10001-10176 | |
| 37 | 01010-51225 | BOLT | 10001-10176 | |
| 38 | 01643-31232 | WASHER | 10001-10176 |
