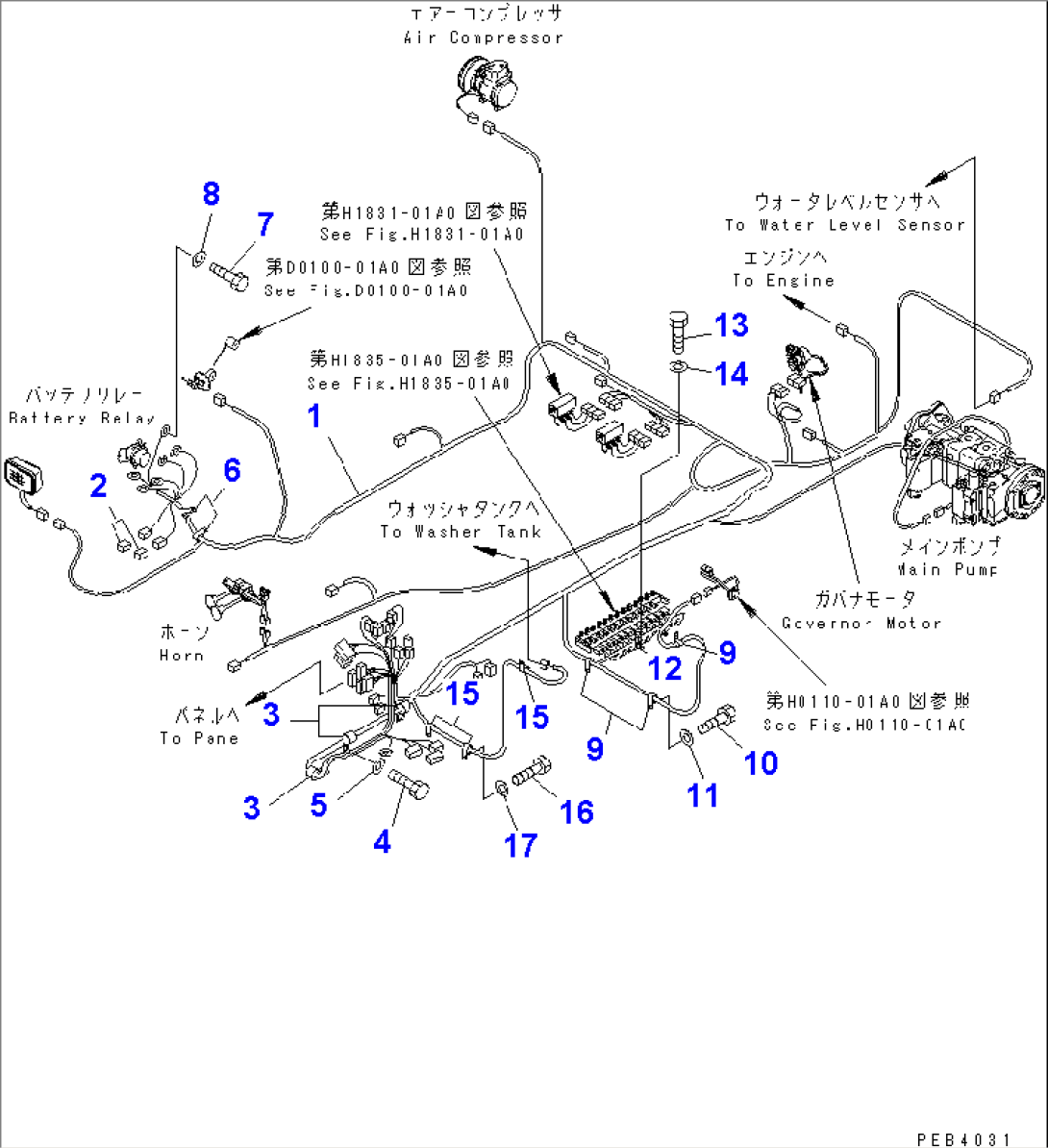

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-06-71111 | WIRING HARNESS | 30001-30174 | |
| 2 | 20Y-06-15150 | FUSIBLE LINK | 30001-@ | |
| 3 | 113-899-7950 | CLIP | 30001-@ | |
| 4 | 01010-81225 | BOLT | 30001-@ | |
| 5 | 01643-31232 | WASHER | 30001-@ | |
| 6 | 08036-01814 | CLIP | 30001-@ | |
| 7 | 01010-80820 | BOLT | 30001-@ | |
| 8 | 01643-30823 | WASHER | 30001-@ | |
| 9 | 08036-01014 | CLIP | 30001-@ | |
| 10 | 01010-81225 | BOLT | 30001-@ | |
| 11 | 01643-31232 | WASHER | 30001-@ | |
| 12 | 08036-01814 | CLIP | 30001-@ | |
| 13 | 01010-81225 | BOLT | 30001-@ | |
| 14 | 01643-31232 | WASHER | 30001-@ | |
| 15 | 08036-01014 | CLIP | 30001-@ | |
| 16 | 01010-81225 | BOLT | 30001-@ | |
| 17 | 01643-31232 | WASHER | 30001-@ |
