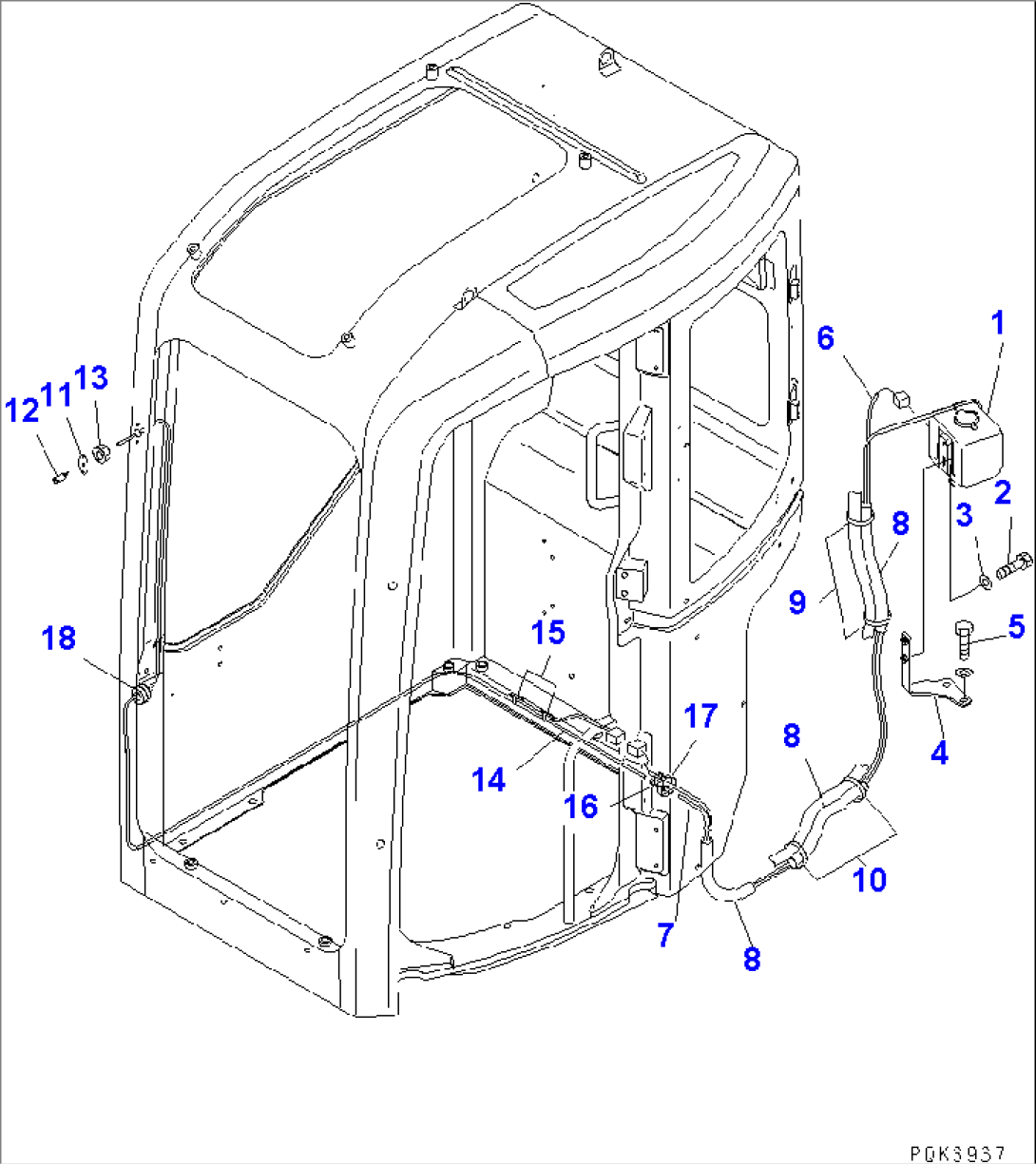

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-54-24890 | WASHER TANK ASS'Y | 16307- | |
| 2 | 01010-80616 | BOLT | 16307- | |
| 3 | 01643-30623 | WASHER | 16307- | |
| 4 | 21W-54-31930 | BRACKET | 16307- | |
| 5 | 01010-81025 | BOLT | 16307- | |
| 6 | 21W-06-31420 | WIRING HARNESS | 16307- | |
| 7 | 195-979-8570 | HOSE | 16307- | |
| 8 | 363-04-33110 | PROTECTOR | 16307- | |
| 9 | 08034-00414 | BAND | 16307- | |
| 10 | 08034-00823 | BAND | 16307- | |
| 11 | 205-06-71590 | BRACKET | 16307- | |
| 12 | 205-06-61220 | NOZZLE ASS'Y | 16307- | |
| 13 | 205-06-71610 | NUT | 16307- | |
| 14 | 20Y-06-21620 | HOSE | 16307- | |
| 15 | 21W-54-14690 | CLIP | 16307- | |
| 16 | 195-979-8590 | VALVE | 16307- | |
| 17 | 14X-911-4551 | CLIP | 16307- | |
| 18 | 08037-01008 | GROMMET | 16307- |
