| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14W-960-7192 | PLATE | 10001- | |
| 2 | 01641-20812 | WASHER | 10001- | |
| 3 | 04050-12015 | PIN | 10001- | |
| 4 | 14W-960-7231 | BRACKET | 10001- | |
| 5 | 14W-960-7240 | PLATE | 10001- | |
| 6 | 14X-960-7340 | ROD | 10001- | |
| 7 | 01641-20608 | WASHER | 10001- | |
| 8 | 04050-11612 | PIN | 10001- | |
| 9 | 01010-80830 | BOLT | 10001- | |
| 10 | 01643-30823 | WASHER | 10001- | |
| 11 | 01643-31032 | WASHER | 10001- | |
| 12 | 154-960-7110 | CABLE | 10001- | |
| 13 | 154-960-7120 | CABLE | 10001- | |
| 14 | 08017-81319 | CONDUIT | 10001- | |
| 15 | 203-62-52210 | RUBBER | 10001- | |
| 16 | 08034-20823 | BAND | 10001- | |
| 17 | 04435-51712 | CLIP | 10001- | |
| 18 | 01010-81225 | BOLT | 10001- | |
| 19 | 01643-31232 | WASHER | 10001- | |
| 20 | 04210-20832 | YOKE | 10001- | |
| 21 | 04205-10825 | PIN | 10001- | |
| 22 | 04050-12015 | PIN | 10001- | |
| 23 | 09415-02512 | CAP | 10001- | |
| 24 | 14X-43-11320 | BOOT | 10001- | |
| 25 | 14Z-43-11310 | KNOB | 10001- | |
| 26 | 08037-01008 | GROMMET | 10001- | |
| 27 | 09304-10835 | KNOB | 10001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85ex 15 s/n 10001 up
- Operator's compartment and control system

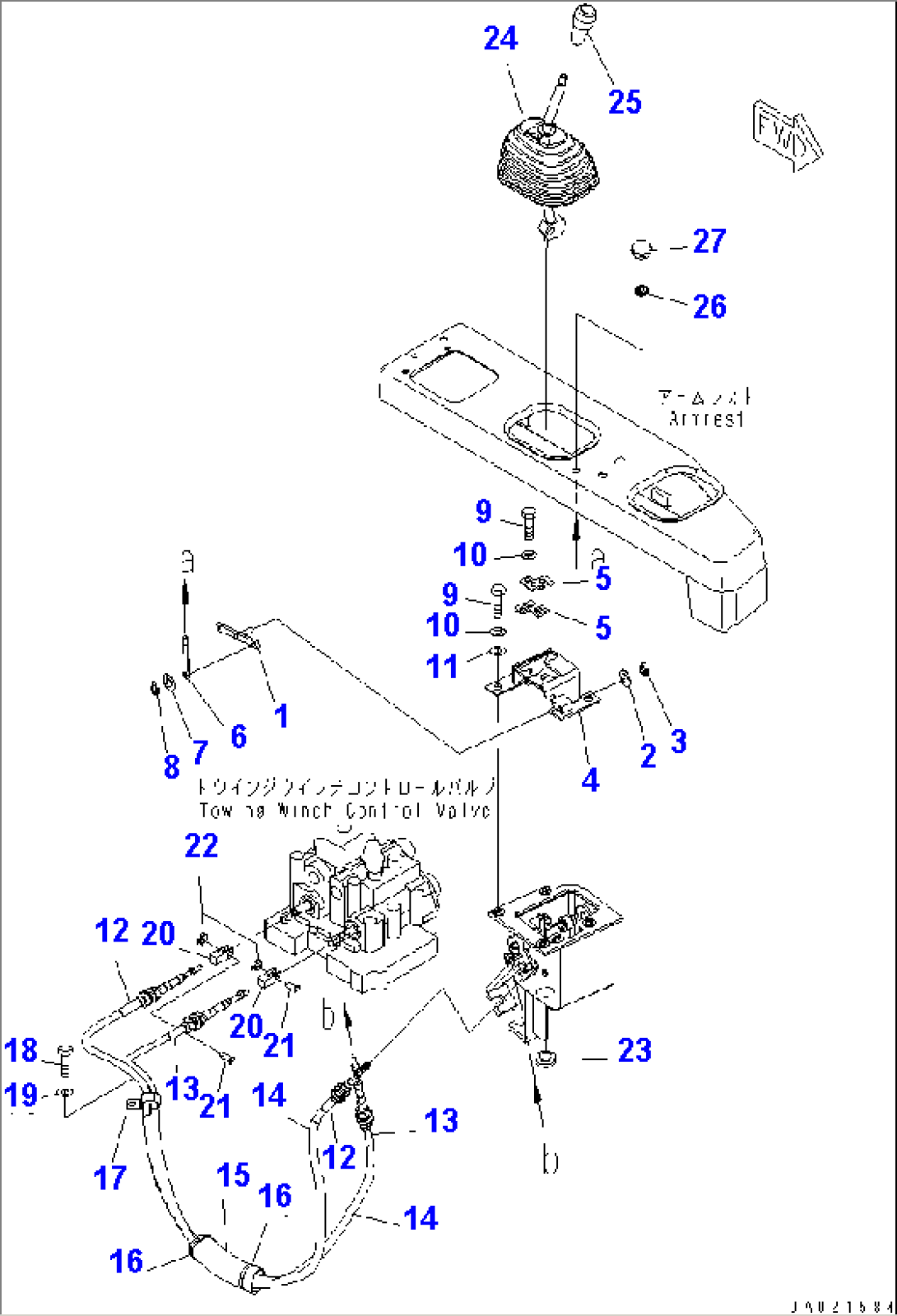

- Winch control lever (cable)
