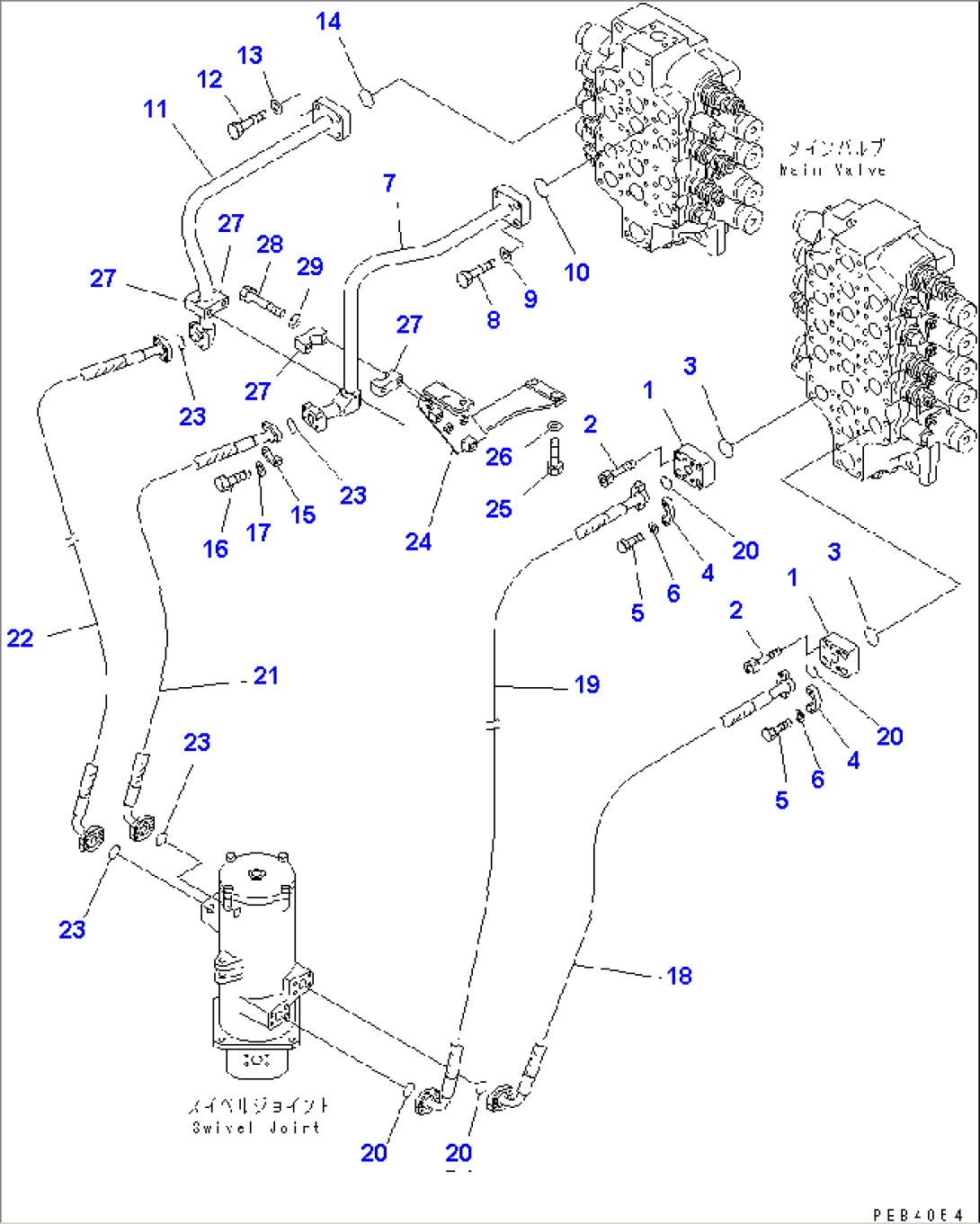

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-62-52230 | PLATE | 10001-@ | |
| 2 | 01252-41445 | BOLT | 10001-@ | |
| 3 | 21T-09-11510 | O-RING | 10001-@ | |
| 4 | 07371-31049 | FLANGE | 10001-@ | |
| 5 | 07372-21035 | BOLT | 10001-@ | |
| 6 | 01643-51032 | WASHER | 10001-@ | |
| 7 | 209-62-71432 | TUBE | 10001-@ | |
| 8 | 01010-81455 | BOLT | 10001-@ | |
| 9 | 01643-31445 | WASHER | 10001-@ | |
| 10 | 21T-09-11510 | O-RING | 10001-@ | |
| 11 | 209-62-71422 | TUBE | 10001-@ | |
| 12 | 01010-81455 | BOLT | 10001-@ | |
| 13 | 01643-31445 | WASHER | 10001-@ | |
| 14 | 21T-09-11510 | O-RING | 10001-@ | |
| 15 | 07371-31049 | FLANGE | 10001-@ | |
| 16 | 07372-21035 | BOLT | 10001-@ | |
| 17 | 01643-51032 | WASHER | 10001-@ | |
| 18 | 07098-01015 | HOSE | 10001-10238 | |
| 19 | 07098-01016 | HOSE | 10001-10238 | |
| 20 | 07000-13032 | O-RING | 10001-@ | |
| 21 | 07098-01010 | HOSE | 10001-10238 | |
| 22 | 07098-01012 | HOSE | 10001-10238 | |
| 23 | 07000-13032 | O-RING | 10001-@ | |
| 24 | 209-62-71442 | BRACKET | 10001-10238 | |
| 25 | 01010-81240 | BOLT | 10001-@ | |
| 26 | 01643-31232 | WASHER | 10001-@ | |
| 27 | 209-62-58750 | CLAMP | 10001-@ | |
| 28 | 01011-81200 | BOLT | 10001-@ | |
| 29 | 01643-31232 | WASHER | 10001-@ |
