| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-54-75260 | COVER | 10239-10999 | |
| \0\209-54-73671 | COVER | 10001-10238 | ||
| 2 | 20Y-54-28161 | HINGE (WELDED) | 10001-10238 | |
| 3 | 01010-81230 | BOLT | 10001-10999 | |
| 4 | 175-54-34170 | WASHER | 10001-10999 |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc750se 6 s/n 10001 up
- Guard
- Under cover (revolving frame) (center)(#10001 10999)
Поиск по каталогу

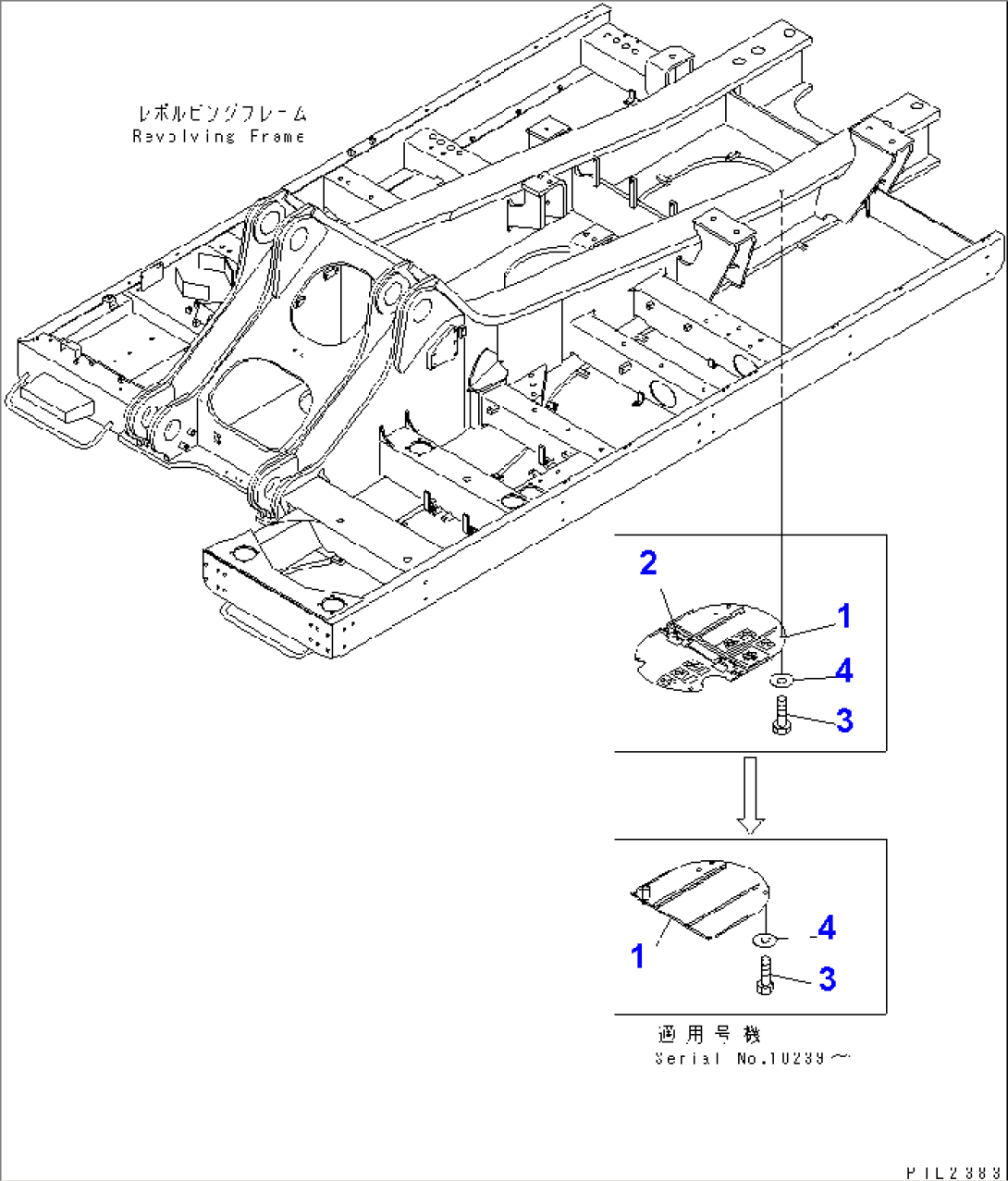

UNDER COVER (REVOLVING FRAME) (CENTER)(#10001-10999)
