| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\20Y-46-X2111) | COVER GROUP | 35001- | |
| ==================== | ||||
| 1 | 20Y-54-15621 | COVER | 35001- | |
| 2 | 01010-51230 | BOLT | 35001- | |
| 3 | 01643-31232 | WASHER | 35001- | |
| 4 | 20Y-54-12550 | COLLAR | 35001- | |
| ==================== |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc220lc 5c s/n 35001 up
- Guard
- Under cover (for frame r.h.)
Поиск по каталогу

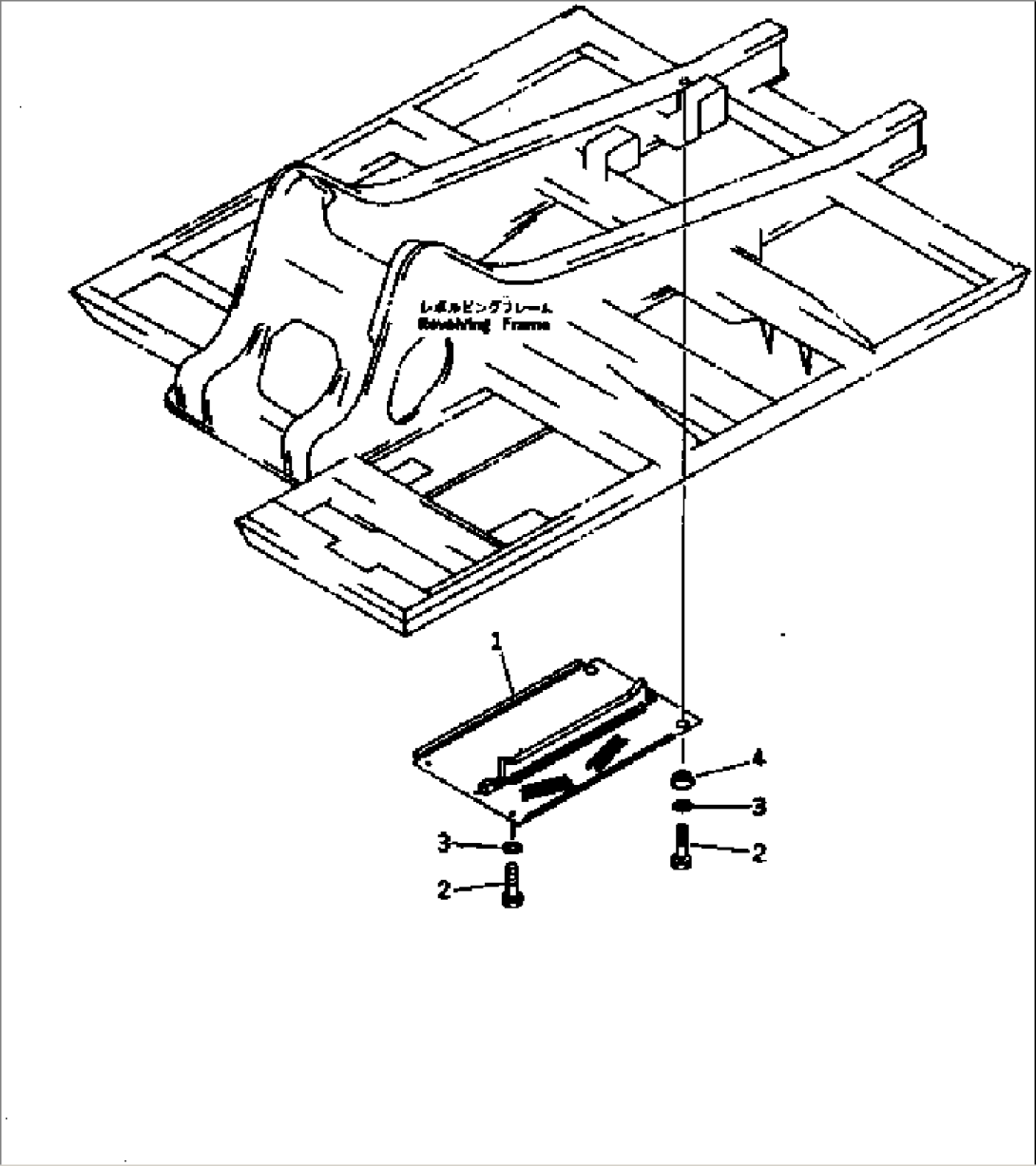

UNDER COVER (FOR FRAME R.H.)
