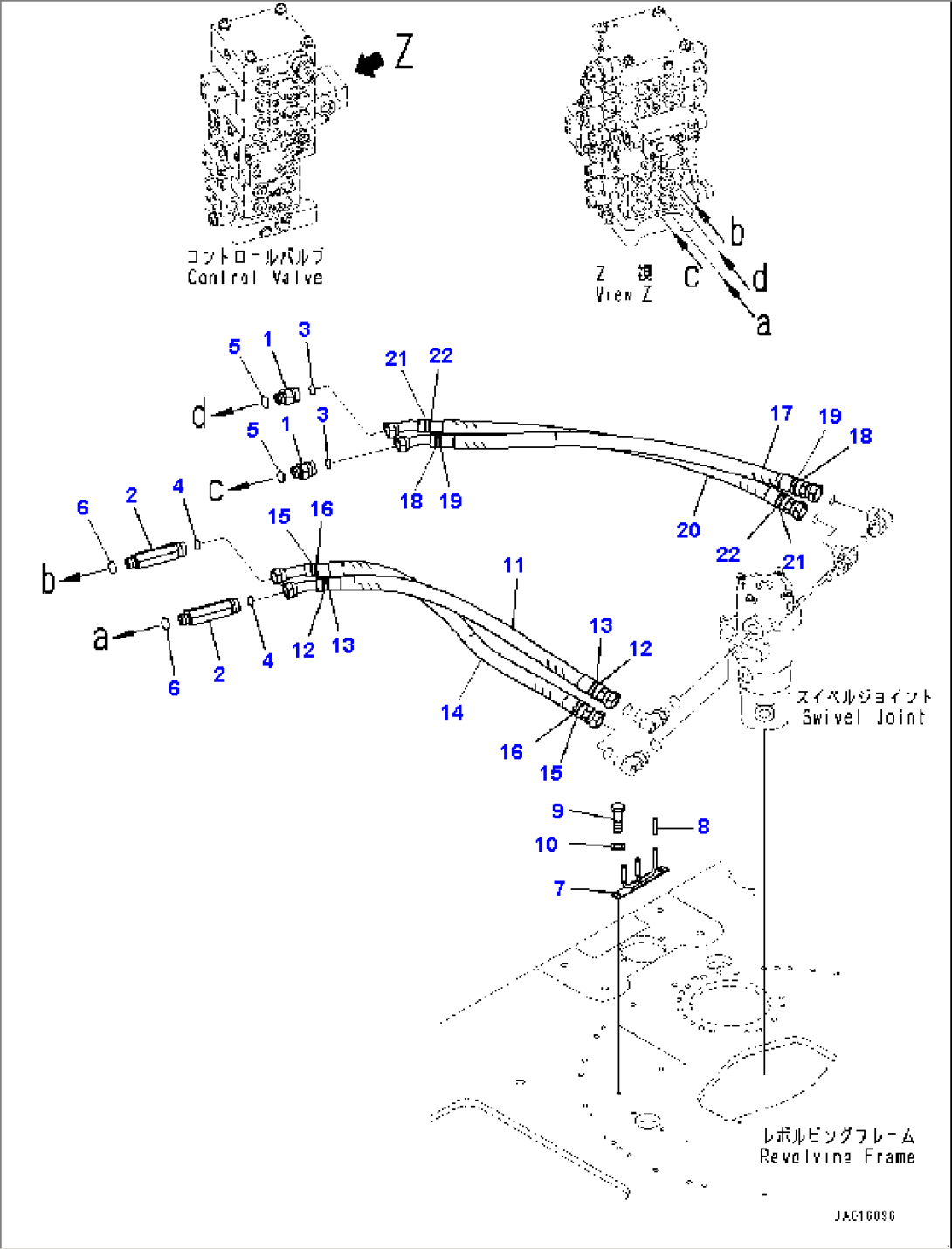

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02781-00628 | Union | 50001- | |
| 2 | 22B-62-31110 | Joint | 50001- | |
| 3 | 02896-61018 | O-ring | 50001- | |
| 4 | 02896-61018 | O-ring | 50001- | |
| 5 | 07002-62434 | O-ring | 50001- | |
| 6 | 07002-62434 | O-ring | 50001- | |
| 7 | 21Y-62-11510 | Clamp | 50001- | |
| 8 | 07270-21005 | Tube | 50001- | |
| 9 | 01010-81225 | Bolt | 50001- | |
| 10 | 01643-31232 | Washer | 50001- | |
| 11 | 22B-62-33321 | Hose | 50001- | |
| 12 | 21U-62-34720 | Band, Black | 50001- | |
| 13 | 21U-62-34710 | Band, Yellow | 50001- | |
| 14 | 22B-62-33291 | Hose | 50001- | |
| 15 | 21U-62-34730 | Band, Green | 50001- | |
| 16 | 21U-62-34710 | Band, Yellow | 50001- | |
| 17 | 22B-62-33331 | Hose | 50001- | |
| 18 | 21U-62-34780 | Band, Brown | 50001- | |
| 19 | 21U-62-34710 | Band, Yellow | 50001- | |
| 20 | 22B-62-33341 | Hose | 50001- | |
| 21 | 21U-62-34740 | Band, Orange | 50001- | |
| 22 | 21U-62-34710 | Band, Yellow | 50001- |
