| Item | Part No. | Part Name | Qty | Serial No. |
| (20N-60-82500) | MOTOR | 10001- | ||

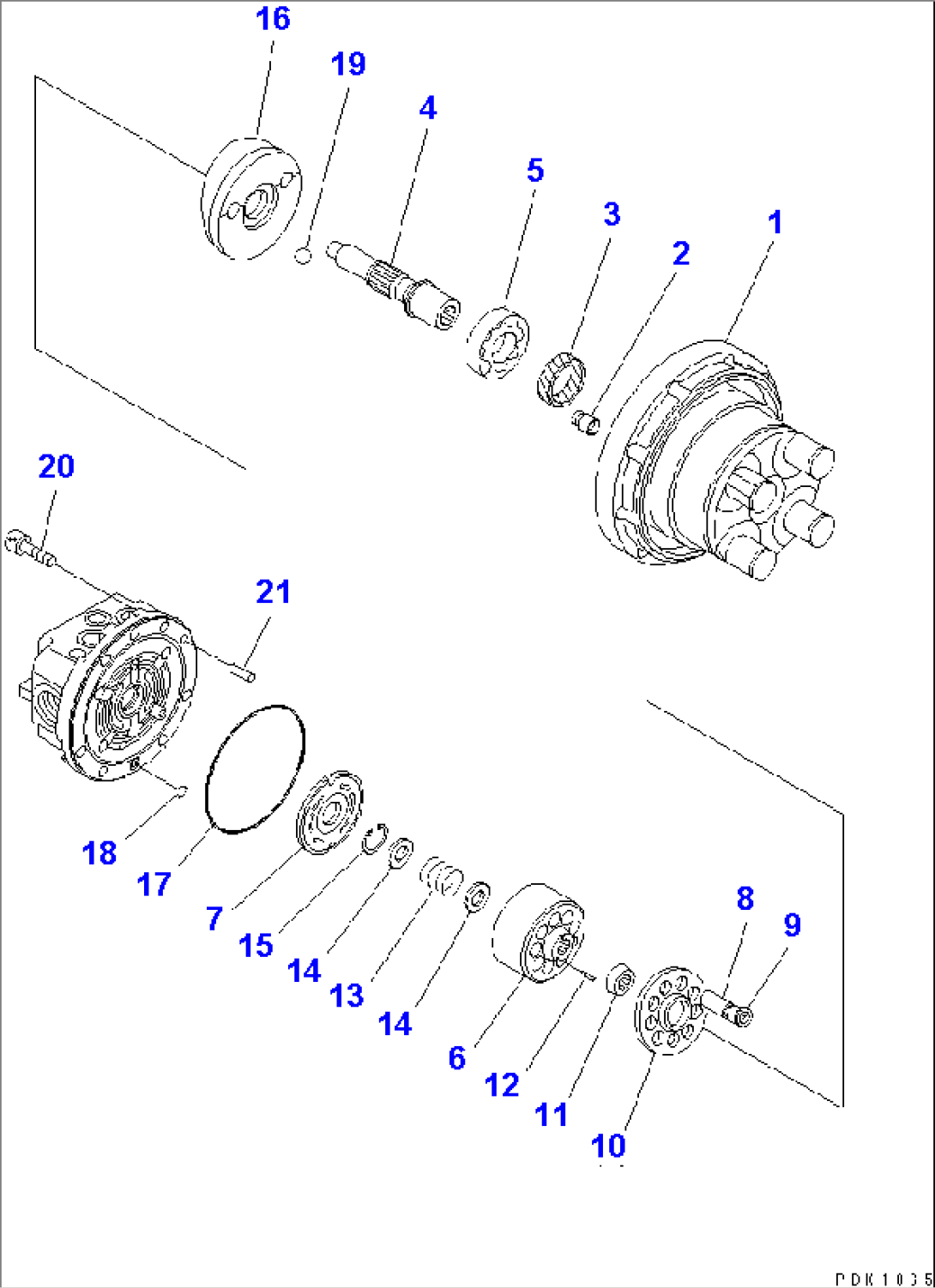

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A0, 02A0 AND 03A0. | ||||
| (FUPMV07B170944) | MOTOR ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-02A0 AND Y1651-03A0. | ||||
| FUMHCB07B14428 | BODY SUB ASS'Y | 10001- | ||
| 1 | \6\ | BODY | 10001- | |
| 2 | \6\ | PISTON | 10001- | |
| 3 | \6\ | SEAL,OIL | 10001- | |
| 4 | FUFZD4428103 | SHAFT | 10001- | |
| 5 | 06000-06004 | BEARING | 10001- | |
| 6 | \6\ | CYLINDER | 10001- | |
| 7 | \6\ | PLATE | 10001- | |
| 8 | \6\ | PISTON | 10001- | |
| 9 | \6\ | SHOE | 10001- | |
| 10 | \6\ | HOLDER | 10001- | |
| 11 | \6\ | HOLDER | 10001- | |
| 12 | \6\ | PIN | 10001- | |
| 13 | \6\ | SPRING | 10001- | |
| 14 | \6\ | RETAINER | 10001- | |
| 15 | 04065-02812 | RING | 10001- | |
| 16 | FUFZD442811017 | PLATE | 10001- | |
| 17 | 07000-12105 | O-RING | 10001- | |
| 18 | 07000-11007 | O-RING | 10001- | |
| 19 | FUYB-5-8 | BALL | 10001- | |
| 20 | FUTH-8X20 | SCREW | 10001- | |
| 21 | FUPP-H7-6X14 | PIN | 10001- |
