| Item | Part No. | Part Name | Qty | Serial No. |
| (20X-60-31200) | TRAVEL MOTOR ASS'Y | 1001- | ||

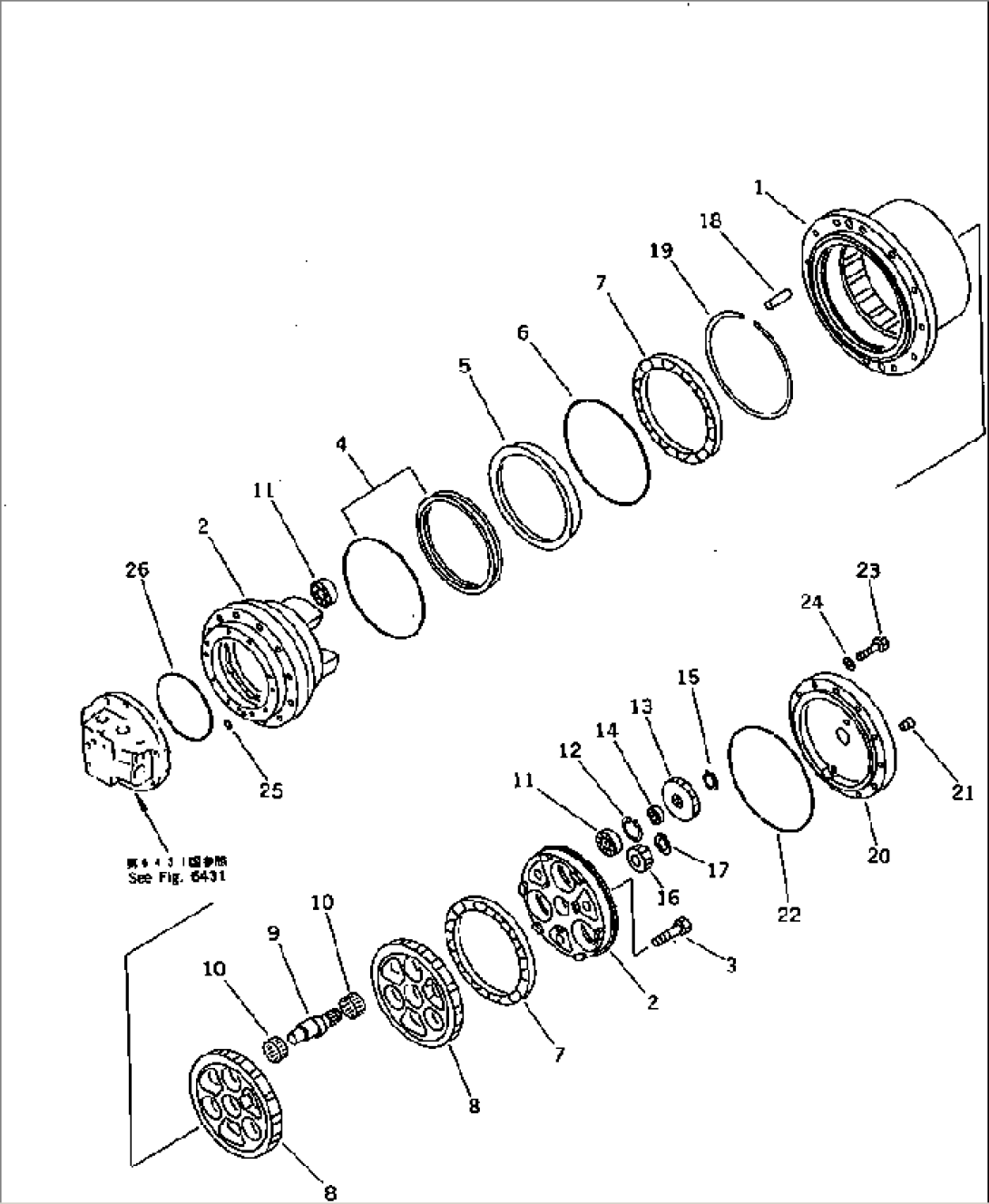

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6431 TO 6433. | ||||
| 1 | (\7\TZ220B1001-00) | HUB | 1001- | |
| (\7\TZ220B1102-03) | SPINDLE KIT | 1001- | ||
| 2 | (\7\TZ220B1132-03) | SPINDLE ASS'Y | 1001- | |
| 3 | TZ200B1019-02 | BOLT,REAMER | 1001- | |
| 4 | TZES100-250-A | SEAL,FLOATING (K1) | 1001- | |
| 5 | TZ150F1027-01 | PIECE,DISTANCE | 1001- | |
| 6 | 07000-15280 | O-RING (K1) | 1001- | |
| 7 | TZ200B1021-00 | BEARING | 1001- | |
| (\7\TZ200B1104-02) | RV GEAR ASS'Y | 1001- | ||
| 8 | (\7\TZ200B1204-01) | RV GEAR KIT (2PIS) | 1001- | |
| 9 | (\7\TZ200B1009-01) | SHAFT,CRANK | 1001- | |
| 10 | (\7\TZ200B1023-00) | BEARING | 1001- | |
| 11 | (\7\TZ200B1022-00) | BEARING | 1001- | |
| 12 | (\7\TZ150A1020-00) | SNAP RING KIT (12KINDS) | 1001- | |
| 13 | TZ220B1107-00 | SPUR GEAR KIT (3PIS) | 1001- | |
| 14 | TZ200B1014-01 | PIECE,DISTANCE | 1001- | |
| 15 | 04064-03515 | RING,SNAP | 1001- | |
| 16 | TZ220B1006-00 | GEAR,INPUT | 1001- | |
| 17 | 04064-02815 | RING,SNAP | 1001- | |
| 18 | TZ200B1017-00 | PIN | 1001- | |
| 19 | TZ700C1016-00 | RING | 1001- | |
| 20 | TZ200B1008-00 | COVER | 1001- | |
| 21 | TZGM1-2 | PLUG | 1001- | |
| 22 | TZARP568-378-9 | O-RING (K1) | 1001- | |
| 23 | 01010-31245 | BOLT | 1001- | |
| 24 | TZSW-M12 | WASHER | 1001- | |
| 25 | 07000-11008 | O-RING (K1) | 1001- | |
| 26 | TZJW1516-G41-9 | O-RING (K1) | 1001- | |
| SERVICE KIT | ||||
| TZ205B9000-00 | SERVICE KIT | 1001- | ||
| TZSUN-2BG170 | RING | 1001- | ||
| 07000-15170 | O-RING | 1001- | ||
| 07000-15145 | O-RING | 1001- | ||
| TZ231F2023-00 | RING | 1001- | ||
| TZTCN-32-52-11 | SEAL | 1001- | ||
| 07000-11009 | O-RING | 1001- | ||
| 07000-13032 | O-RING | 1001- | ||
| 07000-11006 | O-RING | 1001- | ||
| 07000-12020 | O-RING | 1001- | ||
| 07000-13032 | O-RING | 1001- | ||
| 07000-12020 | O-RING | 1001- | ||
| 07002-02034 | O-RING | 1001- | ||
| TZES100-250-A | SEAL,FLOATING | 1001- | ||
| 07000-15280 | O-RING | 1001- | ||
| TZARP568-378-9 | O-RING | 1001- | ||
| 07000-11008 | O-RING | 1001- | ||
| TZJW1516-G41-9 | O-RING | 1001- |
