| Item | Part No. | Part Name | Qty | Serial No. |
| (201-60-61100) | TRAVEL MOTOR ASS'Y | 28001- | ||

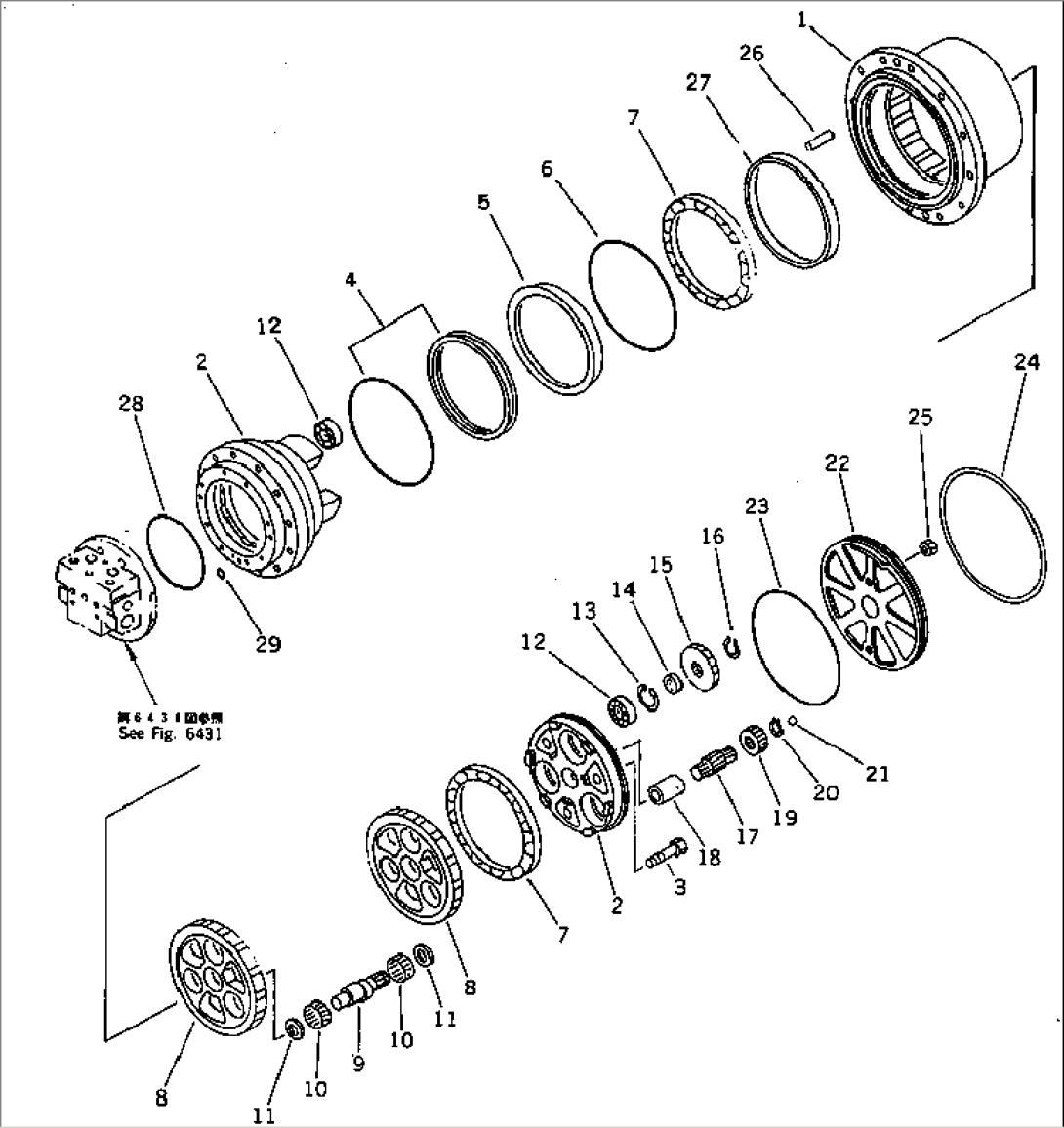

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6431 TO 6433. | ||||
| 1 | (\7\TZ810B1001-00) | HUB | 28001- | |
| (\7\TZ910B1102-00) | SPINDLE KIT | 28001- | ||
| 2 | (\7\TZ910B1132-00) | SPINDLE ASS'Y | 28001- | |
| TZMB700-060 | PLUG | 28001- | ||
| 3 | TZ910B1019-00 | BOLT,REAMER | 28001- | |
| TZ192-230-30-B | FLOATING SEAL ASS'Y (K1) | 28001- | ||
| 4 | (\7\TZES100-192-B) | SEAL,FLOATING | 28001- | |
| 5 | (\7\TZ861A1010-00) | PIECE,DISTANCE | 28001- | |
| 6 | 07000-15230 | O-RING (K1) | 28001- | |
| 7 | (\7\TZ810B1021-00) | BEARING | 28001- | |
| (\7\TZ910B1104-00) | RV GEAR ASS'Y | 28001- | ||
| 8 | \6\ | RV GEAR | 28001- | |
| 9 | (\7\TZ910B1009-00) | SHAFT,CRANK | 28001- | |
| 10 | (\7\TZ910B1023-00) | BEARING | 28001- | |
| 11 | (\7\TZ910B1012-00) | SPACER | 28001- | |
| 12 | (\7\TZ860A1022-00) | BEARING | 28001- | |
| 13 | (\7\TZ860A1013-00) | SNAP RING SET (12KINDS) | 28001- | |
| 14 | TZ800B1014-00 | PIECE,DISTANCE | 28001- | |
| 15 | TZ900B1107-00 | SPUR GEAR KIT (3PIS) | 28001- | |
| 16 | 04064-02512 | RING,SNAP | 28001- | |
| 17 | TZ910B1016-00 | SHAFT | 28001- | |
| 18 | TZ800A1015-00 | JOINT | 28001- | |
| 19 | TZ900B1006-00 | GEAR,INPUT | 28001- | |
| 20 | TZJB2804-S19 | RING,SNAP | 28001- | |
| 21 | 04260-00952 | BALL | 28001- | |
| 22 | TZ810B1008-00 | COVER | 28001- | |
| 23 | TZJW1516-P74-9 | O-RING (K1) | 28001- | |
| 24 | TZ810B1018-00 | RING | 28001- | |
| 25 | TZGM3-8 | PLUG | 28001- | |
| 26 | TZ810B1017-00 | PIN | 28001- | |
| 27 | TZ810B1020-00 | COLLAR | 28001- | |
| 28 | TZJW1516-G35-9 | O-RING (K1) | 28001- | |
| 29 | 07000-11007 | O-RING (K1) | 28001- | |
| SERVICE KIT | ||||
| TZ910B9000-00 | SEAL KIT | 28001- | ||
| TZ15Z-22-42-10 | SEAL,OIL | 28001- | ||
| TZSUN-2WG28 | RING,BACK-UP | 28001- | ||
| 07000-12140 | O-RING | 28001- | ||
| TZJB2401-P26-9 | O-RING | 28001- | ||
| TZSUN-2BG140 | RING,BACK-UP | 28001- | ||
| 07000-11009 | O-RING | 28001- | ||
| TZJB2401-P26-9 | O-RING | 28001- | ||
| 07000-11008 | O-RING | 28001- | ||
| 07000-12018 | O-RING | 28001- | ||
| 07000-12016 | O-RING | 28001- | ||
| 07002-02034 | O-RING | 28001- | ||
| TZ192-230-30-B | FLOATING SEAL ASS'Y | 28001- | ||
| 07000-15230 | O-RING | 28001- | ||
| TZJW1516-P74-9 | O-RING | 28001- | ||
| TZJW1516-G35-9 | O-RING | 28001- | ||
| 07000-11007 | O-RING | 28001- |
