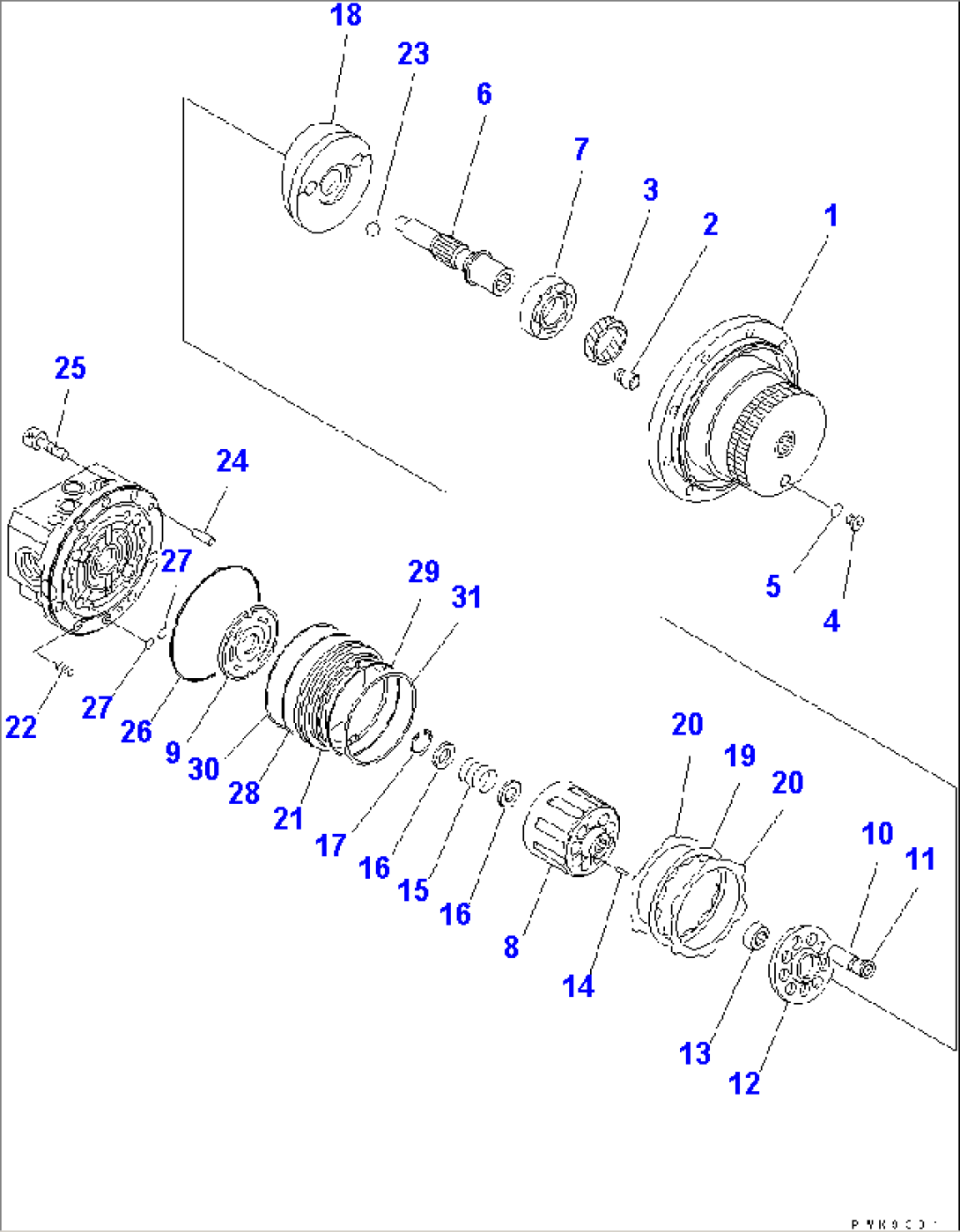

| Item | Part No. | Part Name | Qty | Serial No. |
| (22M-60-11132) | TRAVEL MOTOR ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A0, 02A0 AND 03A0. | ||||
| (FUPMV-2B-2918B) | MOTOR ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-02A0 AND Y1651-03A0. | ||||
| FUMHB-2-4656 | BODY SUB ASS'Y | 1001- | ||
| 1 | \6\ | BODY | 1001- | |
| 2 | \6\ | PISTON | 1001- | |
| 3 | FUSCJY305210 | SEAL,OIL | 1001- | |
| 4 | FUFZS-2448-28 | PLUG | 1001- | |
| 5 | FUP8-90 | O-RING | 1001- | |
| FUMHSH-1-2412 | SHAFT SUB ASS'Y | 1001- | ||
| 6 | \6\ | SHAFT | 1001- | |
| 7 | 06000-06206 | BEARING | 1001- | |
| FUMHCB-1-2805 | CYLINDER BARREL A. | 1001- | ||
| 8 | \6\ | CYLINDER | 1001- | |
| 9 | FUFZS-2412-05 | PLATE | 1001- | |
| 10 | \6\ | PISTON | 1001- | |
| 11 | \6\ | SHOE | 1001- | |
| 12 | FUPS66-102100 | HOLDER,SHOE | 1001- | |
| 13 | FUPS67-102001 | HOLDER,BARREL | 1001- | |
| 14 | FUPS35-102000 | NEEDLE | 1001- | |
| 15 | FUFZS-2632-15 | SPRING | 1001- | |
| 16 | FUFZS-2620-22 | RETAINER | 1001- | |
| 17 | 04065-03515 | RING,SNAP | 1001- | |
| 18 | FUFZD-4656-110 | PLATE | 1001- | |
| 19 | FUFZD-4671-26 | DISK | 1001- | |
| 20 | FUFZS-2632-27 | PLATE | 1001- | |
| 21 | FUFZS-2805-54 | PISTON,BRAKE | 1001- | |
| 22 | FUFZS-2817-29B | SPRING | 1001- | |
| 23 | FUYB-5-8 | BALL | 1001- | |
| 24 | FUPP-H7-8-15 | PIN | 1001- | |
| 25 | FUTH-10-25 | BOLT | 1001- | |
| 26 | FUG135-90 | O-RING | 1001- | |
| 27 | FUP7-90 | O-RING | 1001- | |
| 28 | FUG125-90 | O-RING | 1001- | |
| 29 | FUG115-90 | O-RING | 1001- | |
| 30 | FURB0-G125 | RING | 1001- | |
| 31 | FURB0-G115 | RING | 1001- |
