| Item | Part No. | Part Name | Qty | Serial No. |
| (201-60-73101) | TRAVEL MOTOR ASS'Y | 53513-58727 | ||
| (201-60-73100) | TRAVEL MOTOR ASS'Y | 52374-53512 | ||
| (201-60-71100) | TRAVEL MOTOR ASS'Y | 45001-52373 | ||

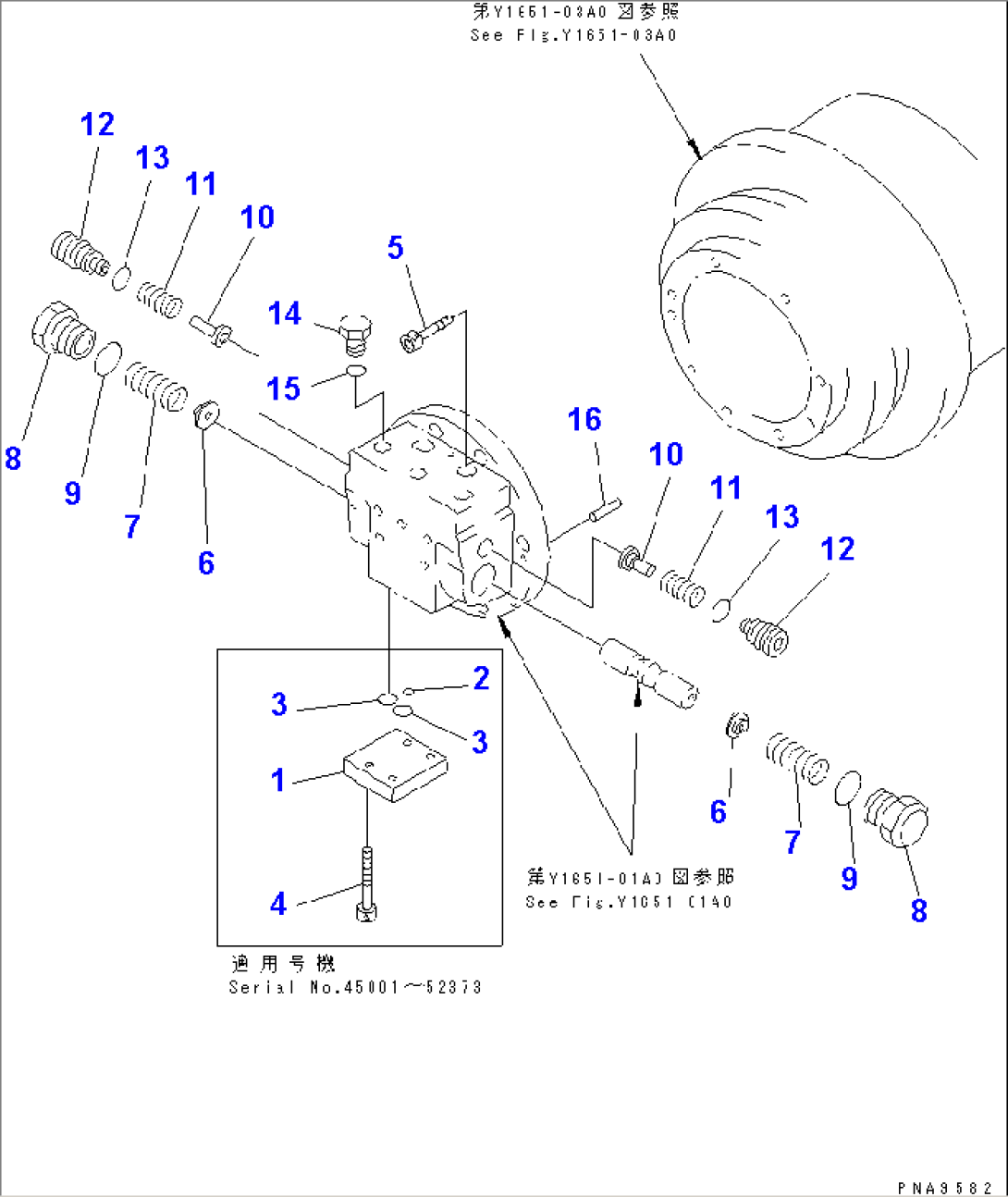

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1651-01A0 TO Y1651-03A0. | ||||
| (TZ979B200000FG) | MOTOR ASS'Y | 53513-58727 | ||
| (TZ971B200000FG) | MOTOR SUB ASS'Y | 52374-53512 | ||
| (TZ922B200000JD) | MOTOR SUB ASS'Y | 45001-52373 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1651-01A0 AND Y1651-02A0. | ||||
| 1 | TZ811B2066-00 | PLATE | 45001-52373 | |
| 2 | 07000-11008 | O-RING (KIT) | 45001-52373 | |
| 3 | 07000-12018 | O-RING (KIT) | 45001-52373 | |
| 4 | 01252-30850 | BOLT | 45001-52373 | |
| 5 | 01252-31030 | BOLT | 45001-58727 | |
| 6 | TZ869A2052-00 | RETAINER | 45001-58727 | |
| 7 | TZ860A2056-00 | SPRING | 45001-58727 | |
| 8 | TZ860A2051-00 | PLUG | 45001-58727 | |
| 9 | TZJB2401-P26-9 | O-RING (KIT) | 45001-58727 | |
| 10 | TZ860A2054-01 | VALVE | 45001-58727 | |
| 11 | TZ860A2055-01 | SPRING | 45001-58727 | |
| 12 | TZ860A2053-02 | PLUG | 52374-58727 | |
| 12 | TZ860A2053-01 | PLUG | 45001-52373 | |
| 13 | 07000-12016 | O-RING (KIT) | 45001-58727 | |
| 14 | TZ100A2021-00 | PLUG | 45001-58727 | |
| 15 | 07002-02034 | O-RING (KIT) | 45001-58727 | |
| 16 | TZJB1354-8-25 | PIN | 45001-58727 | |
| SERVICE KIT | ||||
| K | (TZ971B9010-00) | SEAL KIT,TRAVEL MOTOR | 52374-58727 | |
| K | (TZ922B9000-00) | SEAL KIT,TRAVEL MOTOR | 45001-52373 |
