| Item | Part No. | Part Name | Qty | Serial No. |
| (708-7F-00020) | MOTOR ASS'Y | 53052- | ||
| (708-7F-00011) | MOTOR ASS'Y | 52974-53051 | ||
| (708-7F-00010) | MOTOR ASS'Y | 52278-52973 | ||

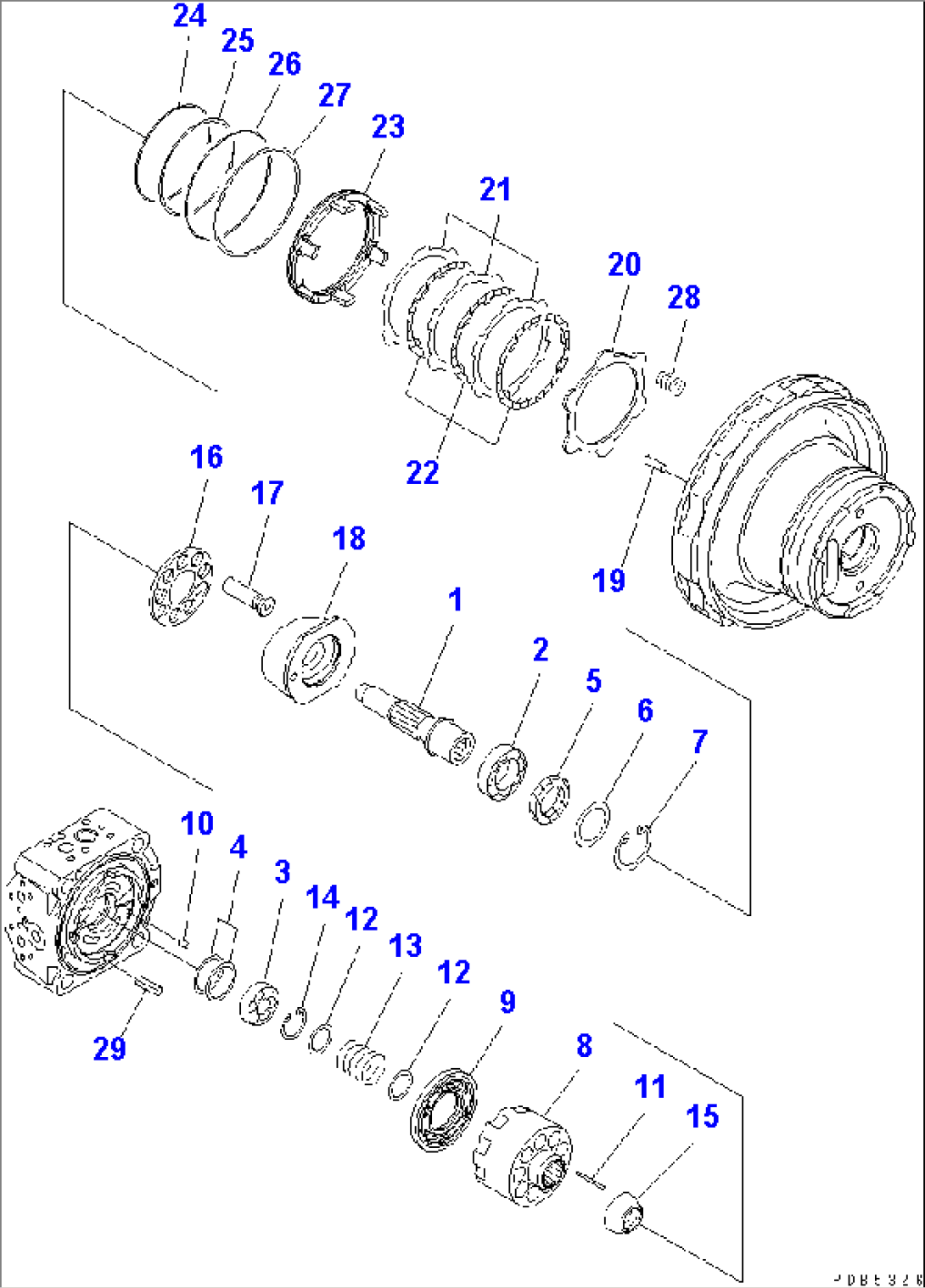

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1641-11A0 TO Y1641-13A0. | ||||
| 1 | (\7\708-8F-32110) | SHAFT | 52278- | |
| 2 | (\7\708-8F-12151) | BEARING | 52278- | |
| 3 | (\7\708-7L-12140) | BEARING | 52278- | |
| 4 | (\7\708-7L-05010) | SPACER KIT | 52278- | |
| 4 | \6\ | SPACER, 1.5MM | 52278- | |
| 4 | \6\ | SPACER, 1.6MM | 52278- | |
| 4 | \6\ | SPACER, 1.7MM | 52278- | |
| 4 | \6\ | SPACER, 1.8MM | 52278- | |
| 4 | \6\ | SPACER, 1.9MM | 52278- | |
| 4 | \6\ | SPACER, 2.0MM | 52278- | |
| 5 | 706-7G-11290 | SEAL,OIL | 52278- | |
| 6 | 708-8F-12230 | SPACER, 3.2MM | 52278- | |
| 7 | 04065-07225 | RING | 52278- | |
| 8 | \6\ | BLOCK,CYLINDER | 52278- | |
| 9 | \6\ | PLATE,VALVE | 52278- | |
| 10 | \6\ | PIN | 52278- | |
| 11 | (\7\708-8F-33360) | PIN | 52278- | |
| 12 | (\7\708-7L-13140) | SEAT | 52278- | |
| 13 | (\7\708-8F-33150) | SPRING | 52278- | |
| 14 | (\7\04065-04818) | RING,SNAP | 52278- | |
| 15 | (\7\708-8F-33350) | GUIDE,RETAINER | 52278- | |
| 16 | (\7\708-8F-33340) | RETAINER,SHOE | 52278- | |
| 17 | (\7\708-8F-33310) | PISTON SUB ASS'Y | 52278- | |
| 18 | (\7\708-7F-13410) | PLATE | 52278- | |
| 19 | (\7\04020-01228) | PIN | 52278- | |
| 20 | (\7\708-8F-35110) | PLATE | 52278- | |
| 21 | (\7\708-8F-35130) | PLATE | 52278- | |
| 22 | (\7\708-8F-35120) | DISC | 52278- | |
| 23 | (\7\708-8F-35140) | PISTON,BRAKE | 52278- | |
| 24 | (\7\708-8F-35160) | O-RING | 52278- | |
| 25 | (\7\708-8F-35170) | RING,BACK-UP | 52278- | |
| 26 | (\7\708-8F-35180) | O-RING | 52278- | |
| 27 | (\7\708-8F-35190) | RING,BACK-UP | 52278- | |
| 28 | (\7\708-8F-35150) | SPRING | 52278- | |
| 29 | (\7\04025-00324) | PIN,SPRING | 52278- |
