| Item | Part No. | Part Name | Qty | Serial No. |

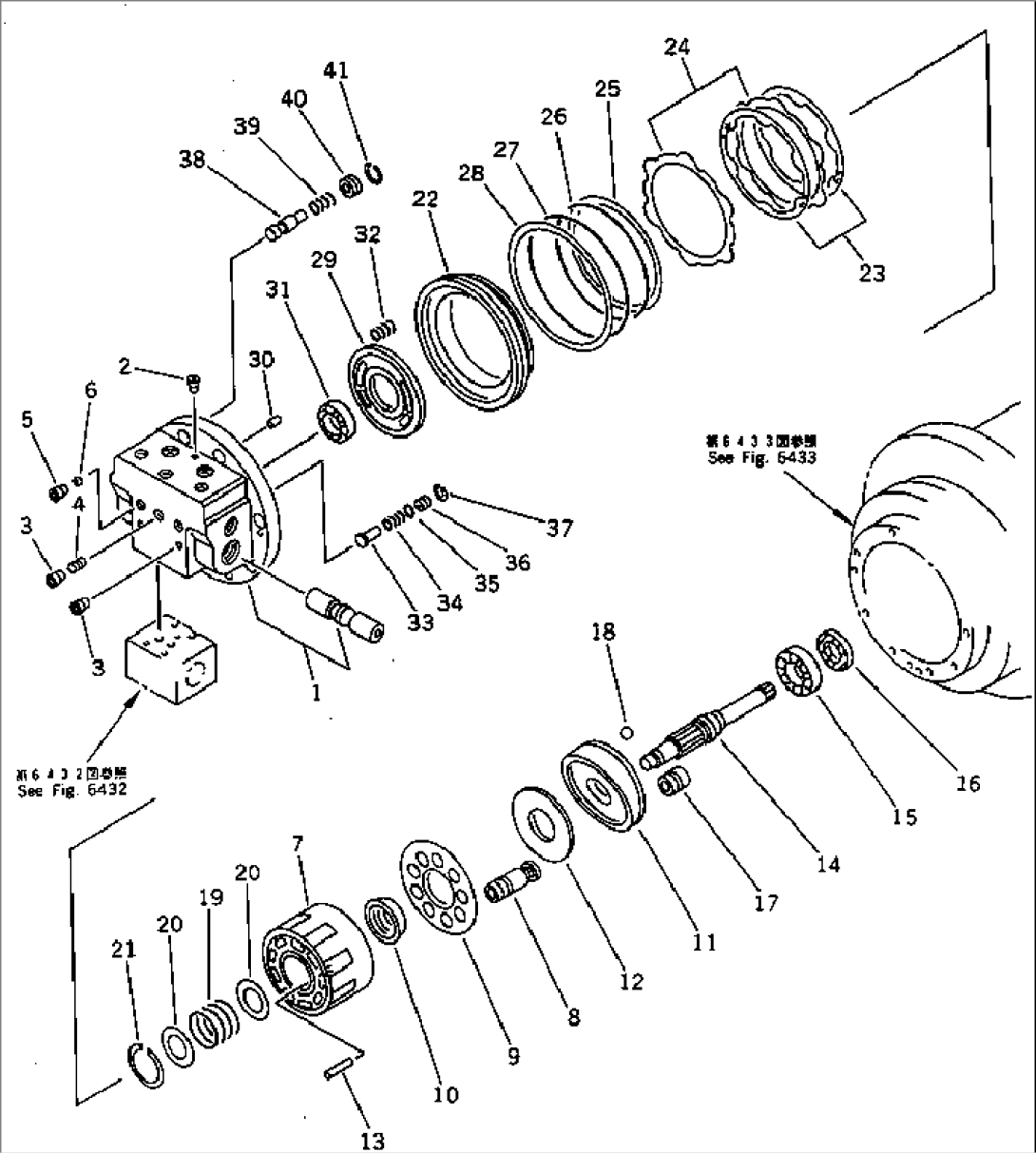

| 201-60-61100 | TRAVEL MOTOR ASS'Y | 28001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6431 TO 6433. | ||||
| 1 | TZ910B210100-A | FLANGE KIT,REAR | 28001- | |
| 2 | TZMB700-060 | PLUG | 28001- | |
| 3 | TZGM1-8 | PLUG | 28001- | |
| 4 | TZ121F2070-00 | ORIFICE | 28001- | |
| 5 | TZGM1-4 | PLUG | 28001- | |
| 6 | 04260-00793 | BALL | 28001- | |
| 7 | TZ810B2004-00 | BLOCK,CYLINDER | 28001- | |
| 8 | TZ810B2105-00 | PISTON KIT (9PIS) | 28001- | |
| 9 | TZ810B2007-00 | PLATE,RETAINER | 28001- | |
| 10 | TZ810B2008-00 | BOWL,THRUST | 28001- | |
| 11 | TZ910B200300-L | PLATE,SWASH | 28001- | |
| 12 | TZ800B2032-00 | PLATE,THRUST | 28001- | |
| 13 | TZJB150625-238 | PIN | 28001- | |
| 14 | TZ910B2002-00 | SHAFT | 28001- | |
| 15 | TZ880A2029-00 | BEARING | 28001- | |
| 16 | TZ15Z-22-42-10 | SEAL,OIL (K1) | 28001- | |
| 17 | TZ800B2070-01 | PISTON ASS'Y | 28001- | |
| 18 | TZJB1501-22 | BALL | 28001- | |
| 19 | TZ810B2014-00 | SPRING | 28001- | |
| 20 | TZ880A2010-00 | WASHER | 28001- | |
| 21 | TZIRTW-42 | RING | 28001- | |
| 22 | TZ880A2012-00 | PISTON | 28001- | |
| 23 | TZ800A2015-00 | PLATE | 28001- | |
| 24 | TZ800A2016-00 | PLATE | 28001- | |
| 25 | TZSUN-2WG28 | RING,BACK-UP (K1) | 28001- | |
| 26 | TZJW1516-G28-9 | O-RING (K1) | 28001- | |
| 27 | 07000-12140 | O-RING (K1) | 28001- | |
| 28 | TZSUN-2BG140 | RING,BACK-UP (K1) | 28001- | |
| 29 | TZ860A2009-01 | PLATE,TIMING | 28001- | |
| 30 | TZJB1354-4-10 | PIN | 28001- | |
| 31 | 06000-06203 | BEARING | 28001- | |
| 32 | TZ880A2013-00 | SPRING | 28001- | |
| 33 | TZ860A2019-00 | VALVE | 28001- | |
| 34 | TZ860A2020-01 | SPRING | 28001- | |
| 35 | 07000-11009 | O-RING (K1) | 28001- | |
| 36 | TZ860A2018-00 | SEAT | 28001- | |
| 37 | TZ100A2022-00 | RING | 28001- | |
| 38 | TZ200B2073-00 | VALVE | 28001- | |
| 39 | TZ300B2043-01 | SPRING | 28001- | |
| 40 | TZ300B2039-00 | STOPPER | 28001- | |
| 41 | TZ300B2042-00 | RING | 28001- |
