| Item | Part No. | Part Name | Qty | Serial No. |
| 22M-60-11132 | TRAVEL MOTOR ASS'Y | 1001- | ||

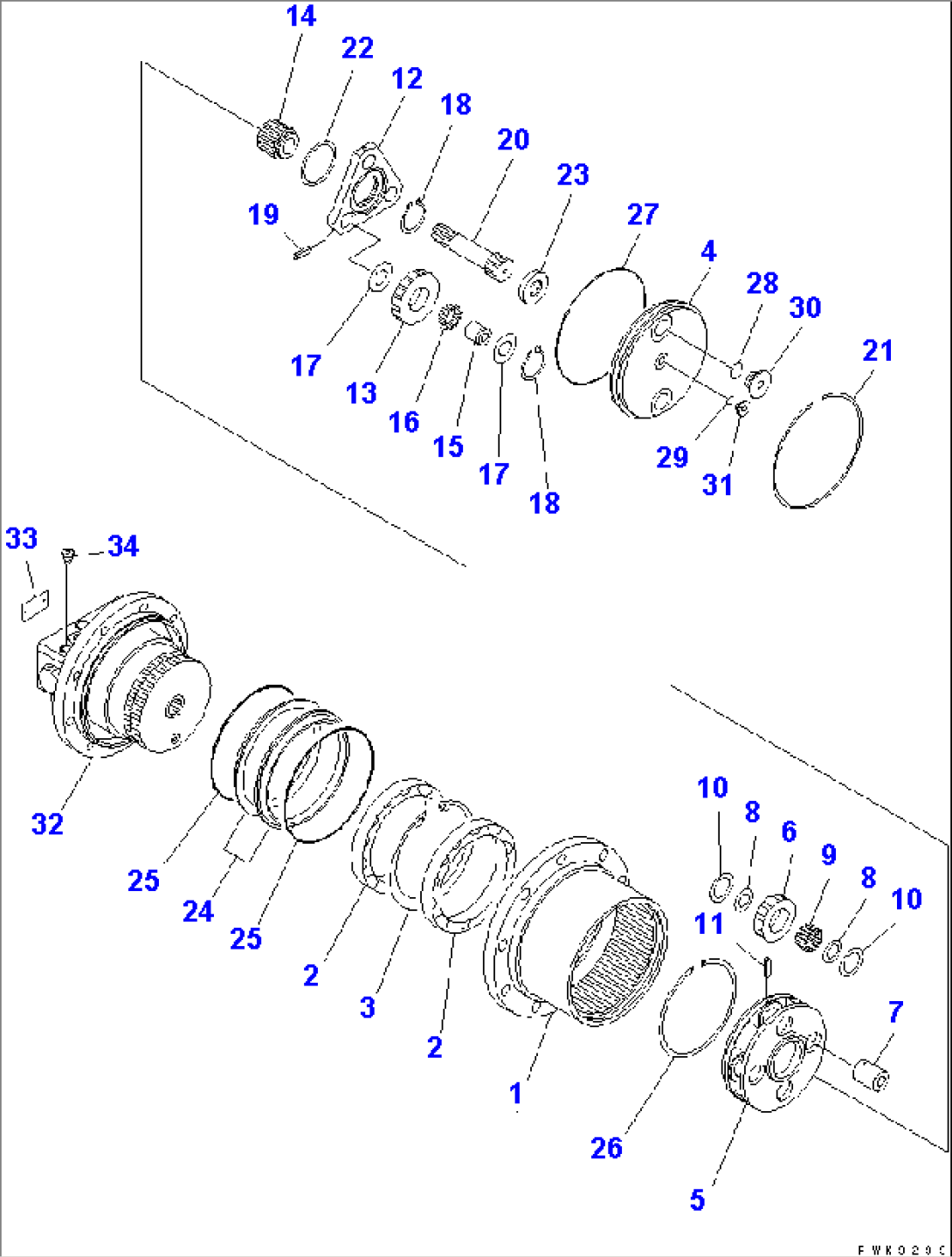

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A0, 02A0 AND 03A0. | ||||
| FUGHB50-1-8715 | BODY SUB ASS'Y | 1001- | ||
| 1 | \6\ | BODY | 1001- | |
| 2 | FU140BA18 | BEARING | 1001- | |
| 3 | \6\ | RING,SNAP | 1001- | |
| 4 | FUFZD-8322-02 | COVER | 1001- | |
| FUGHC50-1-8322 | CARRIER SUB ASS'Y | 1001- | ||
| 5 | \6\ | CARRIER | 1001- | |
| 6 | \6\ | GEAR | 1001- | |
| 7 | \6\ | PIN | 1001- | |
| 8 | \6\ | RING,RING | 1001- | |
| 9 | \6\ | NEEDLE | 1001- | |
| 10 | \6\ | THRUST WASHER | 1001- | |
| 11 | \6\ | PIN,SPRING | 1001- | |
| FUGHC50-2-8322 | CARRIER SUB ASS'Y | 1001- | ||
| 12 | \6\ | CARRIER | 1001- | |
| 13 | FUFZD-8322-07 | GEAR | 1001- | |
| 14 | FUFZD-8322-08 | GEAR | 1001- | |
| 15 | \6\ | PIN | 1001- | |
| 16 | FUFZD-8322-21 | NEEDLE | 1001- | |
| 17 | FUFRP-1078-21 | THRUST WASHER | 1001- | |
| 18 | FURA-35 | RING,SNAP | 1001- | |
| 19 | \6\ | PIN,SPRING | 1001- | |
| 20 | FUFZD-8322-09 | GEAR | 1001- | |
| 21 | FUFZD-8322-13 | RING,SNAP | 1001- | |
| 22 | FUAS5578 | THRUST WASHER | 1001- | |
| 23 | FUFZD-8322-16 | RING | 1001- | |
| 24 | FU180-27-11712 | SEAT | 1001- | |
| 25 | FU180-27-11720 | O-RING | 1001- | |
| 26 | FUFZD-8322-23 | RING,SNAP | 1001- | |
| 27 | FUR0A-264 | O-RING | 1001- | |
| 28 | FUP14-90 | O-RING | 1001- | |
| 29 | FUP8-90 | O-RING | 1001- | |
| 30 | FUFZD-8144-34 | PLUG | 1001- | |
| 31 | FUGPF-1-8 | PLUG | 1001- | |
| 32 | (FUPMV-2B-2918B) | MOTOR ASS'Y | 1001- | |
| 33 | \6\ | NAME PLATE | 1001- | |
| 34 | FUTPHA-1-4 | PLUG | 1001- |
