| Item | Part No. | Part Name | Qty | Serial No. |
| 708-8F-00120 | MOTOR ASS'Y | 15001- | ||

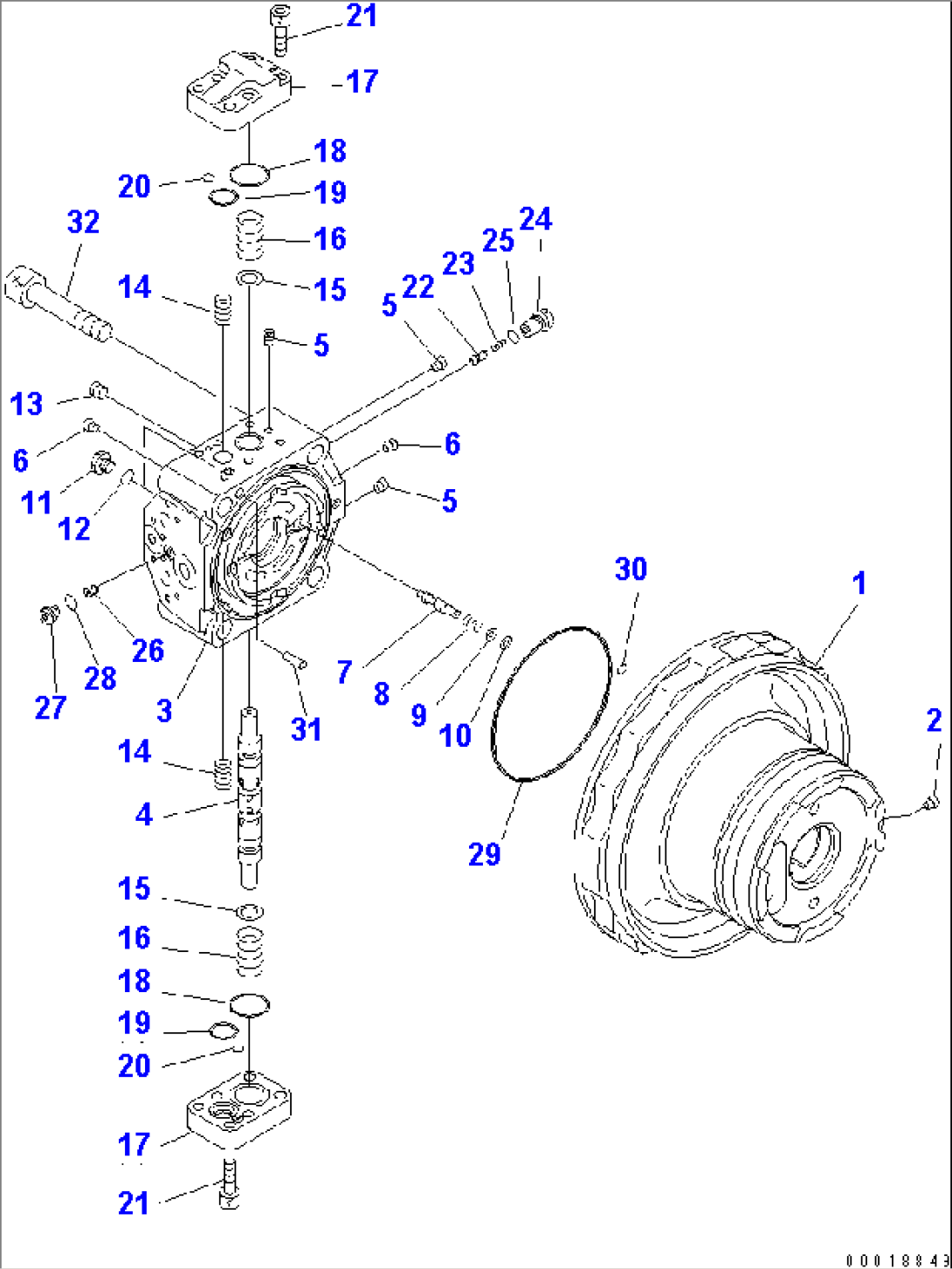

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1641-01A0 TO Y1641-03A0. | ||||
| (\7\708-8F-04640) | CASE SUB ASS'Y | 15001- | ||
| 1 | \6\ | CASE,MOTOR | 15001- | |
| 2 | \6\ | PLUG | 15001- | |
| (\7\708-8F-04621) | END COVER SUB ASS'Y | 15001- | ||
| 3 | \6\ | COVER,END | 15001- | |
| 4 | \6\ | SPOOL | 15001- | |
| 5 | \6\ | PLUG | 15001- | |
| 6 | \6\ | PLUG | 15001- | |
| 7 | \6\ | SPOOL | 15001- | |
| 8 | (\7\708-8F-34170) | SPRING | 15001- | |
| 9 | (\7\708-8H-34210) | SEAT | 15001- | |
| 10 | (\7\708-8H-34180) | RING | 15001- | |
| 11 | 708-8H-11530 | PLUG | 15001- | |
| 12 | 07002-11423 | O-RING | 15001- | |
| 13 | 20B-27-11210 | BLEEDER | 15001- | |
| 14 | 708-8F-36611 | SPRING | 15001- | |
| 15 | \6\ | RING | 15001- | |
| 16 | 708-8H-36121 | SPRING | 15001- | |
| 17 | 708-8F-36311 | COVER | 15001- | |
| 18 | 07000-13040 | O-RING | 15001- | |
| 19 | 700-93-11320 | O-RING | 15001- | |
| 20 | 07000-11009 | O-RING | 15001- | |
| 21 | 01252-61235 | BOLT | 15001- | |
| 22 | 708-8F-34120 | VALVE | 15001- | |
| 23 | 722-10-91130 | SPRING | 15001- | |
| 24 | 708-8F-34110 | PLUG | 15001- | |
| 25 | 07002-11823 | O-RING | 15001- | |
| 26 | 708-8E-16180 | VALVE | 15001- | |
| 27 | 708-8E-16160 | PLUG | 15001- | |
| 28 | 07002-11023 | O-RING | 15001- | |
| 29 | 708-8F-31610 | O-RING | 15001- | |
| 30 | 07000-11009 | O-RING | 15001- | |
| 31 | (\7\04020-01228) | PIN | 15001- | |
| 32 | 708-8F-31210 | BOLT | 15001- |
