| Item | Part No. | Part Name | Qty | Serial No. |
| 708-8F-00192 | MOTOR ASS'Y | 60262- | ||
| 708-8F-00191 | MOTOR ASS'Y | 60003-60261 | ||
| 708-8F-00190 | MOTOR ASS'Y | 60001-60002 | ||

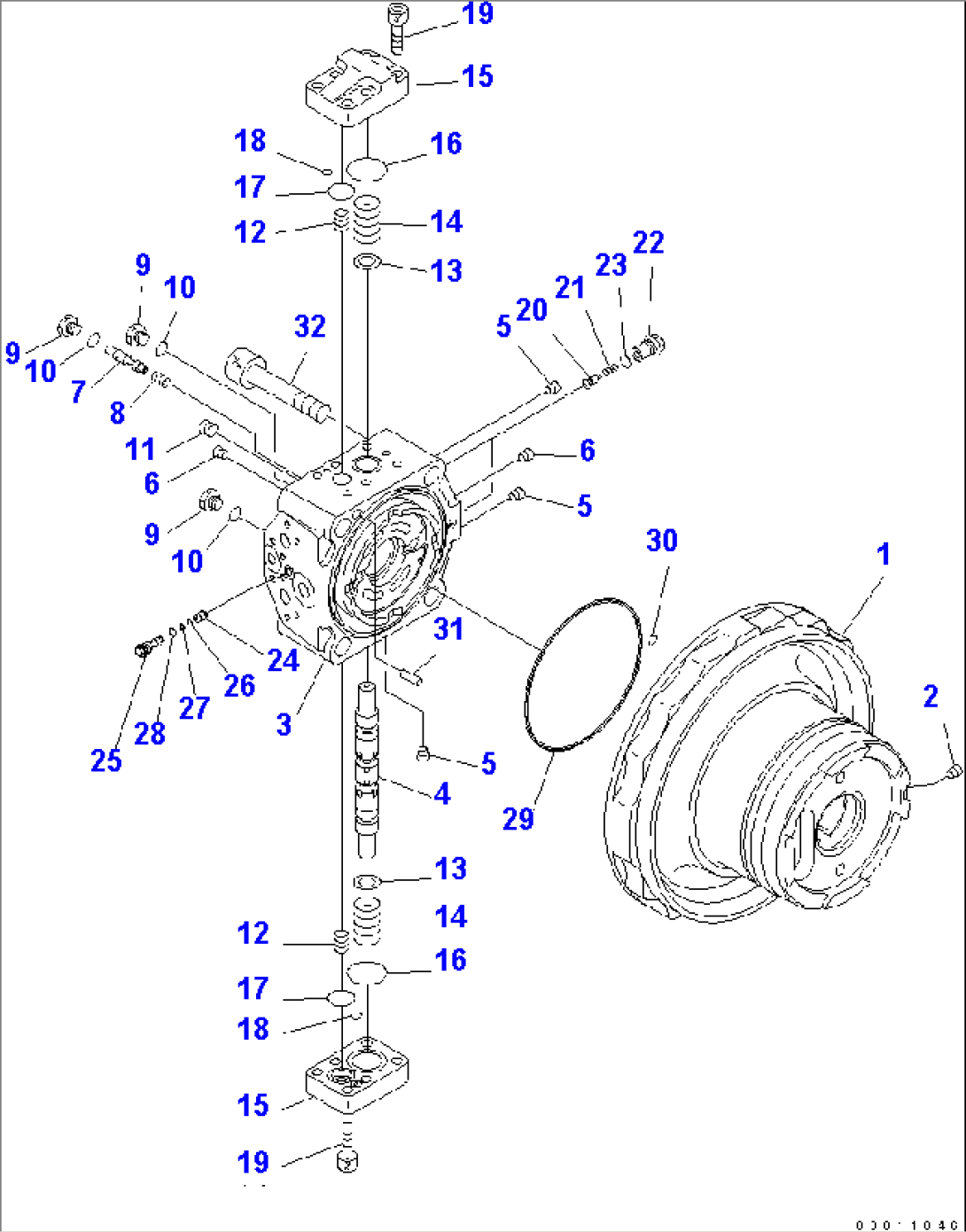

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1641-01A0 TO Y1641-03A0. | ||||
| (\7\708-8F-04660) | CASE SUB ASS'Y | 60001- | ||
| 1 | \6\ | CASE,MOTOR | 60001- | |
| 2 | \6\ | PLUG | 60001- | |
| (\7\708-8F-04192) | END COVER SUB ASS'Y | 60003- | ||
| (\7\708-8F-04190) | END COVER SUB ASS'Y | 60001-60002 | ||
| 3 | \6\ | COVER,END | 60003- | |
| 3 | \6\ | COVER,END | 60001-60002 | |
| 4 | \6\ | SPOOL | 60003- | |
| 4 | \6\ | SPOOL | 60001-60002 | |
| 5 | \6\ | PLUG | 60001- | |
| 6 | \6\ | PLUG | 60001- | |
| 7 | \6\ | SPOOL | 60001- | |
| 8 | (\7\708-8F-34220) | SPRING | 60001- | |
| 9 | 708-8H-11530 | PLUG | 60001- | |
| 10 | 07002-11423 | O-RING | 60001- | |
| 11 | 20B-27-11210 | BLEEDER | 60001- | |
| 12 | 708-8F-36611 | SPRING | 60001- | |
| 13 | \6\ | RING | 60001- | |
| 14 | 708-8H-36121 | SPRING | 60001- | |
| 15 | 708-8F-36311 | COVER | 60001- | |
| 16 | 07000-13040 | O-RING | 60001- | |
| 17 | 700-93-11320 | O-RING | 60001- | |
| 18 | 07000-11009 | O-RING | 60001- | |
| 19 | 01252-61235 | BOLT | 60001- | |
| 20 | 708-8F-34120 | VALVE | 60001- | |
| 21 | 722-10-91130 | SPRING | 60001- | |
| 22 | 708-8F-34110 | PLUG | 60001- | |
| 23 | 07002-11823 | O-RING | 60001- | |
| 24 | 708-8E-16180 | VALVE | 60001- | |
| 25 | 708-8F-31660 | PLUG | 60001- | |
| 26 | 07000-11006 | O-RING | 60001- | |
| 27 | 07001-01006 | RING | 60001- | |
| 28 | 07002-11223 | O-RING | 60001- | |
| 29 | 708-8F-31610 | O-RING | 60001- | |
| 30 | 07000-11009 | O-RING | 60001- | |
| 31 | (\7\04020-01228) | PIN | 60001- | |
| 32 | 708-8F-31210 | BOLT | 60001- |
