| Item | Part No. | Part Name | Qty | Serial No. |

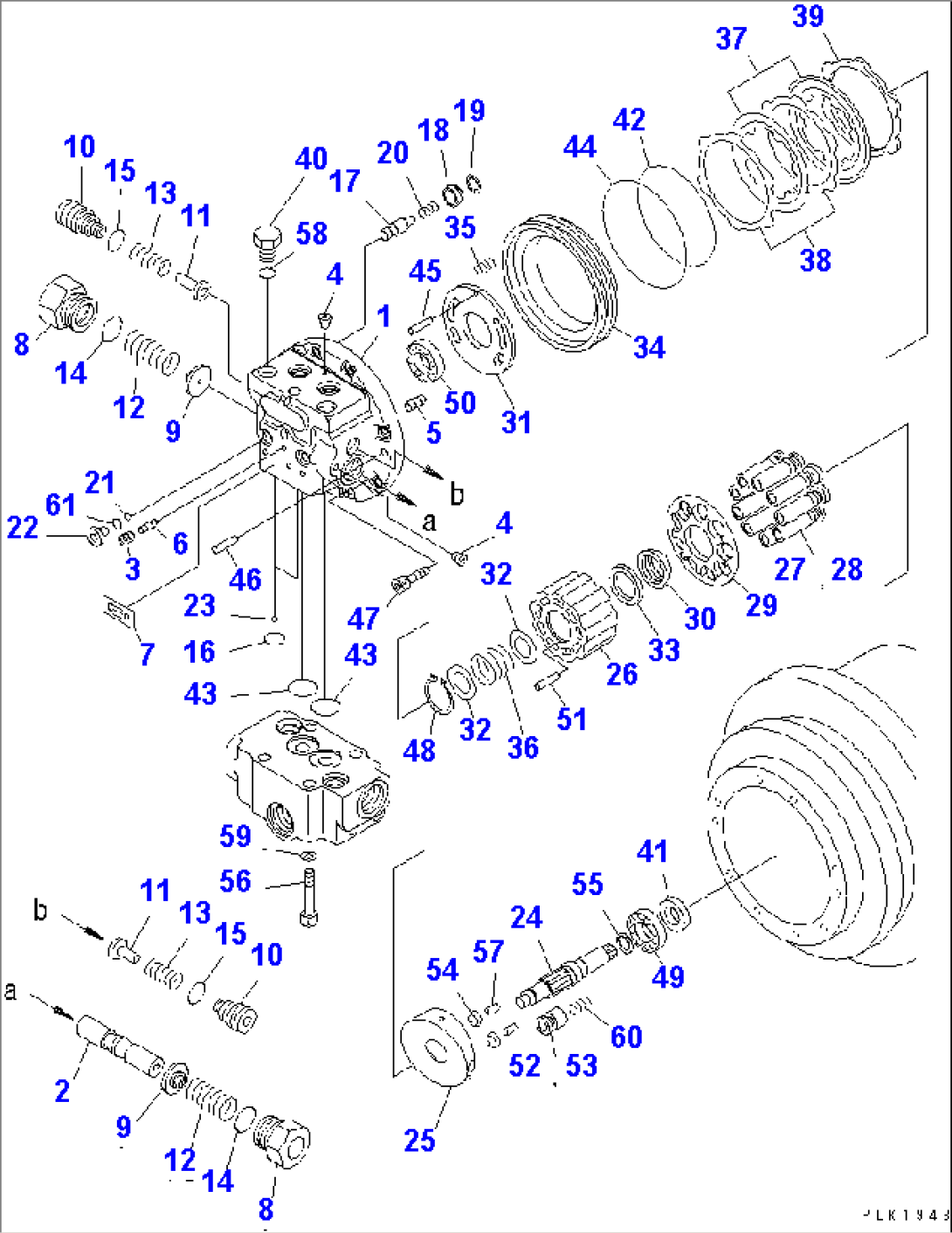

| 202-60-73102 | TRAVEL MOTOR ASS'Y | 40624-42156 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A0A¤ 02A0A AND 03A0A. | ||||
| TZ265B200000EP | MOTOR,HYDRAULIC | 40624-42156 | ||
| TZ266B2100-02 | FLANGE ASS'Y | 40624-42156 | ||
| 1 | TZ266B2101-02 | FLANGE KIT,REAR | 40624-42156 | |
| \6\ | FLANGE | 40624-42156 | ||
| \6\ | SPOOL | 40624-42156 | ||
| 2 | TZGM1-8 | PLUG | 40624-42156 | |
| 3 | TZGDL1-16-S | PLUG | 40624-42156 | |
| 4 | TZ263B2079-01 | FILTER | 41401-42156 | |
| TZ263B2079-00 | ORIFICE | 40624-41400 | ||
| 5 | TZ121F2070-00 | ORIFICE | 40624-42156 | |
| 6 | TZ850A0006-00 | PLATE¤ NAME | 40624-42156 | |
| 7 | TZ869A2052-00 | RETAINER | 40624-42156 | |
| 8 | TZ860A2056-00 | SPRING | 40624-42156 | |
| 9 | TZ860A2051-00 | PLUG | 40624-42156 | |
| 10 | TZJB2401-P26-9 | O-RING (K1) | 40624-42156 | |
| 11 | TZ860A2054-01 | VALVE | 40624-42156 | |
| 12 | TZ860A2055-01 | SPRING | 40624-42156 | |
| 13 | TZ860A2053-02 | PLUG | 40624-42156 | |
| 14 | 07000-12016 | O-RING (K1) | 40624-42156 | |
| 15 | TZ200B2073-00 | VALVE | 40624-42156 | |
| 16 | TZ300B2039-00 | STOPPER | 40624-42156 | |
| 17 | TZ300B2043-01 | SPRING | 40624-42156 | |
| 18 | TZ300B2042-00 | RING | 40624-42156 | |
| 19 | TZ512B2021-00 | PLUG | 40624-42156 | |
| 20 | 07000-12011 | O-RING (K1) | 40624-42156 | |
| 21 | 04260-00952 | BALL | 40624-42156 | |
| 22 | TZ263B2002-01 | SHAFT | 40624-42156 | |
| 23 | TZ263B2048-00 | BEARING,BALL | 40624-42156 | |
| 24 | TZ15Z-22-42-10 | SEAL,OIL (K1) | 40624-42156 | |
| 25 | TZ263B2014-00 | COLLAR | 40624-42156 | |
| 26 | TZ263B2004-04 | BLOCK,CYLINDER | 40624-42156 | |
| 27 | TZ263B2007-01 | PLATE,RETAINER | 40624-42156 | |
| 28 | TZ263B2105-00 | PISTON KIT (9 PIS) | 40624-42156 | |
| \6\ | PISTON ASS'Y | 40624-42156 | ||
| \6\ | PISTON | 40624-42156 | ||
| \6\ | SHOE | 40624-42156 | ||
| 29 | TZ263B200301-E | PLATE,SWASH | 40624-42156 | |
| 30 | TZ263B2008-00 | BOWL,THRUST | 40624-42156 | |
| 31 | TZ263B2070-00 | PISTON | 40624-42156 | |
| \6\ | PISTON | 40624-42156 | ||
| \6\ | SHOE | 40624-42156 | ||
| 32 | TZ263B2090-00 | SPRING | 40624-42156 | |
| 33 | TZ263B2076-02 | PIVOT | 40624-42156 | |
| 34 | TZ263B2077-01 | PIN | 40624-42156 | |
| 35 | TZ263B2011-03 | WASHER | 40624-42156 | |
| 36 | TZ263B2098-00 | PIN | 40624-42156 | |
| 37 | TZ263B2093-01 | SPRING | 40624-42156 | |
| 38 | TZ880A2010-00 | WASHER | 40624-42156 | |
| 39 | TZTH-R-42 | RING,SNAP | 40624-42156 | |
| 40 | TZ263B2009-01 | PLATE,TIMING | 40624-42156 | |
| 41 | TZ263B2049-00 | BEARING,BALL | 40624-42156 | |
| 42 | TZJB1354-10-25 | PIN | 40624-42156 | |
| 43 | TZ263B2074-00 | PLATE | 40624-42156 | |
| 44 | TZ800A2015-00 | PLATE | 40624-42156 | |
| 45 | TZ800A2016-00 | PLATE | 40624-42156 | |
| 46 | TZ266B2012-00 | PISTON | 40624-42156 | |
| 47 | TZ800A2013-00 | SPRING | 40624-42156 | |
| 48 | TZ266B2035-00 | O-RING | 40624-42156 | |
| 49 | TZ266B2039-00 | O-RING | 40624-42156 | |
| 50 | TZ100A2021-00 | PLUG | 40624-42156 | |
| 51 | 07002-02034 | O-RING | 40624-42156 | |
| 52 | 01252-31030 | BOLT | 40624-42156 | |
| 53 | TZJB1354-4-10 | PIN | 40624-42156 | |
| 54 | 07000-12018 | O-RING | 40624-42156 |
