| Item | Part No. | Part Name | Qty | Serial No. |
| (202-60-73102) | TRAVEL MOTOR ASS'Y | 40624-42156 | ||

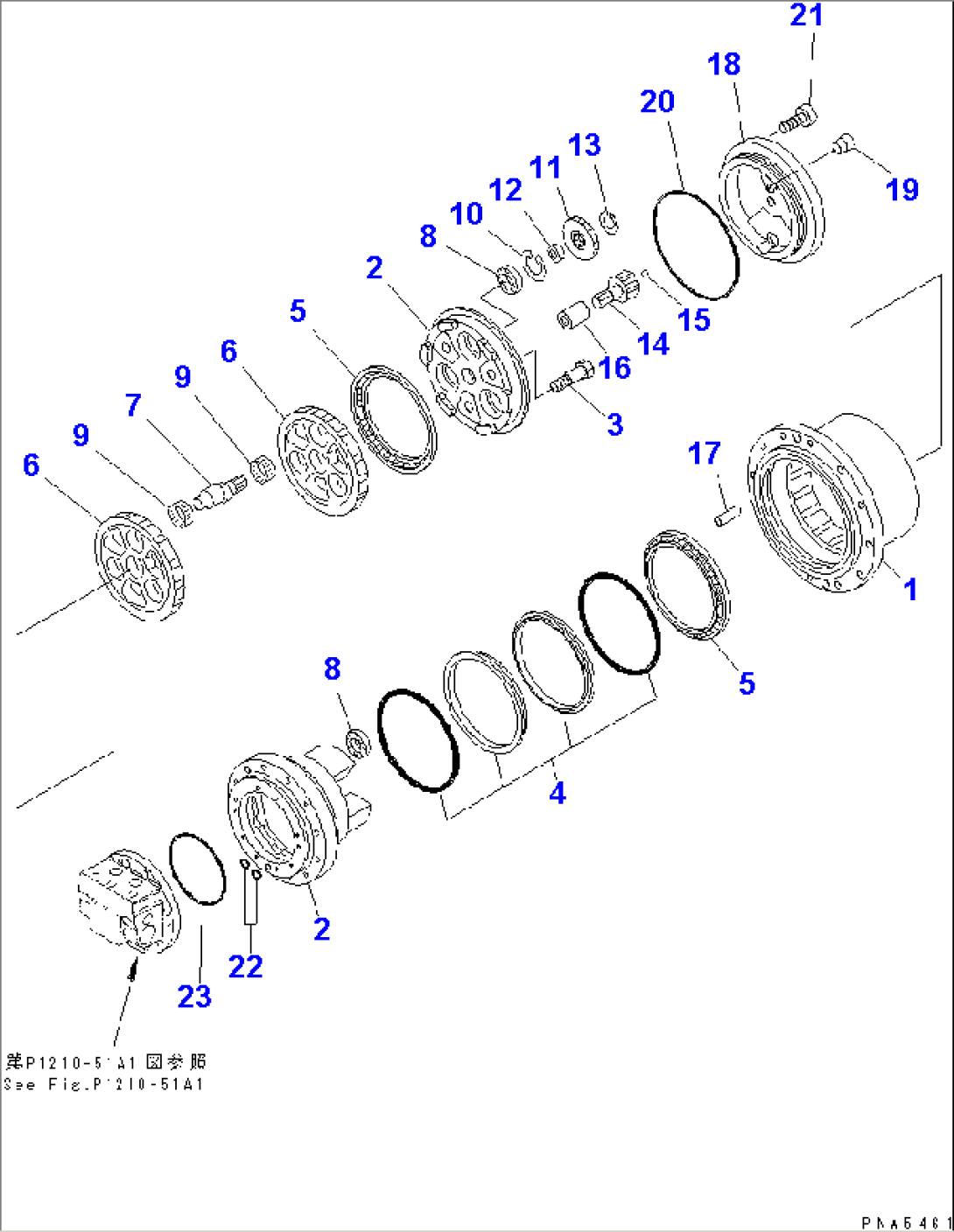

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A0A¤ 02A0A AND 03A0A. | ||||
| TZ265B1000-00 | FINAL DRIVE ASS'Y | 40624-42156 | ||
| 1 | (\7\TZ266B1001-00) | HUB | 40624-42156 | |
| (\7\TZ263B1102-01) | SPINDLE KIT | 40624-42156 | ||
| 2 | (\7\TZ263B1132-05) | SPINDLE ASS'Y | 40624-42156 | |
| \6\ | SPINDLE | 40624-42156 | ||
| \6\ | FLANGE | 40624-42156 | ||
| 3 | TZ200B1019-03 | BOLT,REAMER | 40624-42156 | |
| 4 | TZES100-250-A | SEAL,FLOATING (K1) | 40624-42156 | |
| 5 | (\7\TZ200B1021-00) | BEARING | 40624-42156 | |
| (\7\TZ263B1104-00) | RV GEAR ASS'Y | 40624-42156 | ||
| 6 | (\7\TZ263B1204-00) | RV GEAR KIT | 40624-42156 | |
| \6\ | GEAR | 40624-42156 | ||
| \6\ | GEAR | 40624-42156 | ||
| 7 | (\7\TZ200B1009-01) | SHAFT,CRANK | 40624-42156 | |
| 8 | (\7\TZ200B1022-00) | BEARING | 40624-42156 | |
| 9 | (\7\TZ200B1023-00) | BEARING | 40624-42156 | |
| 10 | (\7\TZ150A1020-00) | SNAP RING KIT (12 KINDS) | 40624-42156 | |
| 11 | TZ208B1107-00 | SPUR GEAR KIT (3 PIECES) | 40624-42156 | |
| \6\ | GEAR | 40624-42156 | ||
| 12 | TZ200B1014-01 | PIECE,DISTANCE | 40624-42156 | |
| 13 | 04064-03515 | RING,SNAP | 40624-42156 | |
| 14 | TZ265B1006-00 | GEAR,INPUT | 40624-42156 | |
| 15 | 04260-00952 | BALL,SNAP | 40624-42156 | |
| 16 | TZ800A1015-00 | JOINT | 40624-42156 | |
| 17 | TZ225B1017-00 | PIN | 40624-42156 | |
| 18 | TZ266B1008-00 | COVER | 40624-42156 | |
| 19 | TZGM1-2 | PLUG | 40624-42156 | |
| 20 | TZARP568-378-7 | O-RING (K1) | 40624-42156 | |
| 21 | TZJB1176M12-32 | BOLT | 40624-42156 | |
| 22 | 07000-11007 | O-RING (K1) | 40624-42156 | |
| 23 | TZJW1516-G37-7 | O-RING (K1) | 40624-42156 | |
| SERVICE KIT | ||||
| K-1 | TZ266B9000-00 | SERVICE KIT | 40624-42156 | |
| 07000-11007 | O-RING | 40624-42156 | ||
| TZARP568-378-7 | O-RING,BACK-UP | 40624-42156 | ||
| TZJW1516-G37-7 | O-RING | 40624-42156 | ||
| TZES100-250-A | SEAL,BACK-UP | 40624-42156 | ||
| TZ15Z-22-42-10 | SEAL,OIL | 40624-42156 | ||
| TZ266B2035-00 | O-RING | 40624-42156 | ||
| TZJB2401-P26-9 | O-RING | 40624-42156 | ||
| 07000-12016 | O-RING | 40624-42156 | ||
| 07000-12018 | O-RING | 40624-42156 | ||
| TZ266B2039-00 | O-RING | 40624-42156 | ||
| 07002-02034 | O-RING | 40624-42156 | ||
| 07000-12011 | O-RING | 40624-42156 | ||
| 07000-12014 | O-RING,FLOATING | 40624-42156 | ||
| 07000-12020 | O-RING | 40624-42156 | ||
| TZJB2407T2-P14 | RING | 40624-42156 | ||
| TZJB2407T3-P20 | RING | 40624-42156 |
