| Item | Part No. | Part Name | Qty | Serial No. |

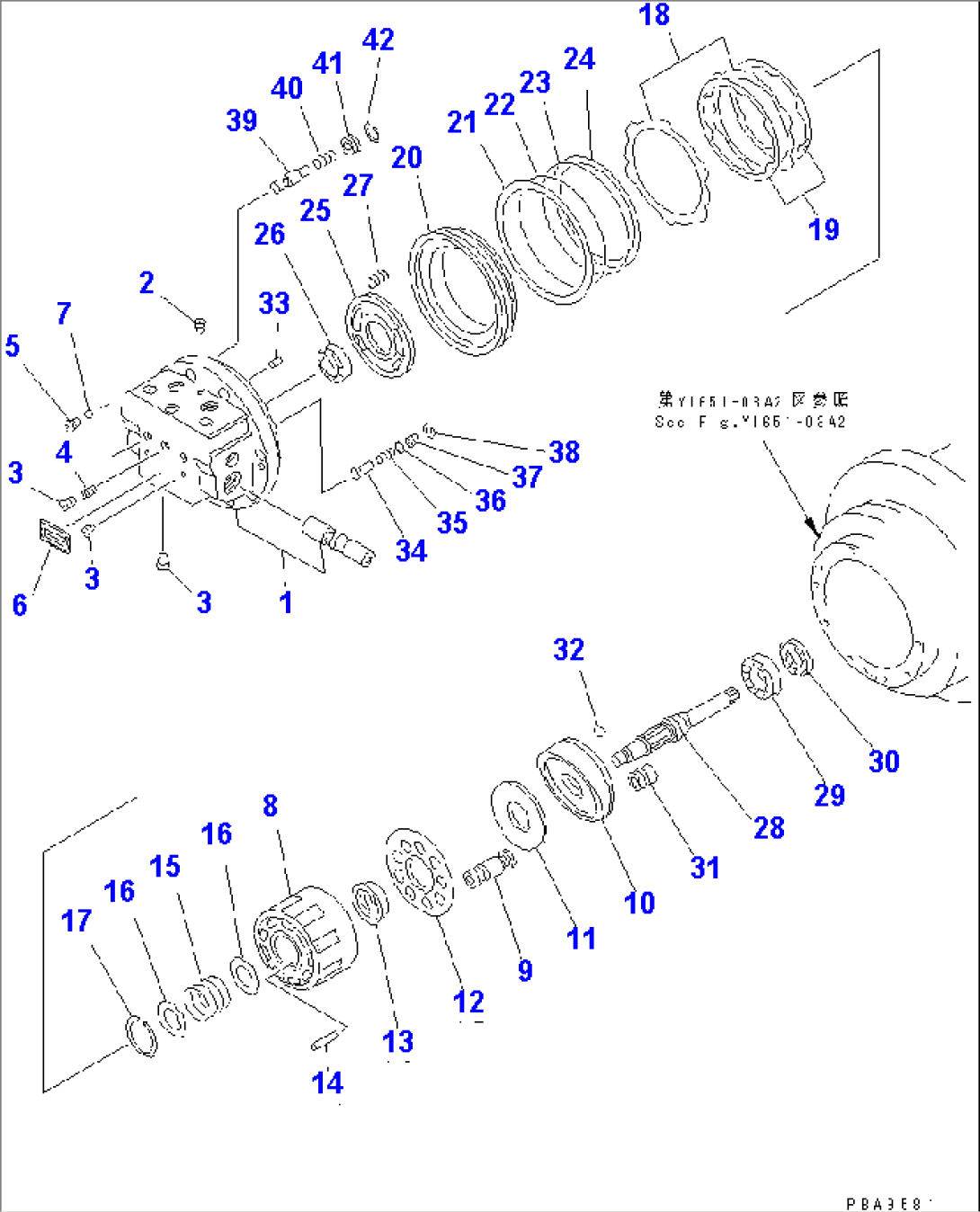

| 201-60-71800 | TRAVEL MOTOR ASS'Y | 45001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A2, 02A2 AND 03A2. | ||||
| TZ922B200001JD | MOTOR SUB ASS'Y | 45001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A3 AND Y1651-02A3. | ||||
| 1 | TZ922B210100-D | FLANGE KIT,REAR | 45001- | |
| 2 | TZMB700-060 | PLUG | 45001- | |
| 3 | TZGM1-8 | PLUG | 45001- | |
| 4 | TZ121F2070-00 | ORIFICE | 45001- | |
| 5 | TZGM1-4 | PLUG | 45001- | |
| 6 | TZ850A0006-00 | PLATE, NAME | 45001- | |
| 7 | 04260-00793 | BALL | 45001- | |
| 8 | TZ810B2004-00 | BLOCK,CYLINDER | 45001- | |
| 9 | TZ810B2105-00 | PISTON KIT (9 PIECES) | 45001- | |
| 10 | TZ910B200300-J | PLATE,SWASH | 45001- | |
| 11 | TZ800B2032-00 | PLATE,THRUST | 45001- | |
| 12 | TZ810B2007-00 | PLATE,RETAINER | 45001- | |
| 13 | TZ810B2008-00 | BOWL,THRUST | 45001- | |
| 14 | TZJB150625-238 | PIN | 45001- | |
| 15 | TZ810B2014-00 | SPRING | 45001- | |
| 16 | TZ880A2010-00 | WASHER | 45001- | |
| 17 | TZTH-R-42 | RING, SNAP,SNAP | 45001- | |
| 18 | TZ800A2016-00 | PLATE | 45001- | |
| 19 | TZ800A2015-00 | PLATE | 45001- | |
| 20 | TZ880A2012-00 | PISTON | 45001- | |
| 21 | TZSUN-3BG140 | RING,BACK-UP (KIT) | 45001- | |
| 22 | 07000-12140 | O-RING (KIT) | 45001- | |
| 23 | TZJW1516-G28-9 | O-RING (KIT) | 45001- | |
| 24 | TZSUN-3WG28 | RING,BACK-UP (KIT) | 45001- | |
| 25 | TZ860A2009-01 | PLATE,TIMING | 45001- | |
| 26 | 06000-06203 | BEARING | 45001- | |
| 27 | TZ880A2013-00 | SPRING | 45001- | |
| 28 | TZ910B2002-00 | SHAFT | 45001- | |
| 29 | TZ880A2029-00 | BEARING | 45001- | |
| 30 | TZ15Z-22-42-10 | SEAL,OIL (KIT) | 45001- | |
| 31 | TZ800B2070-01 | PISTON ASS'Y | 45001- | |
| 32 | TZJB1501-22 | BALL | 45001- | |
| 33 | TZJB1354-4-10 | PIN | 45001- | |
| 34 | TZ922B2019-00 | VALVE | 45001- | |
| 35 | TZ922B2020-00 | SPRING | 45001- | |
| 36 | 07000-11009 | O-RING (KIT) | 45001- | |
| 37 | TZ860A2018-00 | SEAT,VALVE | 45001- | |
| 38 | TZ100A2022-00 | RING | 45001- | |
| 39 | TZ200B2073-00 | VALVE | 45001- | |
| 40 | TZ300B2043-01 | SPRING | 45001- | |
| 41 | TZ300B2039-00 | STOPPER | 45001- | |
| 42 | TZ300B2042-00 | RING | 45001- | |
| SERVICE KIT | ||||
| K | TZ227B9000-00 | SEAL KIT,TRAVEL MOTOR | 45001- |
