| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 201-62-71170 | HOSE, 555MM | 45001-52373 | |
| 2 | 201-62-71180 | HOSE | 45001-52373 | |
| 3 | 07236-10522 | ELBOW | 45001-@ | |
| 4 | 201-62-71820 | JOINT | 45001-@ | |
| 5 | 201-62-71810 | JOINT | 45001-@ | |
| 6 | 07002-12434 | O-RING | 45001-@ |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc60 7 s/n 45001 up (with front blade spec.)
- Hydraulic system
- Travel line(#45001 52373)
Поиск по каталогу

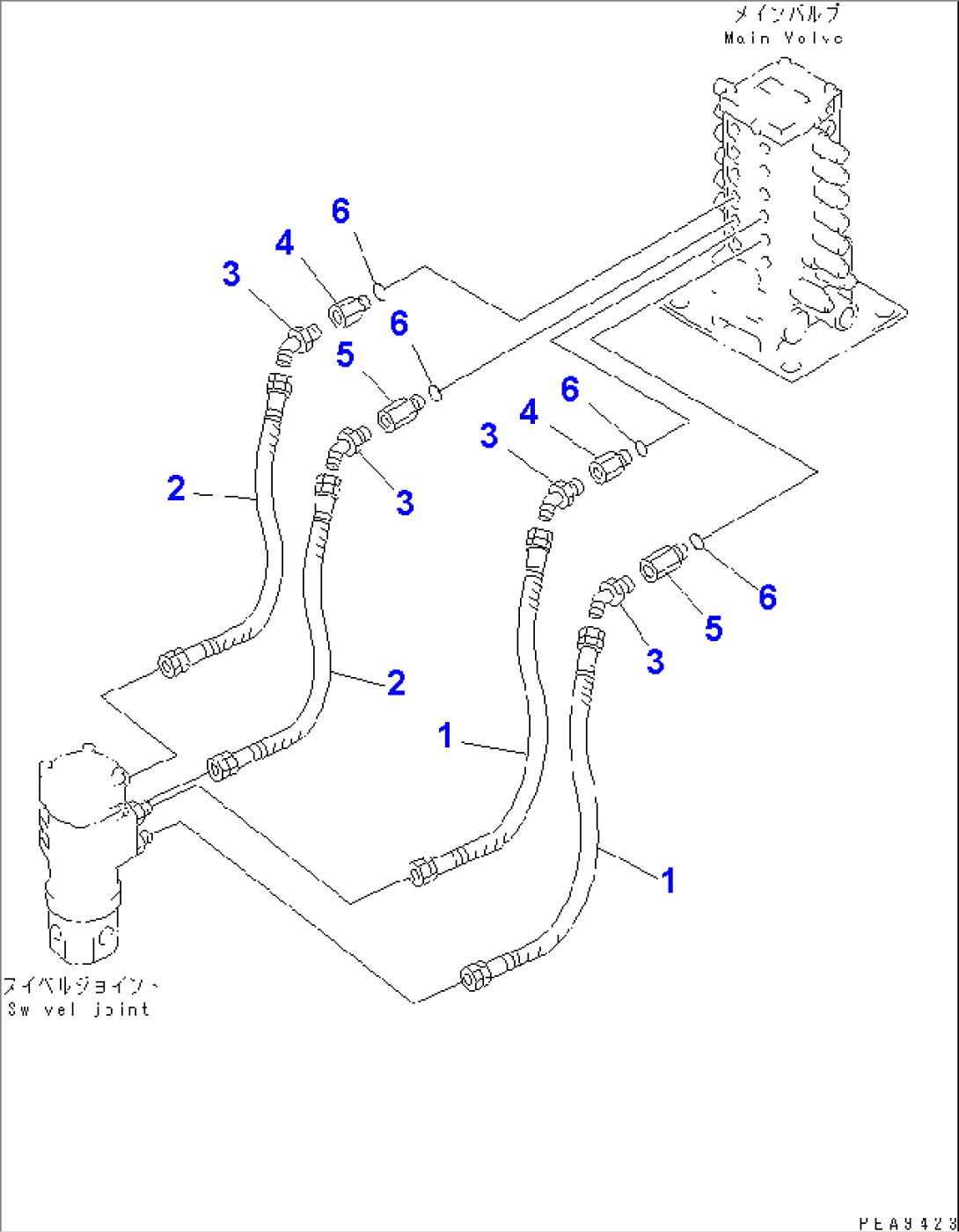

TRAVEL LINE(#45001-52373)
