| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 17M-15-51100 | TRANSMISSION ASS'Y | (102564)- | ||
| 17M-15-41100 | TRANSMISSION ASS'Y | 30001-(102563) | ||

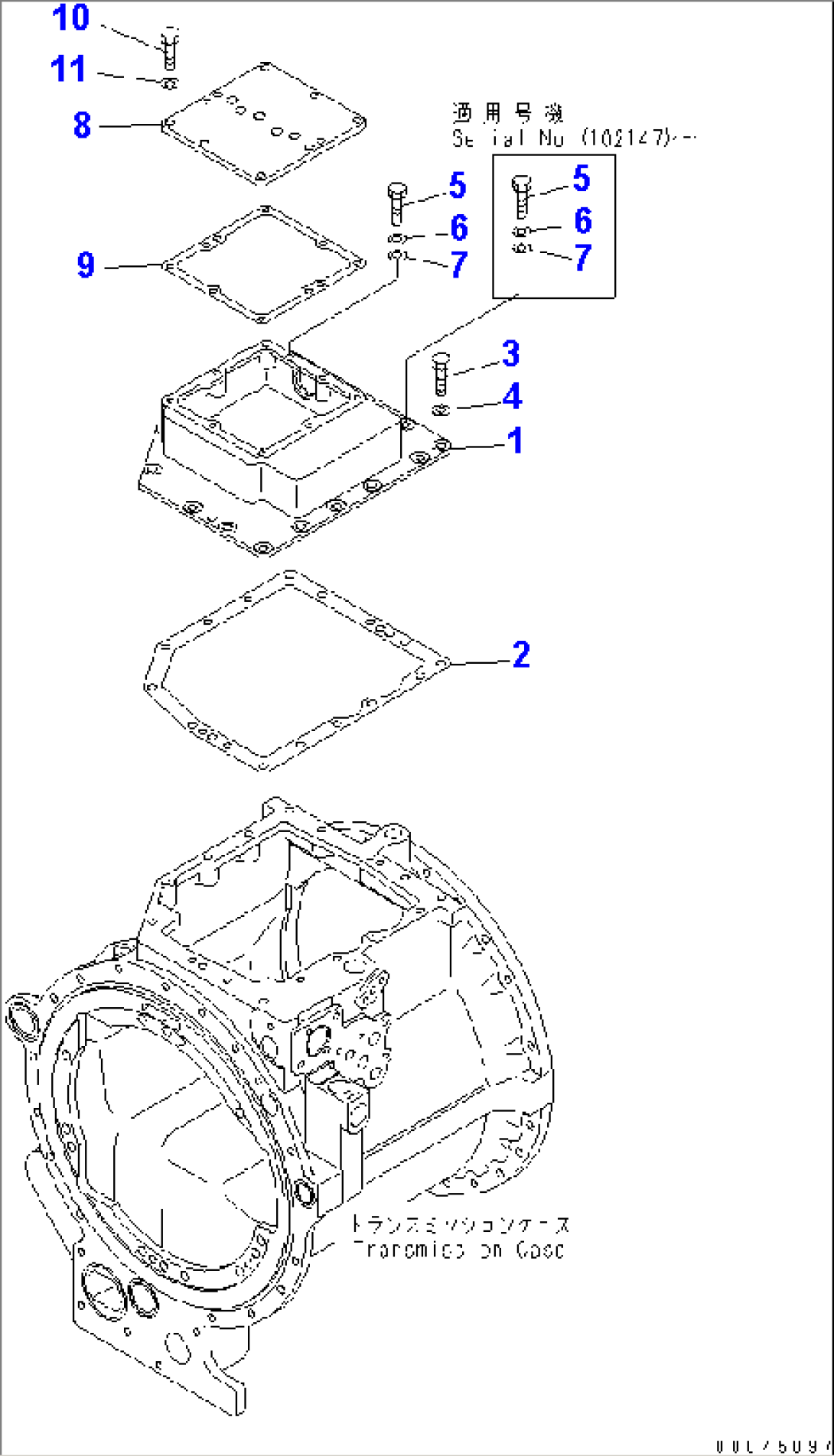

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51C0 TO F2320-63C0. | ||||
| 1 | 17M-15-45811 | COVER | 30001- | |
| 2 | 17A-15-25911 | GASKET (K2) | 30001- | |
| 3 | 01010-81230 | BOLT | (102147)- | |
| 3 | 01010-81230 | BOLT | 30001-(102146) | |
| 4 | 01643-31232 | WASHER | (102147)- | |
| 4 | 01643-31232 | WASHER | 30001-(102146) | |
| 5 | 01010-81235 | BOLT | (102147)- | |
| 5 | 01010-81235 | BOLT | 30001-(102146) | |
| 6 | 01643-31232 | WASHER | (102147)- | |
| 6 | 01643-31232 | WASHER | 30001-(102146) | |
| 7 | 01643-31232 | WASHER | (102147)- | |
| 7 | 01643-31232 | WASHER | 30001-(102146) | |
| 8 | 17A-15-41220 | COVER | 30001- | |
| 9 | 195-15-71230 | GASKET (K2) | 30001- | |
| 10 | 01010-81030 | BOLT | 30001- | |
| 11 | 01643-31032 | WASHER | 30001- |
