| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (714-23-20003) | TRANSMISSION ASS'Y | 53023- | ||
| (\0\714-23-20002) | TRANSMISSION ASS'Y | 51897-53022 | ||
| (714-23-20001) | TRANSMISSION ASS'Y | 51561-51896 | ||
| (714-23-20000) | TRANSMISSION ASS'Y | 51501-51560 | ||

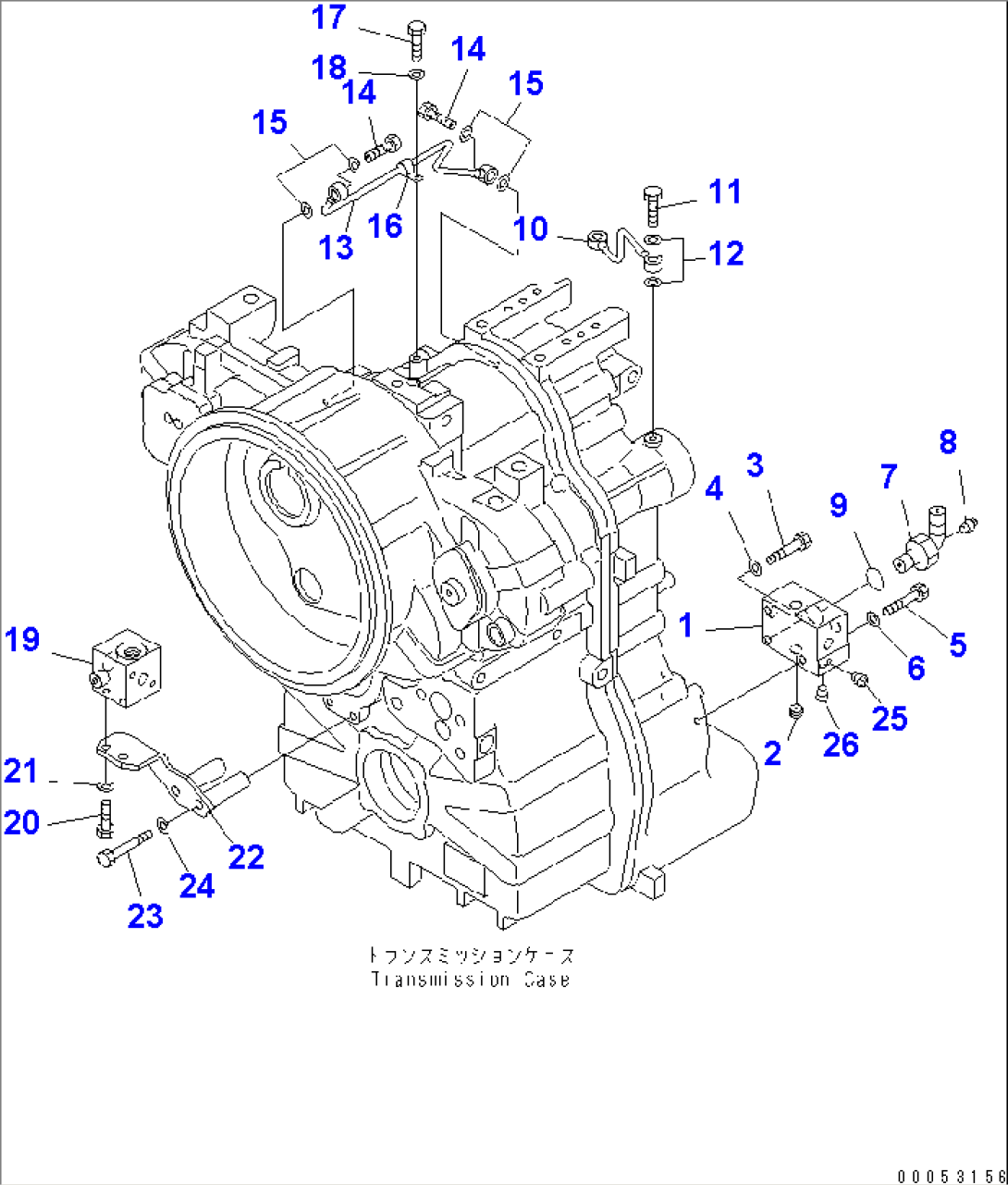

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F5350-51A0 TO F5350-71A0. | ||||
| 1 | 714-23-18312 | BLOCK | 51501- | |
| 2 | 714-23-17330 | PLUG | 51501- | |
| 3 | 01010-81085 | BOLT | 51501- | |
| 4 | 01643-31032 | WASHER | 51501- | |
| 5 | 01010-81075 | BOLT | 51501- | |
| 6 | 01643-31032 | WASHER | 51501- | |
| 7 | 21W-62-42640 | ELBOW | 51501- | |
| 8 | 07042-80108 | PLUG | 51501- | |
| 9 | 07002-63334 | O-RING (K3) | 51501- | |
| 10 | 714-23-18170 | TUBE | 51501- | |
| 11 | 07206-30710 | BOLT | 51501- | |
| 12 | 07005-01012 | SEAL, WASHER (K3) | 51501- | |
| 13 | 714-23-18192 | TUBE | 51501- | |
| 14 | 07206-31216 | JOINT | 51501- | |
| 15 | 07005-01612 | SEAL, WASHER (K3) | 51501- | |
| 16 | 04434-51210 | CLIP | 51501- | |
| 17 | 01010-81020 | BOLT | 51501- | |
| 18 | 01643-31032 | WASHER | 51501- | |
| 19 | 714-23-15160 | BLOCK | 51501- | |
| 20 | 01010-81030 | BOLT | 51501- | |
| 21 | 01643-31032 | WASHER | 51501- | |
| 22 | 714-23-18750 | BRACKET | 51501- | |
| 23 | 01011-81225 | BOLT | 51501- | |
| 24 | 01643-31232 | WASHER | 51501- | |
| 25 | 07042-80108 | PLUG | 51501- | |
| 26 | 07043-70108 | PLUG | 51501- |
