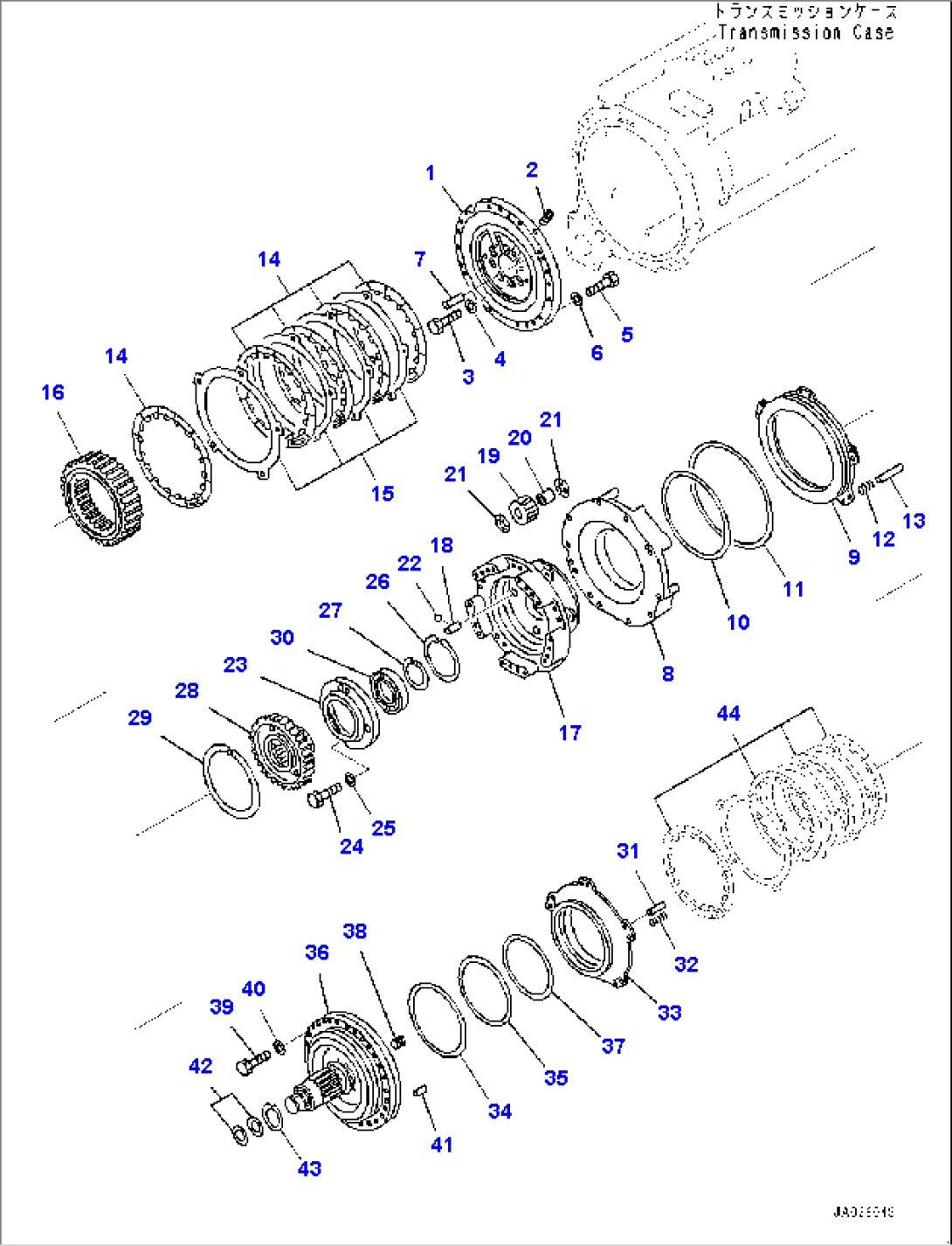

| Item | Part No. | Part Name | Qty | Serial No. |
| 23B-15-00062 | Transmission Assembly | 1001- | ||
| 23B-15-11020 | Transmission Assembly | 1001- | ||
| 1 | 23B-15-11130 | Housing | 1001- | |
| 2 | 07043-70211 | Plug | 1001- | |
| 3 | 01010-81025 | Bolt | 1001- | |
| 4 | 01643-51032 | Washer | 1001- | |
| 5 | 01010-81255 | Bolt | 1001- | |
| 6 | 103-15-11220 | Washer | 1001- | |
| 7 | 04020-01228 | Pin, Dowel | 1001- | |
| 8 | 23B-15-11120 | Housing | 1001- | |
| 9 | 23B-15-12750 | Piston | 1001- | |
| 10 | 567-15-12830 | Seal Ring, (Kit : K01) | 1001- | |
| 11 | 113-15-12870 | Seal Ring, (Kit : K01) | 1001- | |
| 12 | 562-15-16210 | Spring | 1001- | |
| 13 | 561-15-79750 | Pin | 1001- | |
| 14 | 23S-15-12730 | Disc | 1001- | |
| 15 | 124-15-42720 | Plate | 1001- | |
| 16 | 23B-15-12660 | Gear, Ring | 1001- | |
| 17 | 23B-15-12340 | Carrier | 1001- | |
| 18 | 23B-15-12560 | Shaft | 1001- | |
| 19 | 23B-15-12451 | Gear | 1001- | |
| 20 | 41E-15-19310 | Bearing | 1001- | |
| 21 | 09233-13220 | Washer, Thrust | 1001- | |
| 22 | 04260-00635 | Ball, Steel | 1001- | |
| 23 | 23B-15-12350 | Cage | 1001- | |
| 24 | 01010-81040 | Bolt | 1001- | |
| 25 | 01643-51032 | Washer | 1001- | |
| 26 | 04071-00115 | Ring, Snap, for Hole Side | 1001- | |
| 27 | 04064-07525 | Ring, Snap | 1001- | |
| 28 | 23B-15-12280 | Gear | 1001- | |
| 29 | 23A-15-19510 | Ring | 1001- | |
| 30 | 06000-06015 | Bearing | 1001- | |
| 31 | 124-15-41280 | Pin | 1001- | |
| 32 | 702-16-11182 | Spring | 1001- | |
| 33 | 23B-15-12741 | Piston | 1001- | |
| 34 | 234-15-29210 | Seal Ring, (Kit : K01) | 1001- | |
| 35 | 23B-15-19210 | Seal Ring, (Kit : K01) | 1001- | |
| 36 | 23B-15-12131 | Shaft | 1001- | |
| 37 | 07018-00954 | Seal Ring | 1001- | |
| 38 | 56D-15-29790 | Plug | 1001- | |
| 39 | 01010-81255 | Bolt | 1001- | |
| 40 | 01643-31232 | Washer | 1001- | |
| 41 | 04020-01228 | Pin, Dowel | 1001- | |
| 42 | 07018-20352 | Seal Ring | 1001- | |
| 43 | 04064-06525 | Ring, Snap, for Shaft Side | 1001- | |
| 44 | (23S-15-12740) | Disc | - |
