| Item | Part No. | Part Name | Qty | Serial No. |
| (17A-15-51000) | TRANSMISSION ASS'Y | 85001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-61A0. | ||||
| 1 | 17A-15-52110 | SHAFT | 85001- | |
| 2 | 07018-10653 | RING | 85001- | |
| 3 | 17A-15-42131 | SHAFT | 85001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D155a 6 s/n 85001 85076
- Power train and final drive
- Transmission (input and output)(#85001 )
Поиск по каталогу

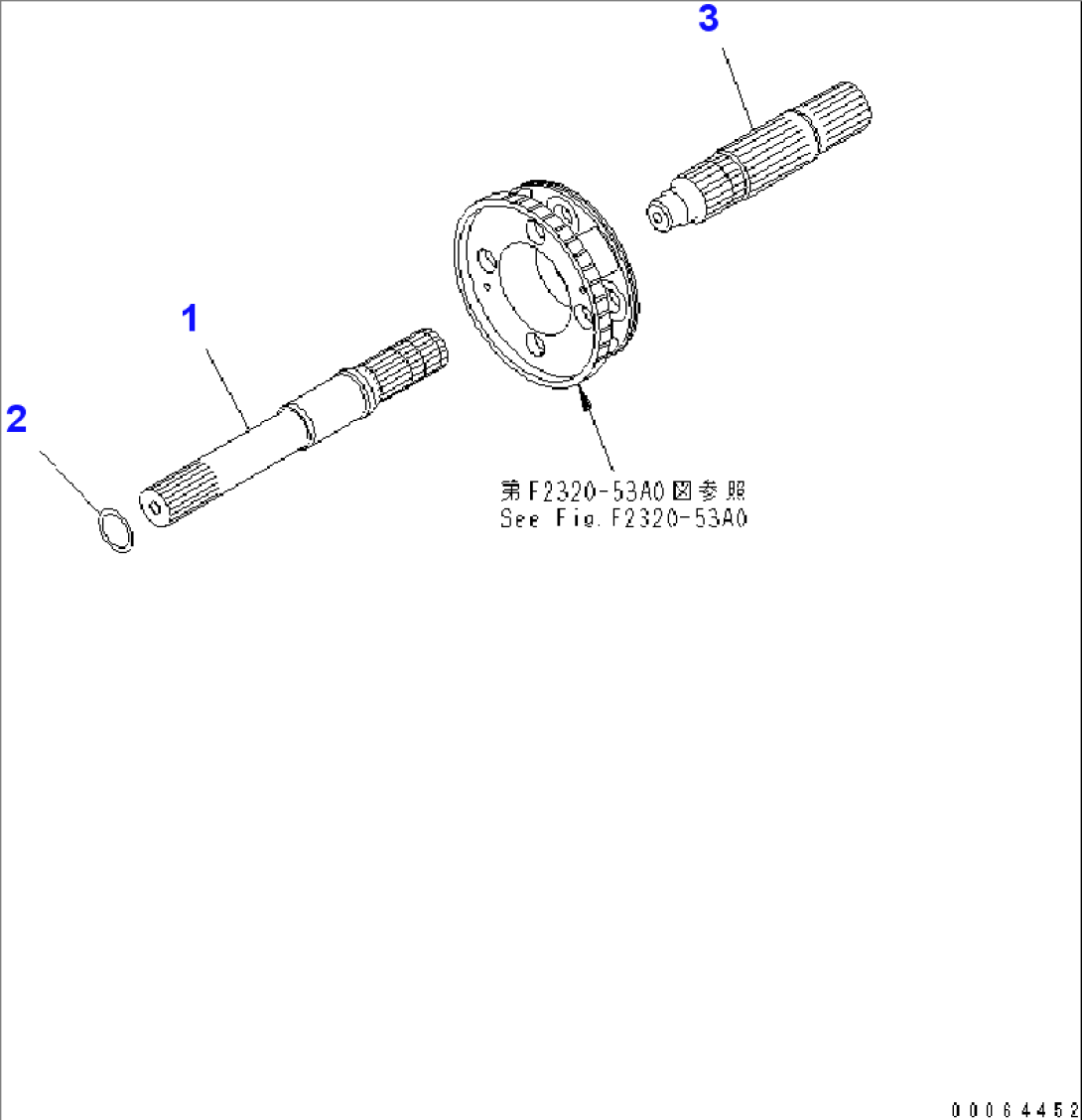

TRANSMISSION (INPUT AND OUTPUT)(#85001-)
