| Item | Part No. | Part Name | Qty | Serial No. |
| (17M-15-51100) | TRANSMISSION ASS'Y | 35001- | ||

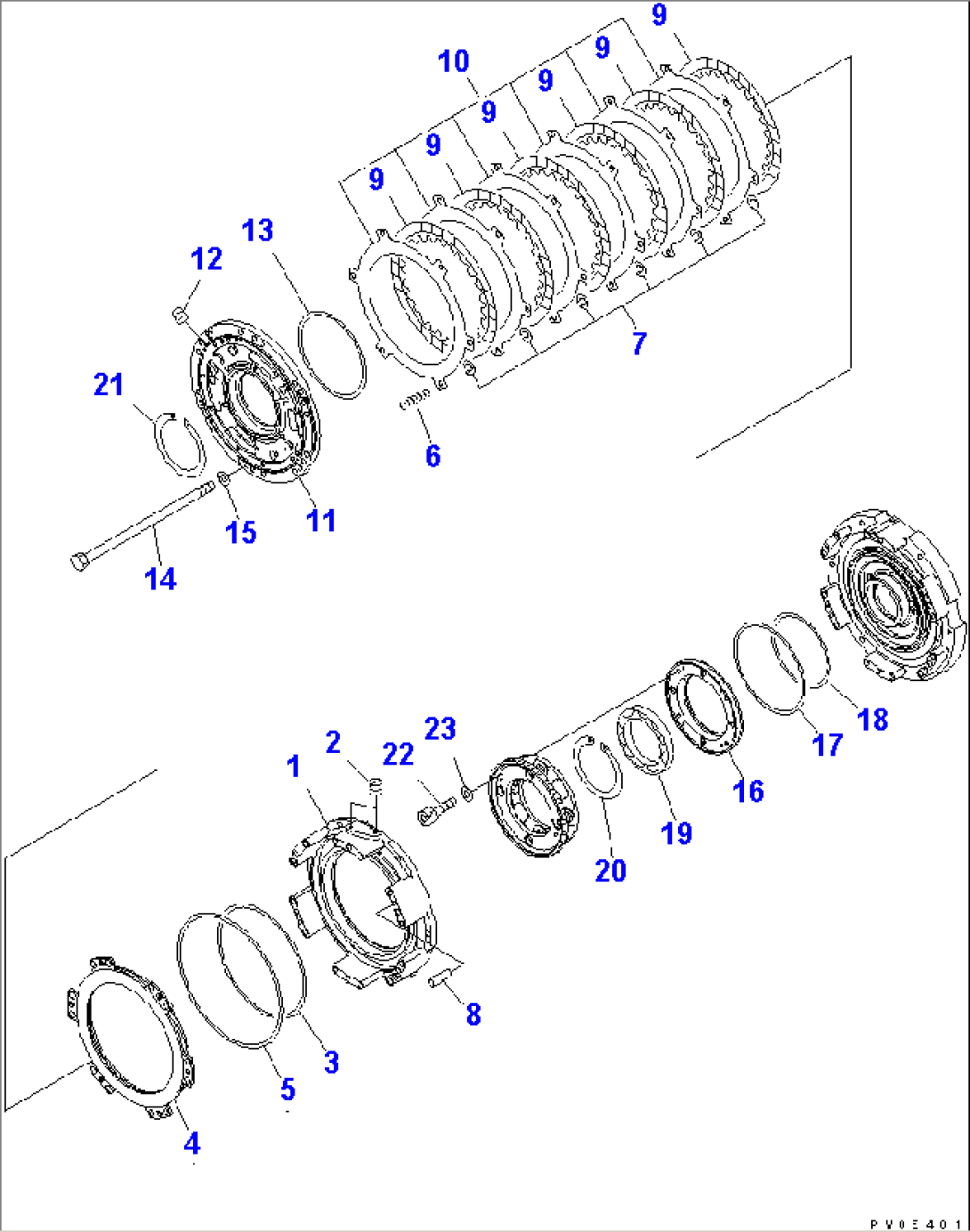

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51C0 TO F2320-63C0. | ||||
| 17M-15-00271 | HOUSING ASS'Y | 35001- | ||
| 1 | \6\ | HOUSING | 35001- | |
| 2 | 125-15-11230 | PLUG | 35001- | |
| 3 | 144-15-22881 | RING,SEAL (K2) | 35001- | |
| 4 | 17M-15-42771 | PISTON | 35001- | |
| 5 | 568-15-12830 | RING,SEAL (K2) | 35001- | |
| 6 | 195-15-12850 | SPRING | 35001- | |
| 7 | 175-15-42880 | SPRING | 35001- | |
| 8 | 04020-01434 | PIN,DOWEL | 35001- | |
| 9 | 195-15-32710 | DISC | 35001- | |
| 10 | 426-15-22740 | PLATE | 35001- | |
| 17M-15-00281 | HOUSING ASS'Y | 35001- | ||
| 11 | \6\ | HOUSING | 35001- | |
| 12 | 175-15-11230 | PLUG | 35001- | |
| 13 | 17M-15-49270 | RING,SEAL | 35001- | |
| 14 | 426-15-11260 | BOLT | 35001- | |
| 15 | 145-14-11571 | WASHER | 35001- | |
| 16 | 17A-15-42370 | COVER | 35003- | |
| 16 | 17A-15-22371 | COVER | 35001-35002 | |
| 17 | 17M-15-49280 | RING,SEAL | 35001- | |
| 18 | 17M-15-49290 | RING,SEAL | 35001- | |
| 19 | 06030-06928 | BEARING | 35001- | |
| 20 | 04070-00140 | RING,SNAP | 35001- | |
| 21 | 04071-00190 | RING,SNAP | 35001- | |
| 22 | 01252-41060 | BOLT | 35001- | |
| 23 | 01643-31032 | WASHER | 35001- |
