| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (17M-15-51100) | TRANSMISSION ASS'Y | 35001- | ||

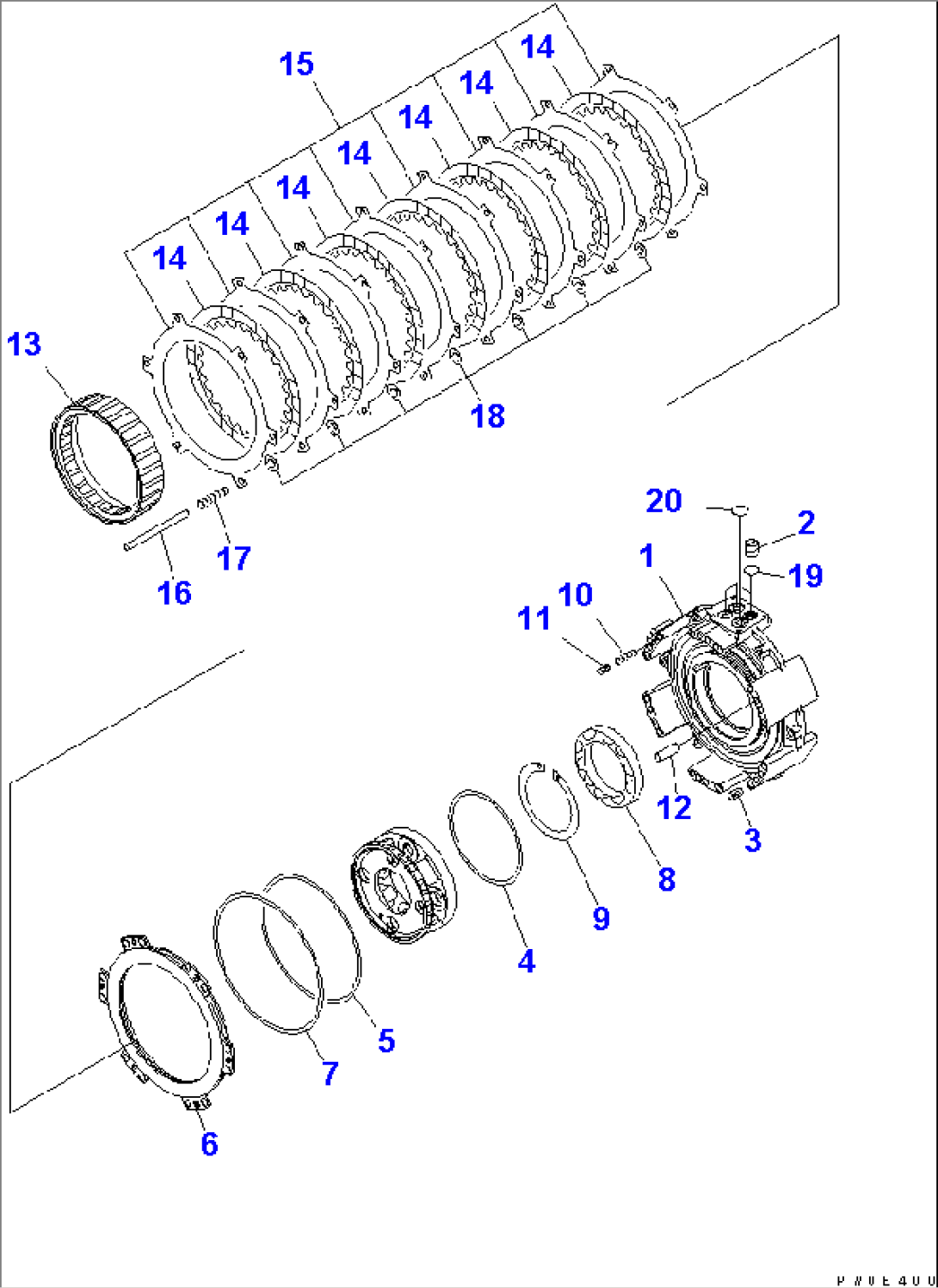

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51C0 TO F2320-63C0. | ||||
| 17M-15-00261 | HOUSING ASS'Y | 35001- | ||
| 1 | \6\ | HOUSING | 35001- | |
| 2 | 568-15-11380 | PLUG | (103036)- | |
| 2 | 234-15-12780 | SCREW | 35001-(103035) | |
| 3 | 569-15-41310 | SLEEVE | 35001- | |
| 4 | 17M-15-49270 | RING,SEAL | 35001- | |
| 5 | 562-15-19230 | RING,SEAL (K2) | 35001- | |
| 6 | 17M-15-42761 | PISTON | 35001- | |
| 7 | 568-15-12840 | RING,SEAL (K2) | 35001- | |
| 8 | 06000-06930 | BEARING | 35001- | |
| 9 | 04071-00210 | RING,SNAP | 35001- | |
| 10 | 700-80-51390 | SPRING | 35001- | |
| 11 | 287-15-15360 | PISTON | 35001- | |
| 12 | 04020-01434 | PIN,DOWEL | 35001- | |
| 13 | 17M-15-42632 | GEAR,RING | 35001- | |
| 14 | 195-15-32710 | DISC | 35001- | |
| 15 | 426-15-22740 | PLATE | 35001- | |
| 16 | 424-15-11270 | PIN,(D=18.0,L=210.0) | 35001- | |
| 17 | 198-15-15551 | SPRING | 35001- | |
| 18 | 175-15-42880 | SPRING | 35001- | |
| 19 | 07000-73030 | O-RING (K2) | 35001- | |
| 20 | 07000-73035 | O-RING (K2) | 35001- |
