| Item | Part No. | Part Name | Qty | Serial No. |
| 17M-15-51100 | TRANSMISSION ASS'Y | 35001- | ||

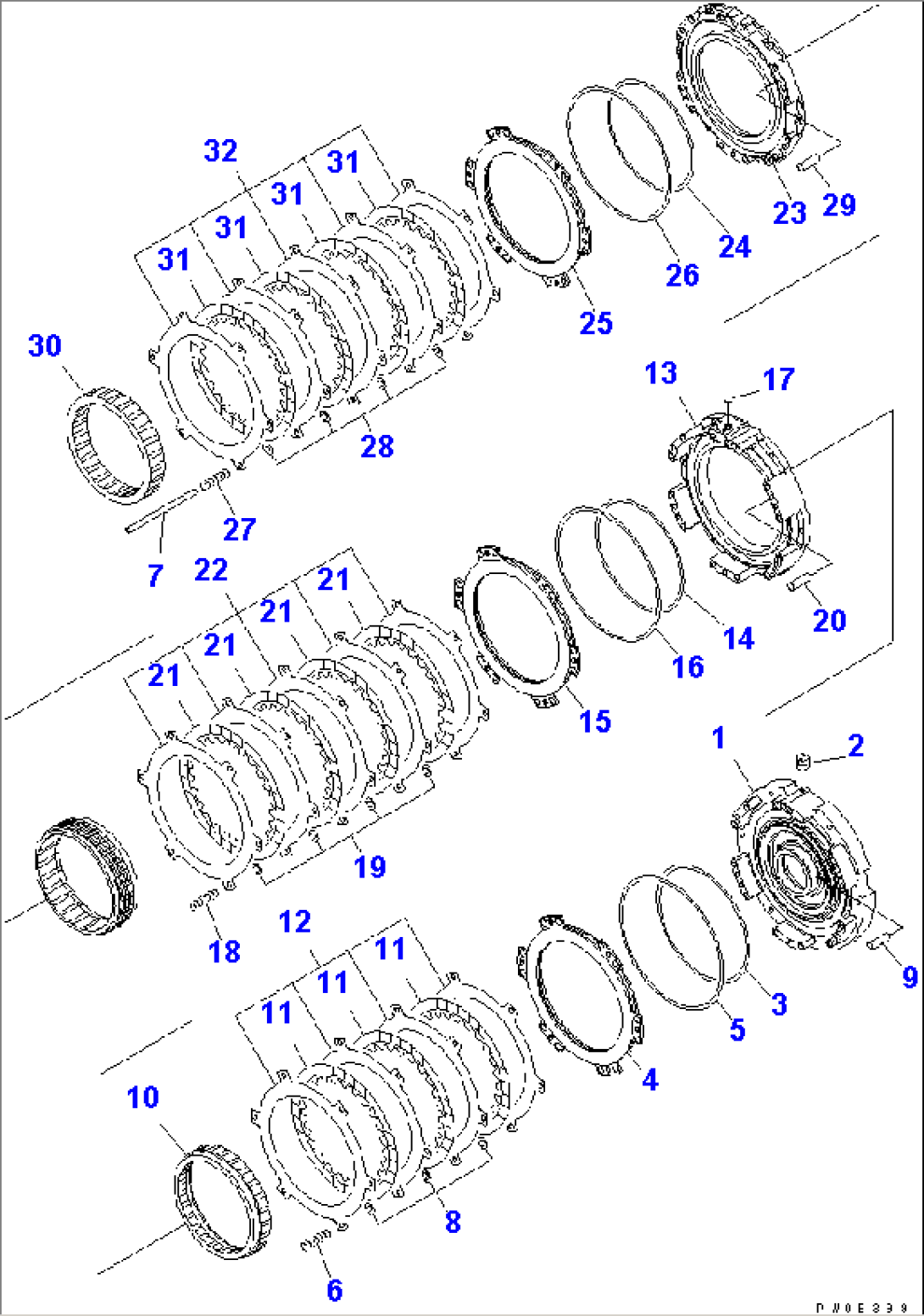

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51C0 TO F2320-63C0. | ||||
| 17M-15-00231 | HOUSING ASS'Y | 35001- | ||
| 1 | \6\ | HOUSING | 35001- | |
| 2 | 568-15-11380 | PLUG | 35001- | |
| 3 | 562-15-19230 | RING,SEAL (K2) | 35001- | |
| 4 | 17M-15-42730 | PISTON | 35001- | |
| 5 | 566-15-79260 | RING,SEAL (K2) | 35001- | |
| 6 | 195-15-48140 | SPRING | 35001- | |
| 7 | 232-15-11270 | PIN | 35001- | |
| 8 | 175-15-42880 | SPRING | 35001- | |
| 9 | 04020-01434 | PIN,DOWEL | 35001- | |
| 10 | 17A-15-22660 | GEAR,RING | 35001- | |
| 11 | 712-82-12710 | DISC | 35001- | |
| 12 | 426-15-22740 | PLATE | 35001- | |
| 13 | 17M-15-41141 | HOUSING | 35001- | |
| 14 | 144-15-22881 | RING,SEAL (K2) | 35001- | |
| 15 | 17M-15-42771 | PISTON | 35001- | |
| 16 | 568-15-12830 | RING,SEAL (K2) | 35001- | |
| 17 | 07000-72020 | O-RING (K2) | 35001- | |
| 18 | 195-15-48140 | SPRING | 35001- | |
| 19 | 175-15-42880 | SPRING | 35001- | |
| 20 | 04020-01434 | PIN,DOWEL | 35001- | |
| 21 | 712-82-12710 | DISC | 35001- | |
| 22 | 426-15-22740 | PLATE | 35001- | |
| 23 | 17M-15-41151 | HOUSING | 35001- | |
| 24 | 425-15-19250 | RING,SEAL (K2) | 35001- | |
| 25 | 17A-15-22750 | PISTON | 35001- | |
| 26 | 566-15-79260 | RING,SEAL (K2) | 35001- | |
| 27 | 425-15-12920 | SPRING, (L= 68.0) | 35001- | |
| 28 | 175-15-42880 | SPRING | 35001- | |
| 29 | 04020-01434 | PIN,DOWEL | 35001- | |
| 30 | 17M-15-42640 | GEAR,RING | 35001- | |
| 31 | 712-82-12710 | DISC | 35001- | |
| 32 | 426-15-22740 | PLATE | 35001- |
