| Item | Part No. | Part Name | Qty | Serial No. |
| | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | | |
| (714-16-10012) | TRANSMISSION ASS'Y | | 54001- |
| (714-16-10011) | TRANSMISSION ASS'Y | | 53001-54000 |
| (714-16-10033) | TRANSMISSION ASS'Y | | 54001- |
| (714-16-10032) | TRANSMISSION ASS'Y,(FOR SNOW REMOVING) | | 53001-54000 |
| | THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS. | | |

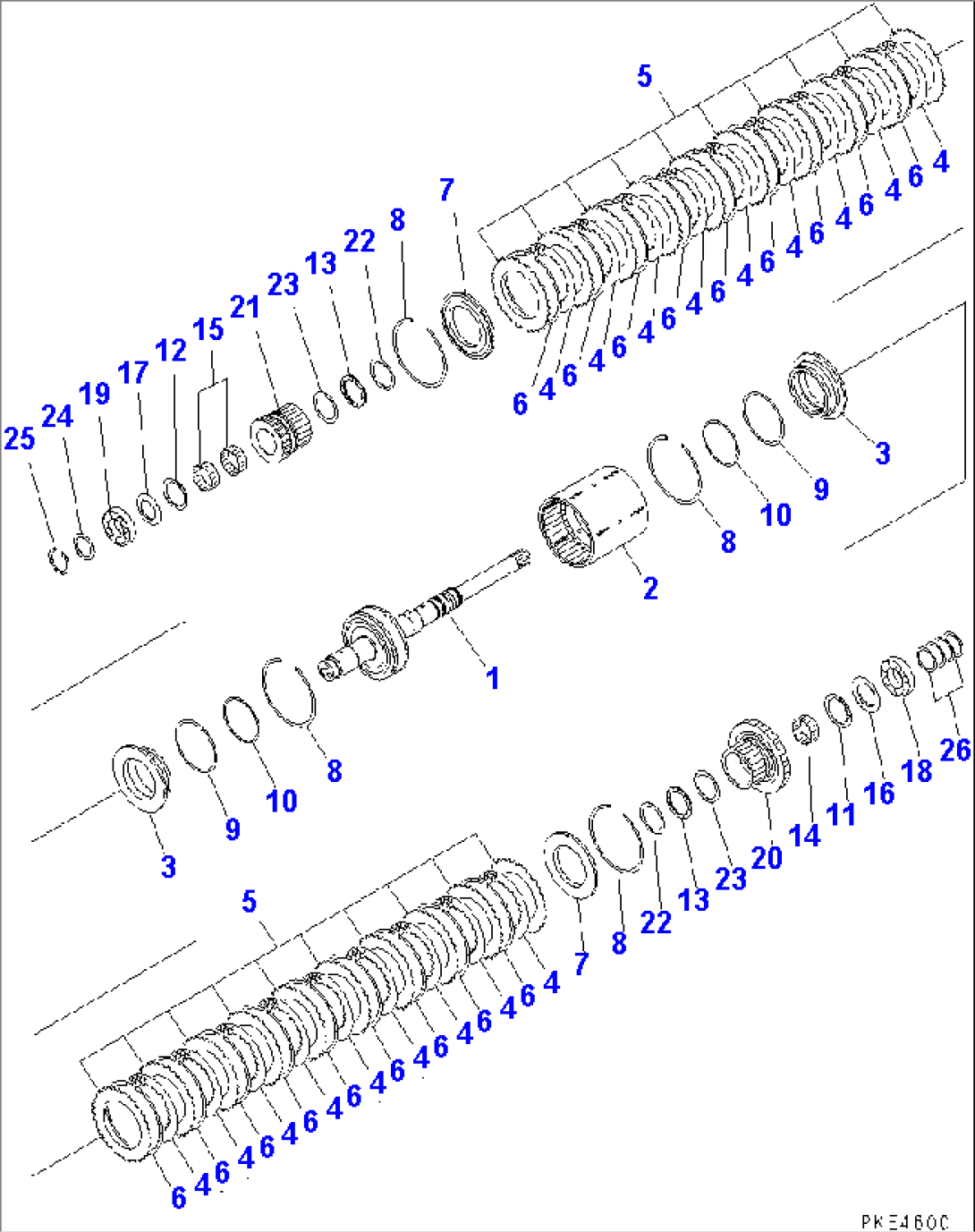

| 714-16-12040 | CLUTCH ASS'Y,FORWARD AND REVERSE | | 53001- |
| 1 | 714-16-12140 | SHAFT ASS'Y | | 53001- |
| 2 | 714-16-12360 | HOUSING | | 53001- |
| 3 | 714-16-12650 | PISTON,FORWARD AND REVERSE | | 53001- |
| 4 | 714-12-19711 | DISC | | (84640)- |
| \0\714-12-19710 | DISC | | 53001-(84639) |
| 5 | 714-16-19730 | PLATE,SEPARATE | | 53001- |
| 6 | 419-15-12133 | SPRING,WAVE | | 53001- |
| 7 | 714-12-12610 | PLATE,END | | 53001- |
| 8 | 419-15-12140 | RING,SNAP | | 53001- |
| 9 | 714-08-19230 | RING,SEAL | | 53001- |
| 10 | 714-16-19210 | RING,SEAL | | 53001- |
| 11 | 714-08-19560 | WASHER,THRUST | | 53001- |
| 12 | 714-11-19510 | WASHER,THRUST | | 53001- |
| 13 | 419-15-12640 | BEARING,THRUST | | 53001- |
| 14 | 714-23-19420 | BEARING,NEEDLE | | (85905)- |
| \0\714-12-19410 | BEARING,NEEDLE | | 53001-(85904) |
| 15 | 419-15-12271 | BEARING,NEEDLE | | (85905)- |
| \0\419-15-12270 | BEARING,NEEDLE | | 53001-(85904) |
| 16 | 714-12-12740 | SPACER | | 53001- |
| 17 | 714-12-12710 | SPACER | | 53001- |
| 18 | 714-12-19330 | BEARING | | 53001- |
| 19 | 06033-02210 | BEARING | | 53001- |
| 20 | 714-12-12420 | GEAR¤ 38 TEETH,FORWARD | | 53001- |
| 21 | 714-12-12410 | GEAR¤ 23 TEETH,REVERSE | | 53001- |
| 22 | 714-12-12760 | WASHER | | 53001- |
| 23 | 419-15-12650 | WASHER,THRUST | | 53001- |
| 24 | 714-12-12930 | SPACER | | 53001- |
| 25 | 04066-00050 | RING,SNAP | | 53001- |
| 26 | 714-07-12290 | RING,SEAL | | 53001- |
