| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 714-23-20003 | TRANSMISSION ASS'Y | 51409- | ||
| \0\714-23-20002 | TRANSMISSION ASS'Y | 51376-51408 | ||
| 714-23-20001 | TRANSMISSION ASS'Y | 51301-51375 | ||

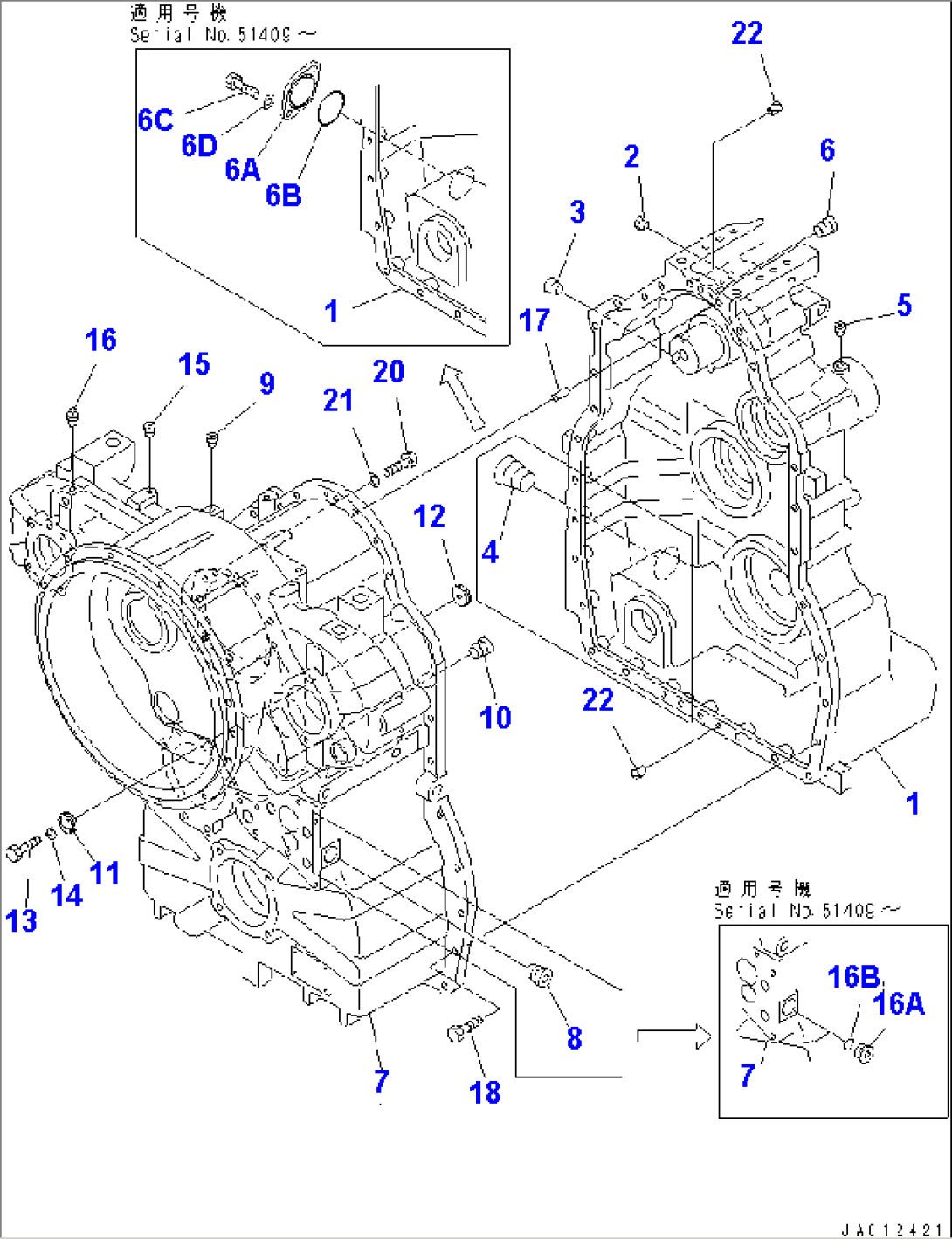

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F5350-51A0 TO F5350-71A0. | ||||
| 714-23-11116 | CASE | 51409- | ||
| 714-23-11115 | CASE | (100215)-00051408 | ||
| 714-23-11114 | CASE | 51301-(100214) | ||
| 1 | \6\ | CASE | 51409- | |
| 1 | \6\ | CASE | (100215)-00051408 | |
| 1 | \6\ | CASE | 51301-(100214) | |
| 2 | 07043-70211 | PLUG | 51301- | |
| 3 | 07043-70312 | PLUG | 51301- | |
| 4 | 07043-72026 | PLUG | 51301-51408 | |
| 5 | 281-15-12790 | SCREW | 51301- | |
| 6 | 07043-70617 | PLUG | 51301- | |
| 6A | 714-23-13270 | COVER | 51409- | |
| 6B | 07000-72055 | O-RING (K1) | 51409- | |
| 6C | 01010-81030 | BOLT | 51409- | |
| 6D | 01643-31032 | WASHER | 51409- | |
| 714-23-11126 | CASE,TORQUE CONVERTER | 51409- | ||
| 714-23-11125 | CASE,TORQUE CONVERTER | 51301-51408 | ||
| 7 | \6\ | CASE | 51409- | |
| 7 | \6\ | CASE | 51301-51408 | |
| 8 | 07043-70617 | PLUG | 51301-51408 | |
| 9 | 07043-70211 | PLUG | 51301- | |
| 10 | 07043-71019 | PLUG | 51301- | |
| 11 | 567-15-41270 | PLUG | 51301- | |
| 12 | 567-15-41280 | PLUG | 51301- | |
| 13 | 01010-80850 | BOLT | 51301- | |
| 14 | 01643-30823 | WASHER | 51301- | |
| 15 | 714-23-17320 | PLUG | 51301- | |
| 16 | 07042-80211 | PLUG | 51301- | |
| 16A | 720-2M-15270 | PLUG | 51409- | |
| 16B | 07002-62434 | O-RING (K1) | 51409- | |
| 17 | 04020-01228 | PIN | 51301- | |
| 18 | 01010-81240 | BOLT | 51301- | |
| 19 | 419-15-18131 | LIQUID GASKET,(NOT SHOWN) (K1) | 51301- | |
| 20 | 01010-81245 | BOLT | 51301- | |
| 21 | 01643-31232 | WASHER | 51301- | |
| 22 | 07049-01215 | PLUG | (100282)- |
