| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 17M-15-51100 | TRANSMISSION ASS'Y | (102564)- | ||
| 17M-15-41100 | TRANSMISSION ASS'Y | 30001-(102563) | ||

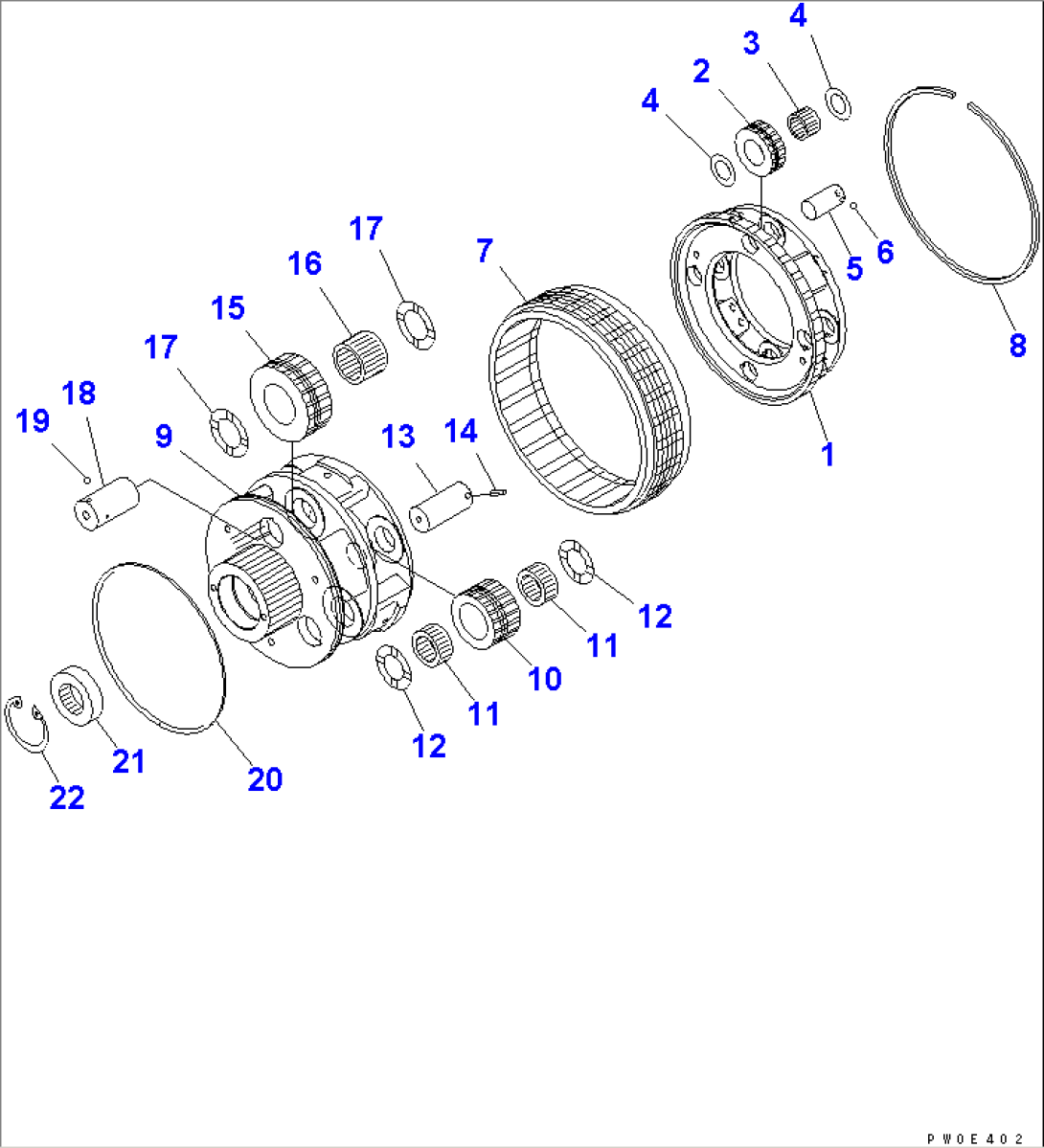

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51C0 TO F2320-63C0. | ||||
| 1 | 17A-15-22351 | CARRIER | 30001- | |
| 2 | 17M-15-42451 | GEAR | 30001- | |
| 3 | 712-86-19320 | BEARING | 30001- | |
| 4 | 09233-12920 | WASHER,THRUST | 30001- | |
| 5 | 17M-15-42511 | SHAFT | (103230)- | |
| 5 | 17M-15-42510 | SHAFT | 30001-(103229) | |
| 6 | 04260-00635 | BALL | 30001- | |
| 7 | 17A-15-22650 | GEAR,RING | 30001- | |
| 8 | 17A-15-29510 | RING,SNAP | 30001- | |
| 9 | 17M-15-42330 | CARRIER | 30001- | |
| 10 | 17M-15-42441 | GEAR | 30001- | |
| 11 | 17M-15-39420 | BEARING | 30001- | |
| 12 | 561-15-32590 | WASHER,THRUST | 30001- | |
| 13 | 17M-15-42520 | SHAFT | 30001- | |
| 14 | 14X-15-12960 | PIN | 30001- | |
| 15 | 17M-15-42431 | GEAR | 30001- | |
| 16 | 195-15-49430 | BEARING | 30001- | |
| 17 | 195-15-32570 | WASHER,THRUST | 30001- | |
| 18 | 281-15-12543 | SHAFT | (103230)- | |
| 18 | 281-15-12542 | SHAFT | 30001-(103229) | |
| 19 | 04260-00635 | BALL | 30001- | |
| 20 | 17M-15-49270 | RING,SEAL | 30001- | |
| 21 | 17A-15-39310 | BEARING | 30001- | |
| 22 | 04065-08025 | RING,SNAP | 30001- |
