| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||

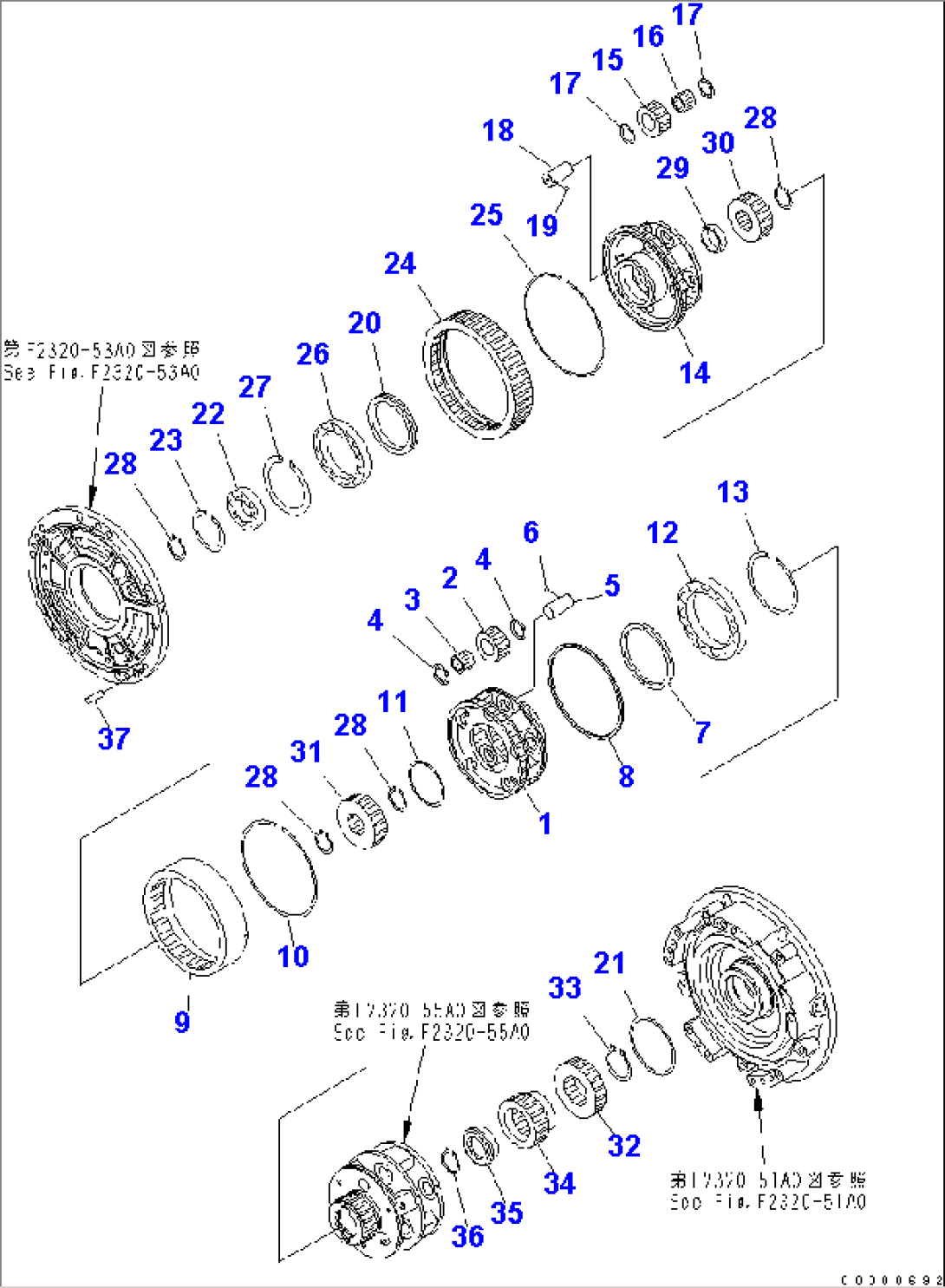

| (154-15-61002) | TRANSMISSION ASS'Y | 1201- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-62A0. | ||||
| 1 | 154-15-62340 | CARRIER | 1201- | |
| 2 | 154-15-62411 | GEAR | (100690)- | |
| 2 | 154-15-62410 | GEAR | 1201-(100659) | |
| 3 | 14X-15-29440 | BEARING | 1201- | |
| 4 | 09233-12920 | WASHER | 1201- | |
| 5 | 14X-15-22540 | SHAFT | 1201- | |
| 6 | 04260-00635 | BALL | 1201- | |
| 7 | 421-15-12150 | SPACER | 1201- | |
| 8 | 07018-12205 | RING | 1201- | |
| 9 | 154-15-62620 | RING GEAR | 1201- | |
| 10 | 14X-15-19530 | RING,SNAP | 1201- | |
| 11 | 14X-15-19510 | RING,SNAP | 1201- | |
| 12 | 06000-06926 | BEARING | 1201- | |
| 13 | 04070-00130 | RING,SNAP | 1201- | |
| 14 | 154-15-62310 | CARRIER | 1201- | |
| 15 | 154-15-62411 | GEAR | (100690)- | |
| 15 | 154-15-62410 | GEAR | 1201-(100659) | |
| 16 | 14X-15-29440 | BEARING | 1201- | |
| 17 | 09233-12920 | WASHER | 1201- | |
| 18 | 14X-15-22540 | SHAFT | 1201- | |
| 19 | 04260-00635 | BALL | 1201- | |
| 20 | 14X-15-12190 | SPACER | 1201- | |
| 21 | 14X-15-19220 | SEAL RING | 1201- | |
| 22 | 06030-06210 | BEARING | 1201- | |
| 23 | 04077-00090 | RING | 1201- | |
| 24 | 154-15-62611 | RING GEAR | 1201- | |
| 25 | 14X-15-19520 | RING,SNAP | 1201- | |
| 26 | 06030-06922 | BEARING | 1201- | |
| 27 | 04070-00110 | RING,SNAP | 1201- | |
| 28 | 04064-05020 | RING,SNAP | 1201- | |
| 29 | 14X-15-12140 | SPACER | 1201- | |
| 30 | 154-15-62210 | GEAR | 1201- | |
| 31 | 154-15-62220 | GEAR | 1201- | |
| 32 | 14X-15-12250 | GEAR | 1201- | |
| 33 | 04064-07025 | RING | 1201- | |
| 34 | 154-15-62241 | GEAR | 1201- | |
| 35 | 14X-15-12160 | SPACER | 1201- | |
| 36 | 04064-05520 | RING,SNAP | 1201- | |
| 37 | 04020-01434 | PIN,DOWEL | 1201- |
