| Item | Part No. | Part Name | Qty | Serial No. |
| (195-15-01016) | TRANSMISSION ASS'Y | 16461- | ||
| \0\195-15-01015 | TRANSMISSION ASS'Y | 16240-16460 | ||
| \0\195-15-01014 | TRANSMISSION ASS'Y | 16001-16239 | ||

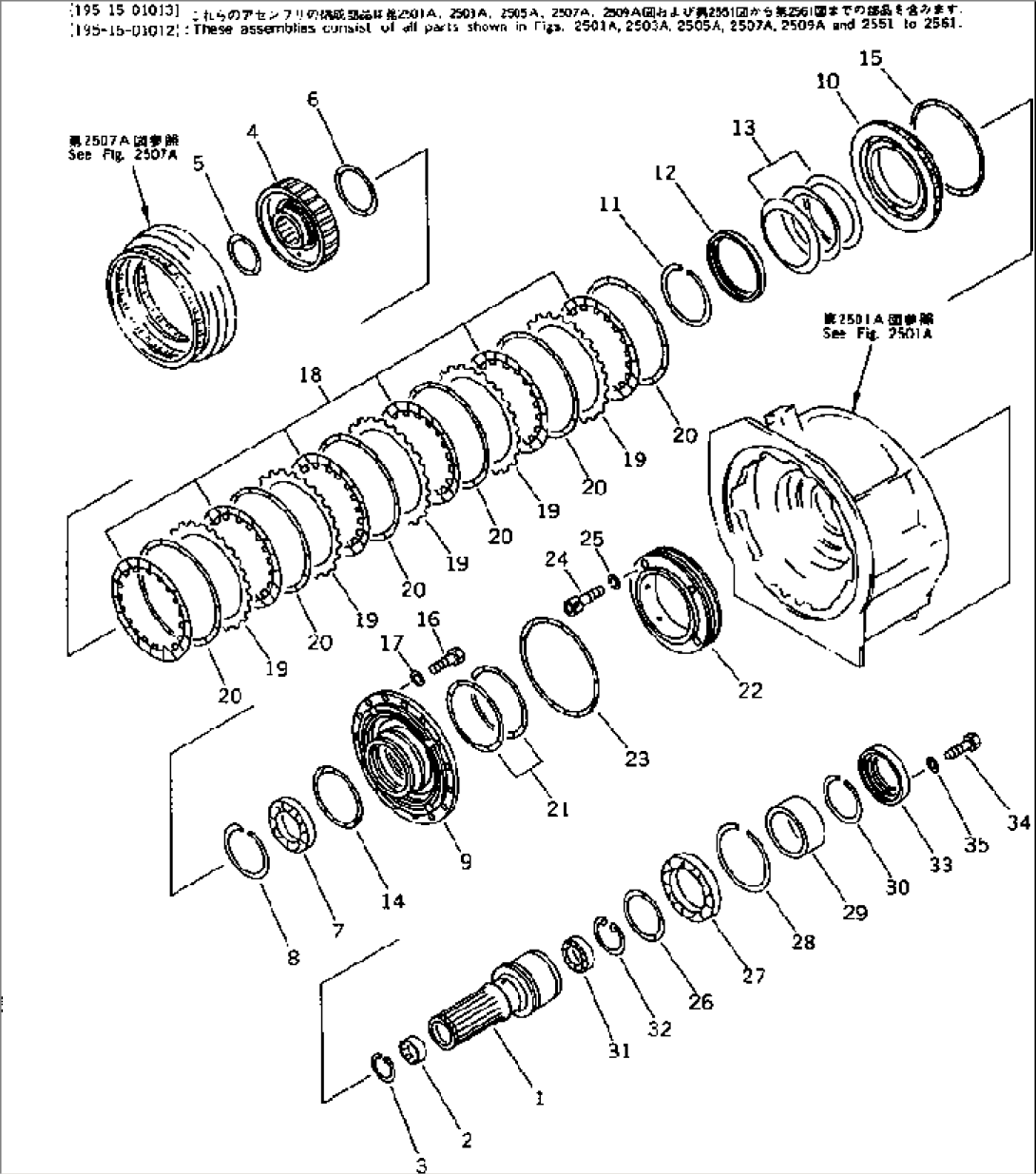

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2561. | ||||
| 1 | 195-15-42132 | SHAFT | 16001- | |
| 2 | 195-15-49330 | BEARING,ROLLER | 16001- | |
| 3 | 04065-08025 | RING,SNAP | 16001- | |
| 4 | 195-15-42271 | HUB | 16001- | |
| 5 | 195-15-49230 | RING,SEAL | 16001- | |
| 6 | 195-15-49250 | RING,SEAL | 16001- | |
| 7 | 06000-06021 | BEARING,BALL | 16001- | |
| 8 | 04071-00160 | RING,SNAP | 16001- | |
| 9 | 195-15-42843 | HOUSING COMPLETE | 16001- | |
| 10 | 195-15-42733 | PISTON,1ST | 16001- | |
| 11 | 04070-00190 | RING,SNAP | 16001- | |
| 12 | 195-15-41211 | SPACER | 16001- | |
| 13 | 195-15-42951 | SPRING | 16001- | |
| 14 | 103-15-29220 | RING,SEAL (KIT) | 16001- | |
| 15 | 195-15-49210 | RING,SEAL (KIT) | 16001- | |
| 16 | 01010-51445 | BOLT | 16001- | |
| 17 | 01643-31445 | WASHER | 16001- | |
| 18 | 424-15-12710 | DISC | 16001- | |
| 19 | 195-15-42850 | PLATE | 16001- | |
| 20 | 287-15-12920 | SPRING | 16001- | |
| 21 | 425-15-19270 | RING,SEAL | 16001- | |
| 22 | 195-15-43140 | COLLAR | 16001- | |
| 23 | 145-15-42810 | RING,SEAL (KIT) | 16001- | |
| 24 | 01252-41240 | BOLT | 16001- | |
| 25 | 01602-21236 | WASHER,SPRING | 16001- | |
| 26 | 195-15-49220 | RING,SEAL | 16001- | |
| 27 | 06000-06930 | BEARING,BALL | 16001- | |
| 28 | 04071-00210 | RING,SNAP | 16001- | |
| 29 | 195-15-32190 | SPACER | 16001- | |
| 30 | 04070-00150 | RING,SNAP | 16001- | |
| 31 | 195-15-49380 | BEARING,ROLLER | 16001- | |
| 32 | 04065-01030 | RING,SNAP | 16001- | |
| 33 | 195-15-32140 | PLATE | 16001- | |
| 34 | 01010-50820 | BOLT | 16001- | |
| 35 | 01643-50823 | WASHER | 16001- |
