| Item | Part No. | Part Name | Qty | Serial No. |
| (14X-15-00011) | TRANSMISSION ASS'Y | 3023- | ||
| (14X-15-00010) | TRANSMISSION ASS'Y | 3001-3022 | ||

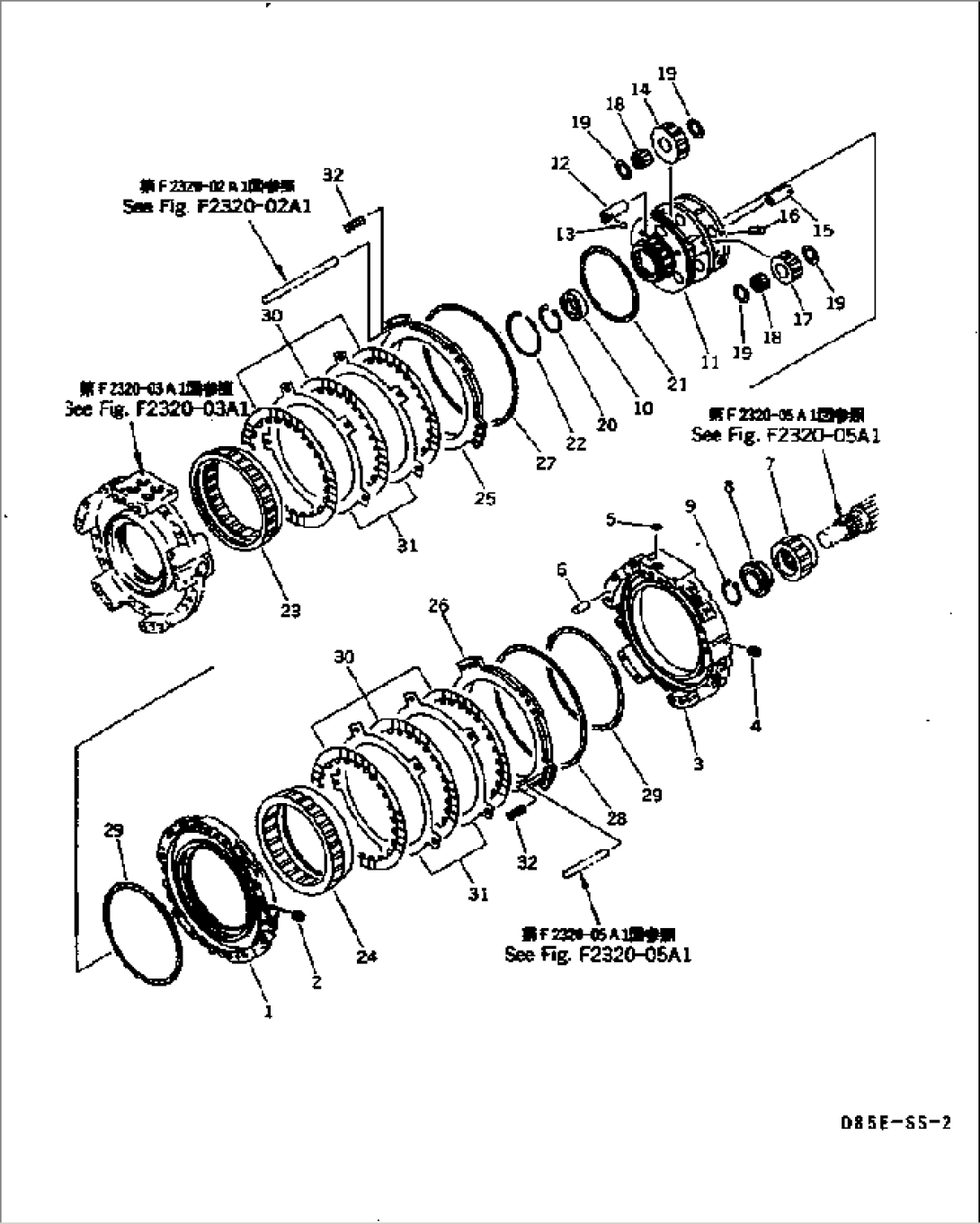

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-01A1 TO F2320-10A1. | ||||
| 14X-15-00250 | HOUSING ASS'Y | 3001- | ||
| 1 | \6\ | HOUSING | 3001- | |
| 2 | 145-14-11320 | PLUG | 3001- | |
| 14X-15-00240 | HOUSING ASS'Y | 3001- | ||
| 3 | \6\ | HOUSING | 3001- | |
| 4 | 145-14-11320 | PLUG | 3001- | |
| 5 | 07000-72020 | O-RING (K3) | 3001- | |
| 6 | 04020-01228 | PIN | 3001- | |
| 7 | 14X-15-12240 | GEAR | 3001- | |
| 8 | 14X-15-12160 | SPACER | 3001- | |
| 9 | 04064-05520 | RING,SNAP | 3001- | |
| 10 | 14X-15-19310 | BEARING | 3001- | |
| 11 | 14X-15-12330 | CARRIER | 3001- | |
| 12 | 14X-15-12530 | SHAFT | 3001- | |
| 13 | 04260-00635 | BALL | 3001- | |
| 14 | 14X-15-12430 | GEAR | 3001- | |
| 15 | 14X-15-12520 | SHAFT | 3001- | |
| 16 | 04025-00620 | PIN,SPRING | 3001- | |
| 17 | 14X-15-12440 | GEAR | 3001- | |
| 18 | 14X-15-19420 | BEARING | 3001- | |
| 19 | 154-15-12550 | WASHER,THRUST | 3001- | |
| 20 | 04065-07225 | RING,SNAP | 3001- | |
| 21 | 07018-12105 | RING,SEAL | 3001- | |
| 22 | 14X-15-19510 | RING,SNAP | 3001- | |
| 23 | 14X-15-12640 | GEAR,RING | 3001- | |
| 24 | 14X-15-12670 | GEAR,RING | 3001- | |
| 25 | 424-15-12750 | PISTON | 3001- | |
| 26 | 424-15-12760 | PISTON | 3001- | |
| 27 | 568-15-12850 | RING,SEAL (K3) | 3001- | |
| 28 | 144-15-22881 | RING,SEAL (K3) | 3001- | |
| 29 | 113-15-12870 | RING,SEAL (K3) | 3001- | |
| 30 | 424-15-12711 | DISC | 3001- | |
| 31 | 424-15-12720 | PLATE | 3001- | |
| 32 | 103-15-22911 | SPRING | 3001- |
