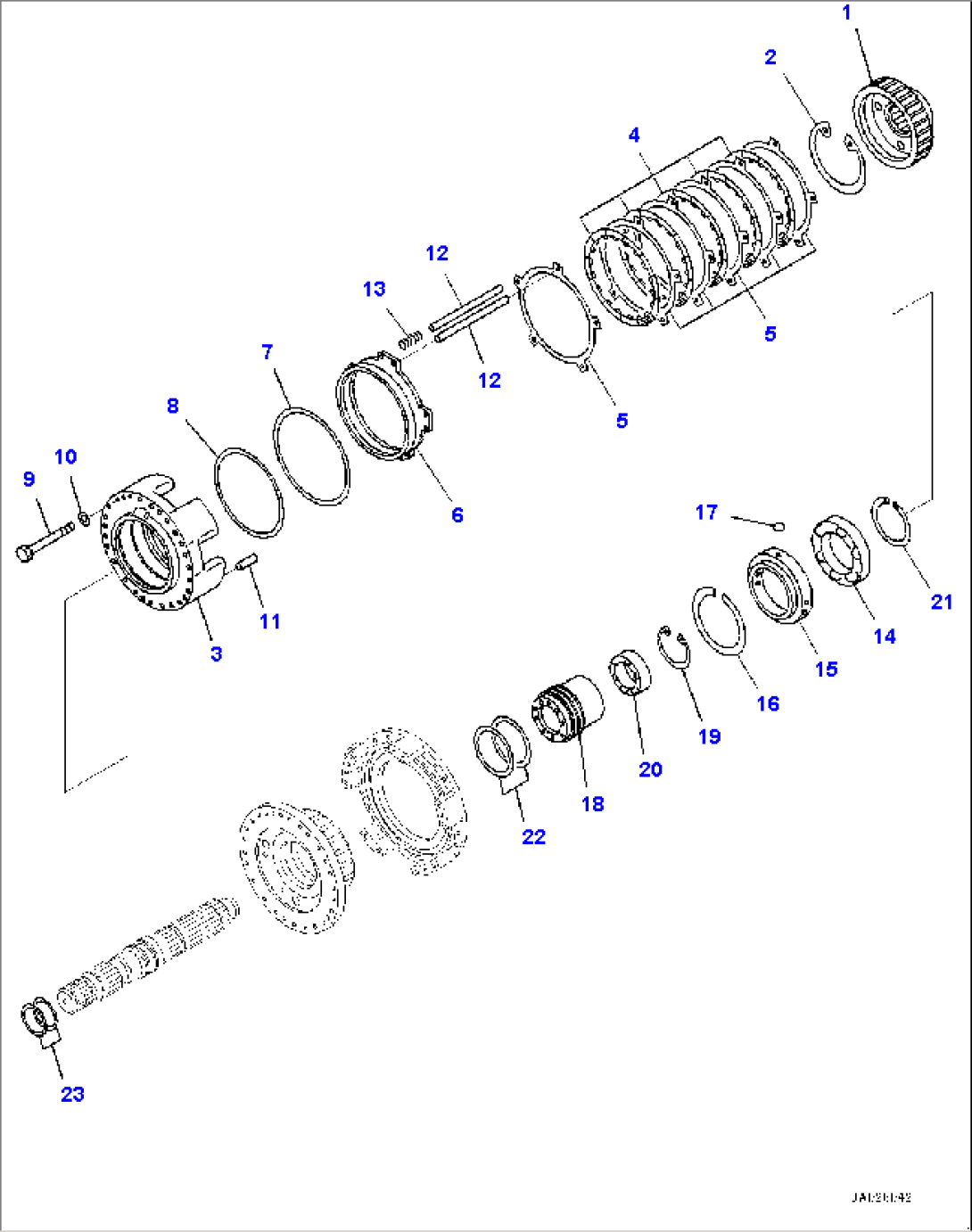

| Item | Part No. | Part Name | Qty | Serial No. |
| 23B-15-00062 | Transmission Assembly | 1001- | ||
| 23B-15-11020 | Transmission Assembly | 1001- | ||
| 1 | 23B-15-12270 | Hub | 1001- | |
| 2 | 22W-15-29510 | Ring, Snap | 1001- | |
| 3 | 23B-15-12331 | Housing | 1001- | |
| 4 | 23S-15-42730 | Disc | 1001- | |
| 5 | 125-15-32750 | Plate | 1001- | |
| 6 | 23B-15-12722 | Piston | 1001- | |
| 7 | 113-15-29250 | Seal Ring, (Kit : K01) | 1001- | |
| 8 | 22W-75-15440 | Seal Ring, (Kit : K01) | 1001- | |
| 9 | 01011-81000 | Bolt | 1001- | |
| 10 | 01643-51032 | Washer | 1001- | |
| 11 | 04020-01228 | Pin, Dowel | 1001- | |
| 12 | 23S-15-21290 | Pin | 1001- | |
| 13 | 103-15-22911 | Spring | 1001- | |
| 14 | 06000-06922 | Bearing | 1001- | |
| 15 | 23S-15-22390 | Bushing | 1001- | |
| 16 | 04071-00155 | Ring, Snap, for Hole Side | 1001- | |
| 17 | 04260-00635 | Ball, Steel | 1001- | |
| 18 | 23B-15-11210 | Cage | 1001- | |
| 19 | 04065-09530 | Ring, Snap | 1001- | |
| 20 | 06000-06012 | Bearing | 1001- | |
| 21 | 04070-00110 | Ring, Snap | 1001- | |
| 22 | 07018-21205 | Seal Ring, (Kit : K01) | 1001- | |
| 23 | 07018-10703 | Seal Ring | 1001- |
