| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| (17M-13-41101) | TORQUE CONVERTER A. | (102847)- | ||
| (17M-13-41100) | TORQUE CONVERTER A. | 30001-(102846) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2310-51C0 TO F2310-58C0. | ||||

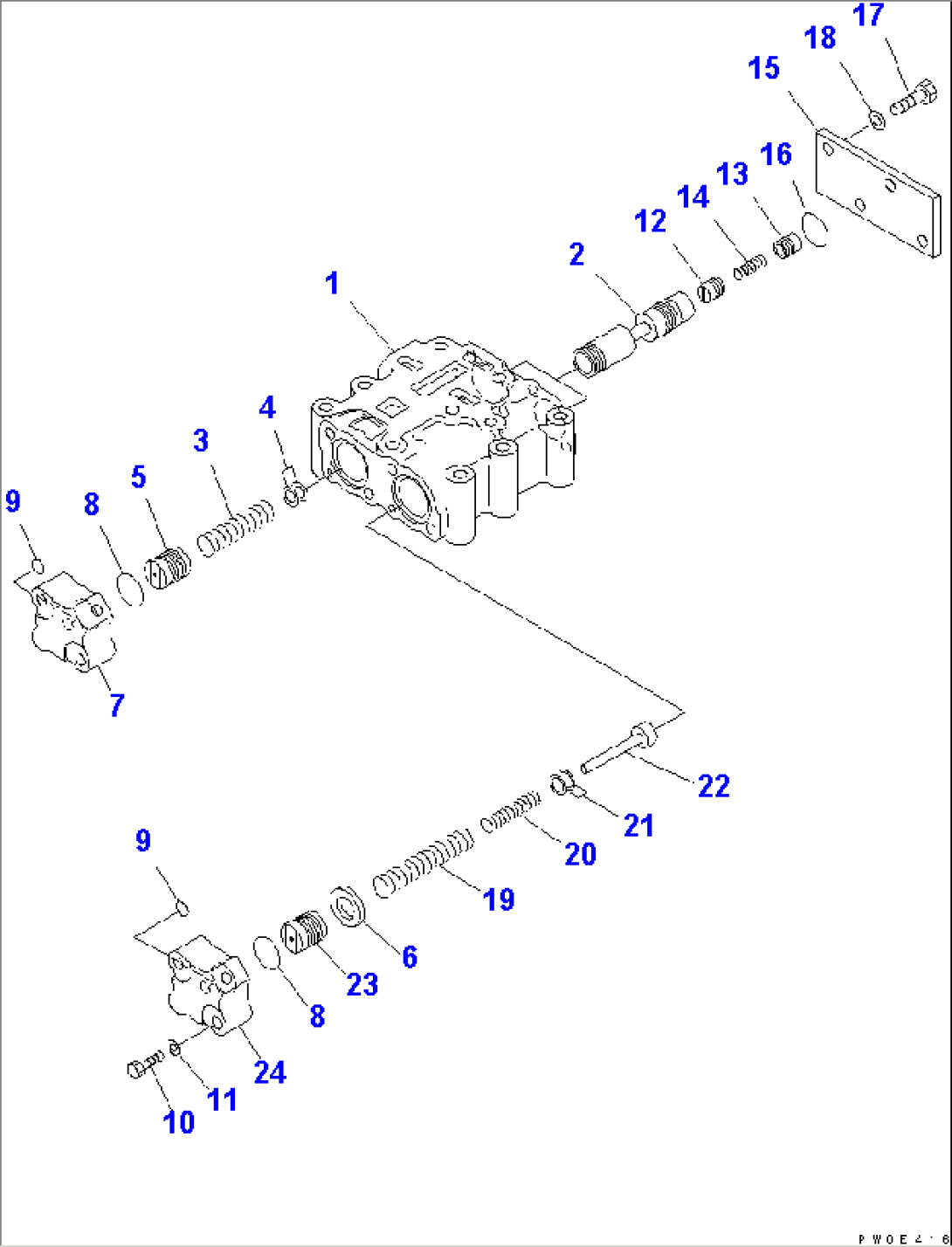

| 17M-13-46700 | VALVE ASS'Y | 30001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2310-56C0 AND F2310-57C0. | ||||
| 1 | \6\ | VALVE BODY | 30001- | |
| 2 | 711-66-16822 | SPOOL | 30001- | |
| 3 | 711-66-16841 | SPRING | 30001- | |
| 4 | 425-15-14240 | SHIM, 0.5MM | 30001- | |
| 5 | 17M-13-26830 | PISTON | 30001- | |
| 6 | 711-66-16870 | RING | 30001- | |
| 7 | 17M-13-46850 | COVER | 30001- | |
| 8 | 07000-73038 | O-RING (K1) | 30001- | |
| 9 | 07000-72010 | O-RING (K1) | 30001- | |
| 10 | 01010-81050 | BOLT | 30001- | |
| 11 | 01643-31032 | WASHER | 30001- | |
| 12 | 195-15-15130 | VALVE | 30001- | |
| 13 | 175-15-15550 | VALVE | 30001- | |
| 14 | 17M-13-26890 | SPRING | 30001- | |
| 15 | 17M-13-46130 | COVER | 30001- | |
| 16 | 07000-73030 | O-RING (K1) | 30001- | |
| 17 | 01010-81025 | BOLT | 30001- | |
| 18 | 01643-31032 | WASHER | 30001- | |
| 19 | 17M-13-26870 | SPRING | 30001- | |
| 20 | 17M-13-26880 | SPRING | 30001- | |
| 21 | 17M-13-26820 | SHIM, 0.5MM | 30001- | |
| 22 | 17M-13-26840 | SHAFT | 30001- | |
| 23 | 17M-13-26830 | PISTON | 30001- | |
| 24 | 17M-13-46860 | COVER | 30001- |
