| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (195-13-71101) | TORQUE CONVERTER | (108657)- | ||
| (195-13-71100) | TORQUE CONVERTER | 55001-(108656) | ||

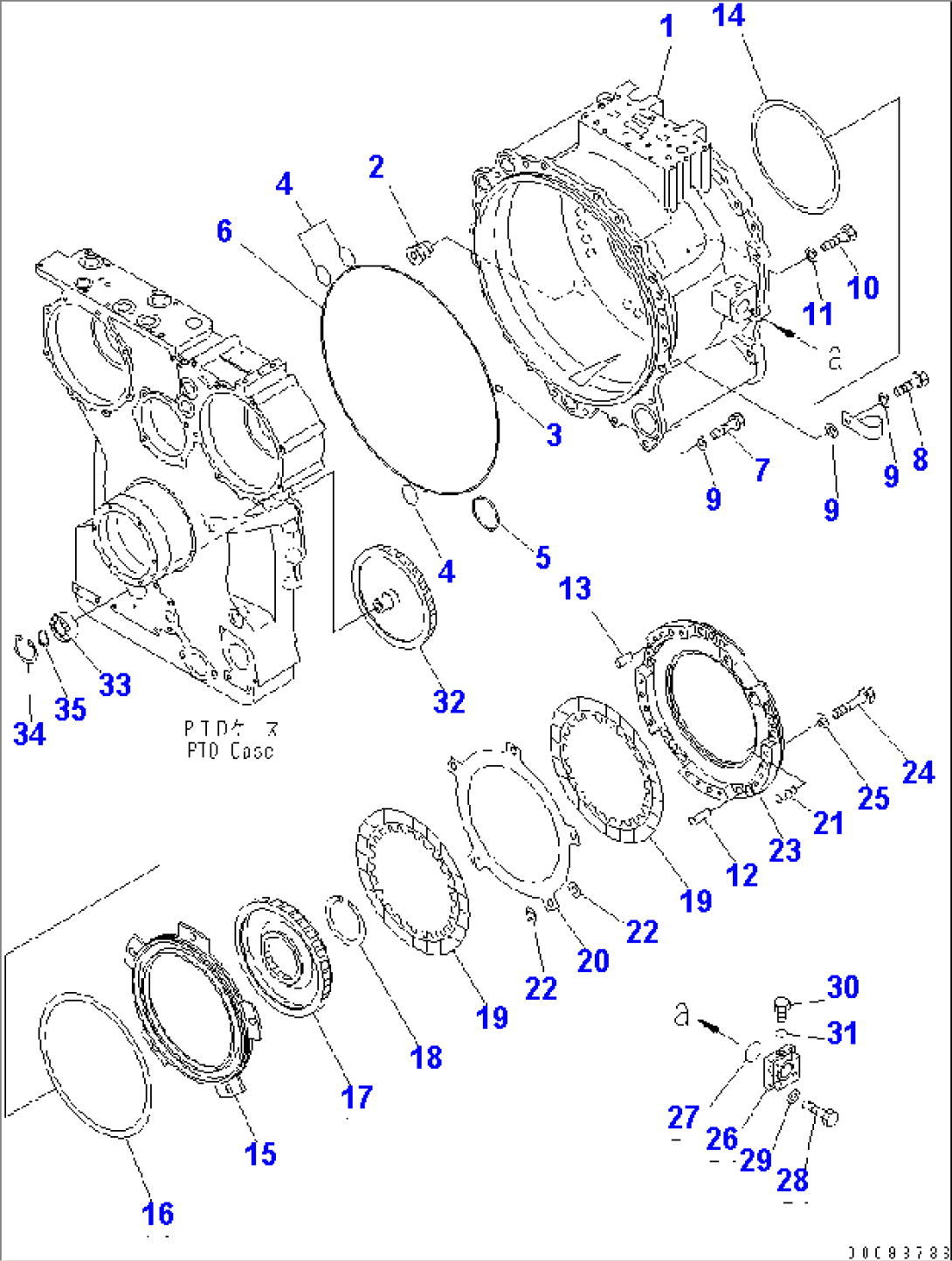

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2310-51C0 TO F2310-59C0. | ||||
| 1 | 195-13-83110 | HOUSING,REAR | (108657)- | |
| 1 | 195-13-73110 | HOUSING,REAR | 55001-(108656) | |
| 2 | 07043-71422 | PLUG | 55001- | |
| 3 | 07000-73034 | O-RING (K1) | 55001- | |
| 4 | 07000-73048 | O-RING (K1) | 55001- | |
| 5 | 07000-72085 | O-RING (K1) | 55001- | |
| 6 | 198-13-49110 | O-RING (K1) | 55001- | |
| 7 | 01010-61645 | BOLT | 55001- | |
| 8 | 01010-61650 | BOLT | 55001- | |
| 9 | 01643-51645 | WASHER | 55001- | |
| 10 | 01010-81030 | BOLT | 55001- | |
| 11 | 01643-31032 | WASHER | 55001- | |
| 12 | 711-66-18130 | PIN | 55001- | |
| 13 | 566-15-11260 | PIN,DOWEL | 55001- | |
| 14 | 145-15-42810 | RING,SEAL (K1) | 55001- | |
| 15 | 711-66-18210 | PISTON | 55001- | |
| 16 | 155-15-12820 | RING,SEAL (K1) | 55001- | |
| 17 | 711-67-18310 | GEAR | 55001- | |
| 18 | 04070-00125 | RING | 55001- | |
| 19 | 195-15-32710 | DISC | 55001- | |
| 20 | 566-15-12721 | PLATE | 55001- | |
| 21 | 711-66-18650 | SPRING | 55001- | |
| 22 | 711-66-18661 | SPRING | 55001- | |
| 23 | 711-66-18120 | HOUSING | 55001- | |
| 24 | 01010-81265 | BOLT | 55001- | |
| 25 | 01643-31232 | WASHER | 55001- | |
| 26 | 195-13-87130 | BLOCK | (108657)- | |
| 27 | 07000-72055 | O-RING | (108657)- | |
| 28 | 01010-81235 | BOLT | (108657)- | |
| 29 | 01643-31232 | WASHER | (108657)- | |
| 30 | 195-49-73470 | PLUG | (108657)- | |
| 31 | 07000-12014 | O-RING | (108657)- | |
| 32 | 711-60-14511 | GEAR | 55001- | |
| 33 | 17A-13-24490 | BEARING | 55001- | |
| 34 | 04065-07225 | RING,SNAP | 55001- | |
| 35 | 04064-03515 | RING,SNAP | 55001- |
