| Item | Part No. | Part Name | Qty | Serial No. |

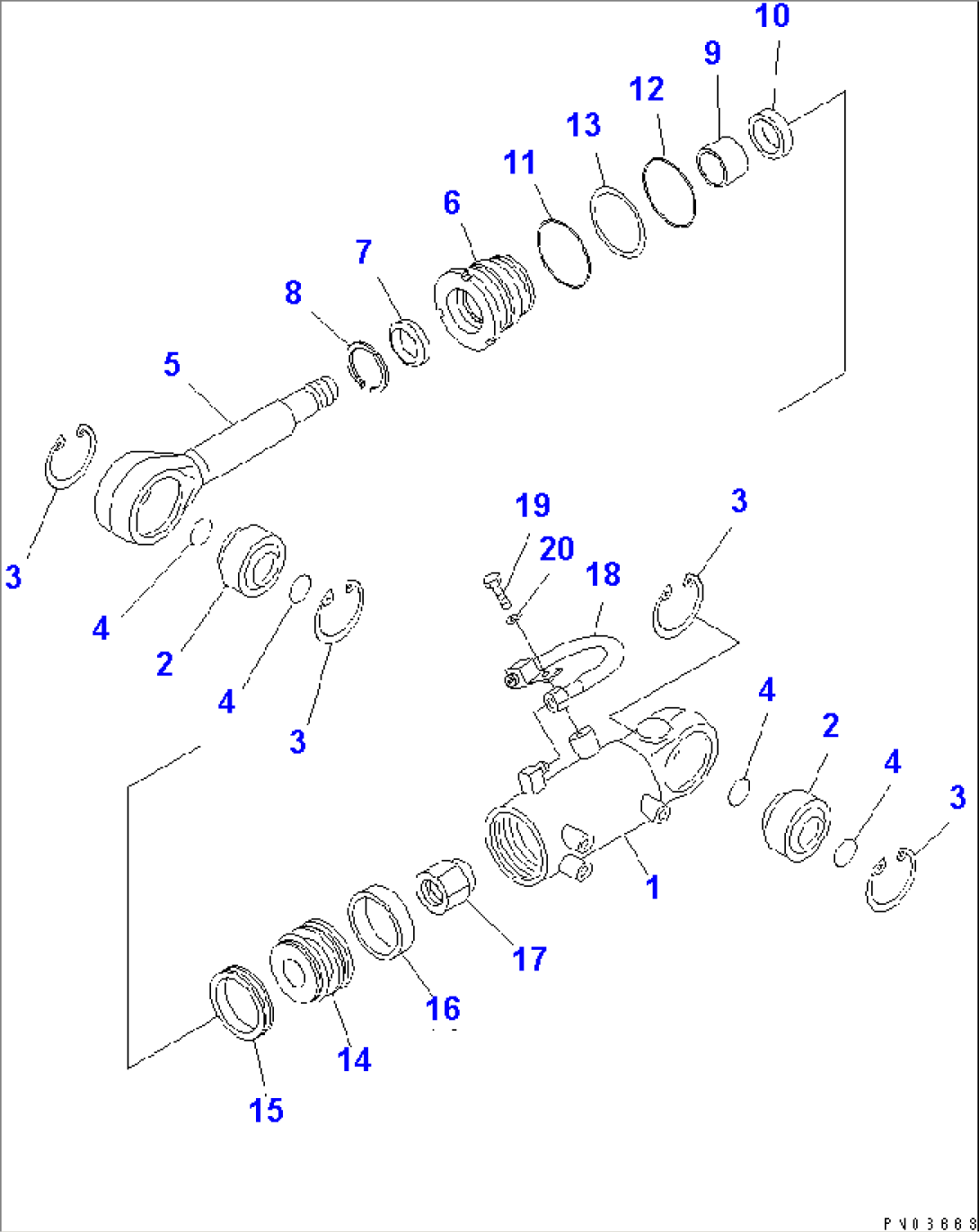

| G-1 | (\8\20U-63-X2090) | TILT CYLINDER GROUP | 3001- | |
| ==================== | ||||
| 20U-63-02090 | TILT CYLINDER ASS'Y | 3001- | ||
| 1 | 20U-63-92241 | CYLINDER | 3001- | |
| 2 | 07137-03505 | BUSHING | 3001- | |
| 3 | 04065-08025 | RING,SNAP | 3001- | |
| 4 | 07000-03035 | O-RING (KIT) | 3001- | |
| 5 | 20U-63-92220 | ROD | 3001- | |
| 6 | 707-29-90820 | HEAD,CYLINDER | 3001- | |
| 7 | 112-63-15370 | SEAL,DUST (KIT) | 3001- | |
| 8 | 07179-12057 | RING,SNAP | 3001- | |
| 9 | 07177-04530 | BUSHING | 3001- | |
| 10 | 707-51-45210 | PACKING,ROD (KIT) | 3001- | |
| 11 | 07000-02090 | O-RING (KIT) | 3001- | |
| 12 | 07000-12085 | O-RING (KIT) | 3001- | |
| 13 | 07146-02086 | RING,BACK-UP (KIT) | 3001- | |
| 14 | 707-36-90360 | PISTON | 3001- | |
| 15 | 707-44-90180 | RING,PISTON (KIT) | 3001- | |
| 16 | 07156-00912 | RING,WEAR (KIT) | 3001- | |
| 17 | 07165-13336 | NUT | 3001- | |
| 18 | 20U-63-92271 | TUBE | 3001- | |
| 19 | 01010-51020 | BOLT | 3001- | |
| 20 | 01643-31032 | WASHER | 3001- | |
| ==================== |
