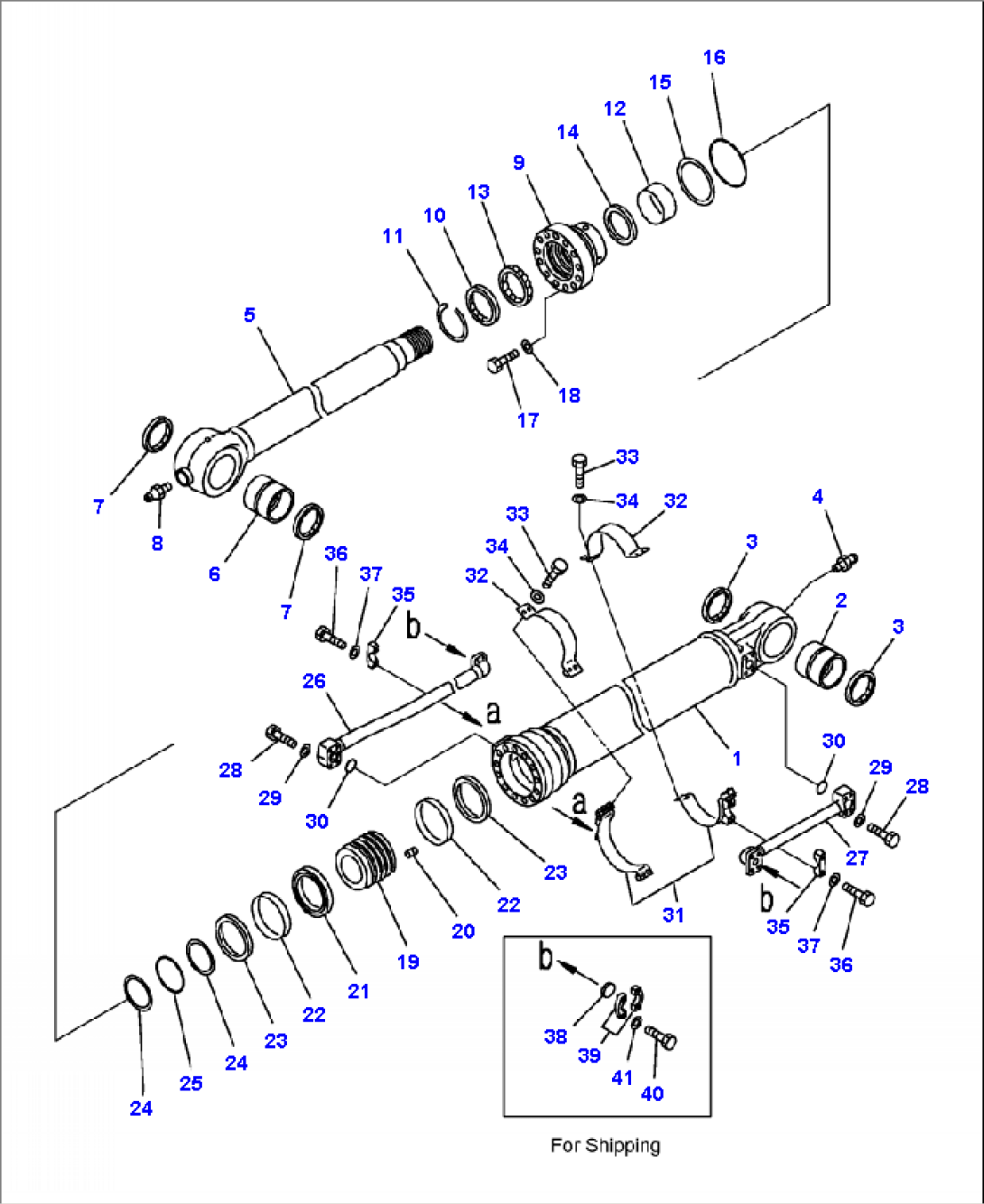

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-01-0H770 | BUCKET CYLINDER ASSEMBLY | A86001-A86005- | ||
| 1 | 707-13-14591 | CYLINDER | A86001-A86005- | |
| 2 | 707-76-90490 | BUSHING | A86001-A86005- | |
| 3 | 07145-00090 | SEAL, DUST | A86001-A86005- | |
| 4 | 07020-00000 | FITTING, GREASE | A86001-A86005- | |
| 5 | 707-58-10730 | ROD | A86001-A86005- | |
| 6 | 207-63-76170 | BUSHING | A86001-A86005- | |
| 7 | 207-70-72120 | SEAL, DUST | A86001-A86005- | |
| 8 | 07020-00000 | FITTING, GREASE | A86001-A86005- | |
| 9 | 707-27-14931 | HEAD | A86001-A86005- | |
| 10 | 176-63-56170 | SEAL, DUST | A86001-A86005- | |
| 11 | 07179-13114 | RING, SNAP | A86001-A86005- | |
| 12 | 707-52-90780 | BUSHING | A86001-A86005- | |
| 13 | 707-51-10030 | PACKING, ROD | A86001-A86005- | |
| 14 | 707-51-10640 | RING, BUFFER | A86001-A86005- | |
| 15 | 707-35-91420 | RING, BACK-UP | A86001-A86005- | |
| 16 | 07000-15130 | O-RING | A86001-A86005- | |
| 17 | 01010-81875 | BOLT | A86001-A86005- | |
| 18 | 707-41-11840 | WASHER | A86001-A86005- | |
| 19 | 707-36-14650 | PISTON | A86001-A86005- | |
| 20 | 01310-01216 | SCREW | A86001-A86005- | |
| 21 | 707-44-14180 | RING, PISTON | A86001-A86005- | |
| 22 | 707-39-14110 | RING, WEAR | A86001-A86005- | |
| 23 | 707-44-14910 | RING | A86001-A86005- | |
| 24 | 07001-05090 | RING, BACK-UP | A86001-A86005- | |
| 25 | 07000-15090 | O-RING | A86001-A86005- | |
| 26 | 707-86-11621 | TUBE | A86001-A86005- | |
| 27 | 207-63-73180 | TUBE | A86001-A86005- | |
| 28 | 07372-21060 | BOLT | A86001-A86005- | |
| 29 | 01643-51032 | WASHER | A86001-A86005- | |
| 30 | 07000-13035 | O-RING | A86001-A86005- | |
| 31 | 207-63-73790 | BRACKET | A86001-A86005- | |
| 32 | 707-88-21410 | BAND | A86001-A86005- | |
| 33 | 07372-21240 | BOLT | A86001-A86005- | |
| 34 | 01643-51232 | WASHER | A86001-A86005- | |
| 35 | 707-88-10150 | CLAMP | A86001-A86005- | |
| 36 | 01010-81245 | BOLT | A86001-A86005- | |
| 37 | 01643-31232 | WASHER | A86001-A86005- | |
| 38 | 707-88-33040 | CAP | A86001-A86005- | |
| 39 | 07371-31049 | FLANGE, SPLIT | A86001-A86005- | |
| 40 | 07372-21035 | BOLT | A86001-A86005- | |
| 41 | 01643-51032 | WASHER | A86001-A86005- | |
| 707-99-58090 | SERVICE KIT, BUCKET CYLINDER | A86001-A86005- | ||
| F1 - PART INCLUDED IN SERVICE KIT |
