| Item | Part No. | Part Name | Qty | Serial No. |

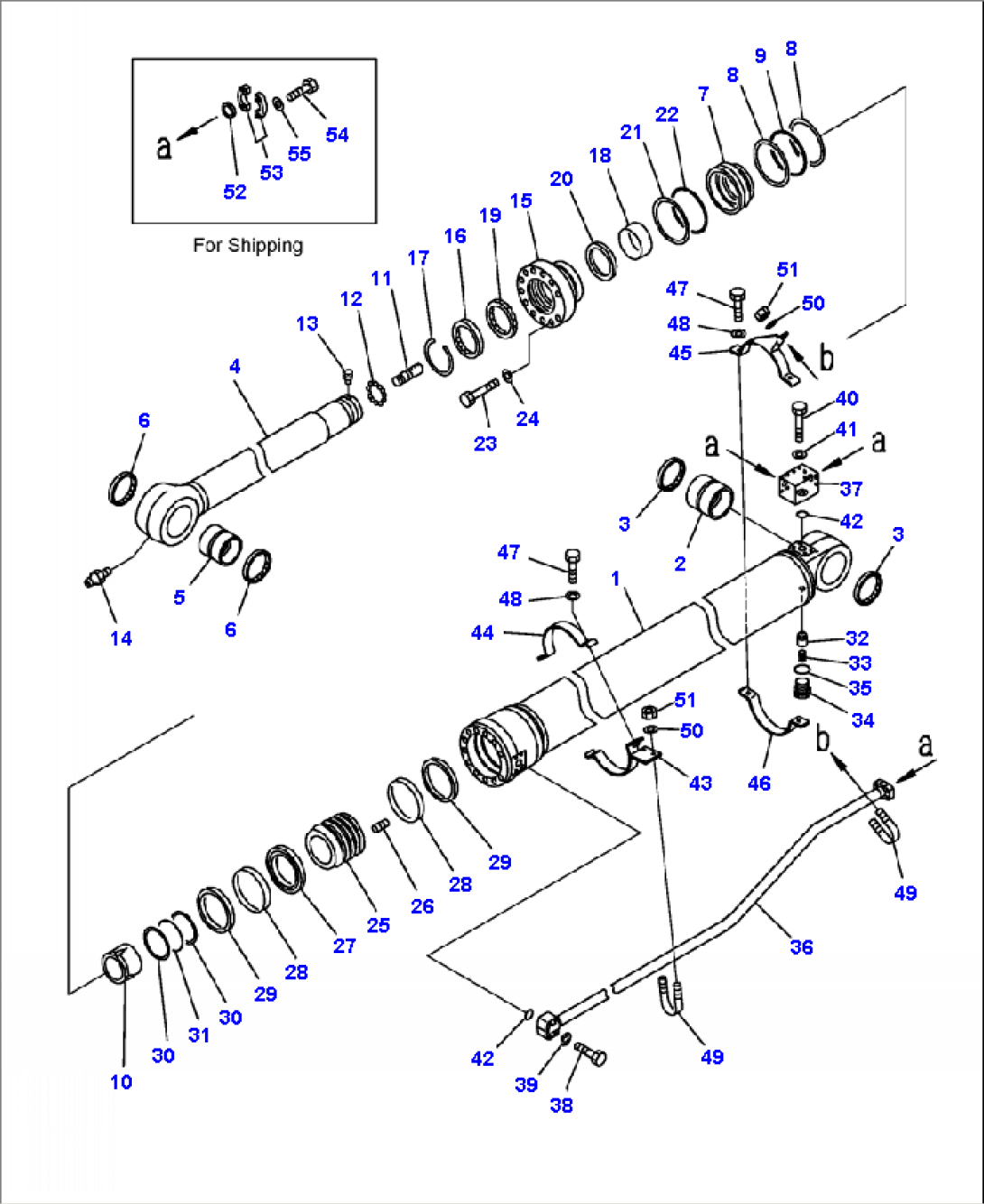

| 707-01-0A451 | ARM CYLINDER ASSEMBLY | A86001-A86005- | ||
| 1 | 707-13-16710 | CYLINDER | A86001-A86005- | |
| 2 | 707-76-10290 | BUSHING | A86001-A86005- | |
| 3 | 07145-00100 | SEAL, DUST | A86001-A86005- | |
| 4 | 707-58-11360 | ROD | A86001-A86005- | |
| 5 | 707-76-10290 | BUSHING | A86001-A86005- | |
| 6 | 07145-00100 | SEAL, DUST | A86001-A86005- | |
| 7 | 707-71-32800 | COLLAR | A86001-A86005- | |
| 8 | 707-35-91640 | RING, BACK-UP | A86001-A86005- | |
| 9 | 07000-15150 | O-RING | A86001-A86005- | |
| 10 | 707-71-61130 | PLUNGER | A86001-A86005- | |
| 11 | 707-71-70290 | PLUNGER | A86001-A86005- | |
| 12 | 04260-00635 | BALL | A86001-A86005- | |
| 13 | 707-71-91270 | CAP | A86001-A86005- | |
| 14 | 07020-00000 | FITTING, GREASE | A86001-A86005- | |
| 15 | 707-27-16920 | HEAD | A86001-A86005- | |
| 16 | 198-63-94170 | SEAL, DUST | A86001-A86005- | |
| 17 | 07179-13126 | RING, SNAP | A86001-A86005- | |
| 18 | 707-52-90850 | BUSHING | A86001-A86005- | |
| 19 | 707-51-11030 | PACKING, ROD | A86001-A86005- | |
| 20 | 707-51-11640 | RING, BUFFER | A86001-A86005- | |
| 21 | 707-35-91640 | RING, BACK-UP | A86001-A86005- | |
| 22 | 07000-15150 | O-RING | A86001-A86005- | |
| 23 | 01010-82085 | BOLT | A86001-A86005- | |
| 24 | 707-88-75310 | WASHER | A86001-A86005- | |
| 25 | 707-36-16580 | PISTON | A86001-A86005- | |
| 26 | 01310-01216 | SCREW | A86001-A86005- | |
| 27 | 707-44-16180 | RING, PISTON | A86001-A86005- | |
| 28 | 707-39-16120 | RING, WEAR | A86001-A86005- | |
| 29 | 707-44-16910 | RING | A86001-A86005- | |
| 30 | 07001-05100 | RING, BACK-UP | A86001-A86005- | |
| 31 | 07000-15100 | O-RING | A86001-A86005- | |
| 32 | 707-83-13010 | VALVE | A86001-A86005- | |
| 33 | 07750-01628 | SPRING | A86001-A86005- | |
| 34 | 707-87-14070 | PLUG | A86001-A86005- | |
| 35 | 07002-12034 | O-RING | A86001-A86005- | |
| A86001-A86005- | ||||
| 36 | 707-86-11600 | TUBE | A86001-A86005- | |
| 37 | 707-86-11610 | BLOCK | A86001-A86005- | |
| 38 | 07372-21060 | BOLT | A86001-A86005- | |
| 39 | 01643-51032 | WASHER | A86001-A86005- | |
| 40 | 01010-81095 | BOLT | A86001-A86005- | |
| 41 | 01643-31032 | WASHER | A86001-A86005- | |
| 42 | 07000-13035 | O-RING | A86001-A86005- | |
| 43 | 707-88-22740 | BRACKET | A86001-A86005- | |
| 44 | 707-88-21380 | BAND | A86001-A86005- | |
| 45 | 207-63-64190 | BRACKET | A86001-A86005- | |
| 46 | 707-88-21390 | BAND | A86001-A86005- | |
| 47 | 07372-21240 | BOLT | A86001-A86005- | |
| 48 | 01643-51232 | WASHER | A86001-A86005- | |
| 49 | 07283-33442 | CLIP | A86001-A86005- | |
| 50 | 01643-31032 | WASHER | A86001-A86005- | |
| 51 | 01597-01009 | NUT | A86001-A86005- | |
| 52 | 707-88-33040 | CAP | A86001-A86005- | |
| 53 | 07371-31049 | FLANGE, SPLIT | A86001-A86005- | |
| 54 | 07372-21035 | BOLT | A86001-A86005- | |
| 55 | 01643-51032 | WASHER | A86001-A86005- | |
| 707-99-72300 | SERVICE KIT, ARM CYLINDER | A86001-A86005- | ||
| F1 - PART INCLUDED IN SERVICE KIT |
