| Item | Part No. | Part Name | Qty | Serial No. |

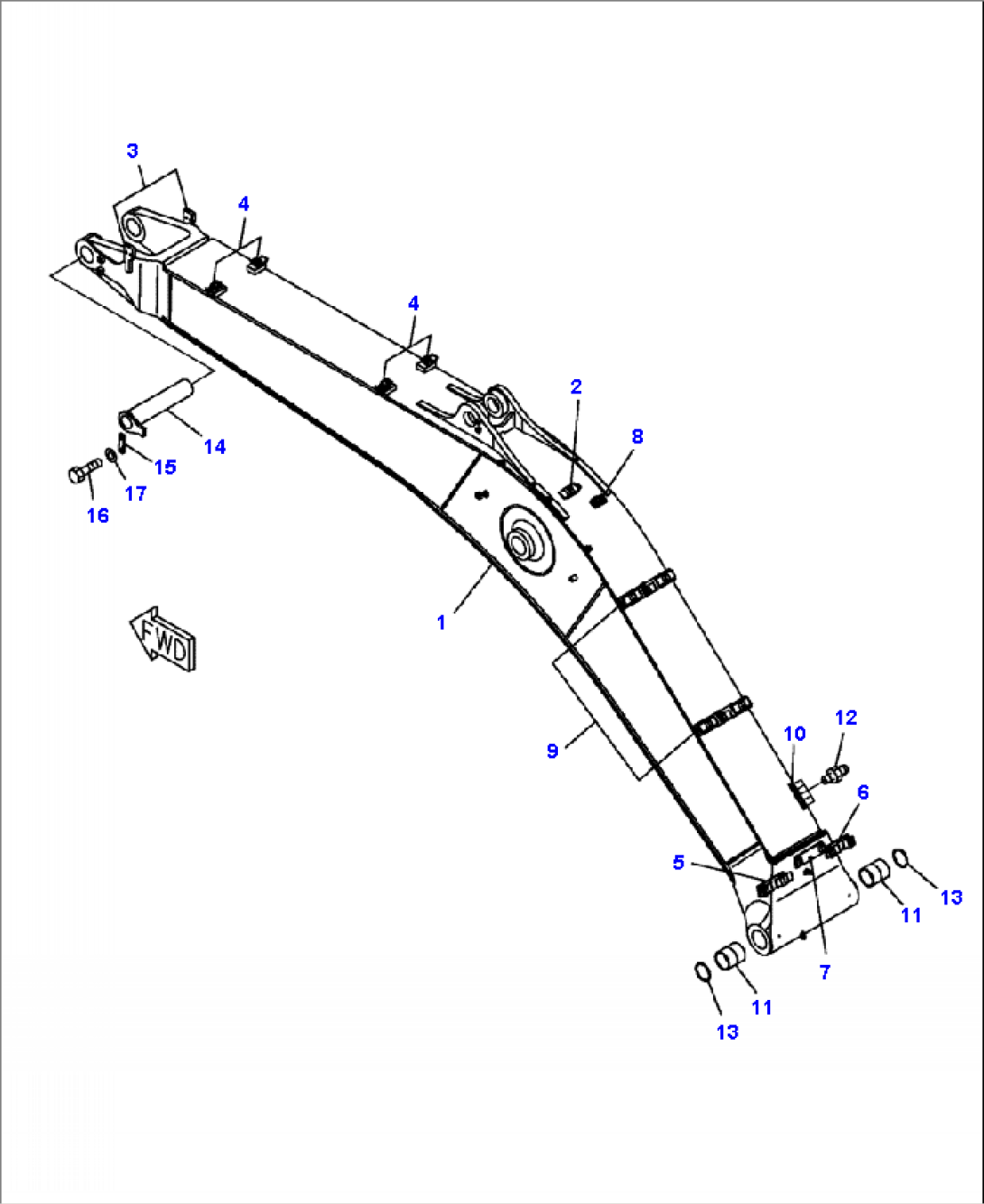

| 207-70-00283 | BOOM ASSEMBLY | A86001-- | ||
| 1 | (NSS) | BOOM | A86001-- | |
| 2 | 207-62-54750 | BRACKET (WELDED) | A86001-- | |
| 3 | 207-62-74221 | BRACKET (WELDED) | A86001-- | |
| 4 | 207-62-74231 | BRACKET (WELDED) | A86001-- | |
| 5 | 207-62-74240 | BRACKET (WELDED) | A86001-- | |
| 6 | 207-62-74251 | BRACKET (WELDED) | A86001-- | |
| 7 | 207-62-74281 | BRACKET (WELDED) | A86001-- | |
| 8 | 207-62-74340 | BRACKET (WELDED) | A86001-- | |
| 9 | 207-62-74371 | BRACKET (WELDED) | A86001-- | |
| 10 | 20Y-70-11651 | SEAT (WELDED) | A86001-- | |
| 11 | 207-70-71162 | BUSHING | A86001-- | |
| 12 | 07020-00000 | FITTING | A86001-- | |
| 13 | 07145-00110 | SEAL | A86001-- | |
| 14 | 207-70-72312 | PIN | A86001-- | |
| 15 | 207-70-31230 | PLATE | A86001-- | |
| 16 | 01010-81640 | BOLT | A86001-- | |
| 17 | 01643-31645 | WASHER | A86001-- |
