| Item | Part No. | Part Name | Qty | Serial No. |
| (706-75-01150) | MOTOR ASS'Y | 52852- | ||

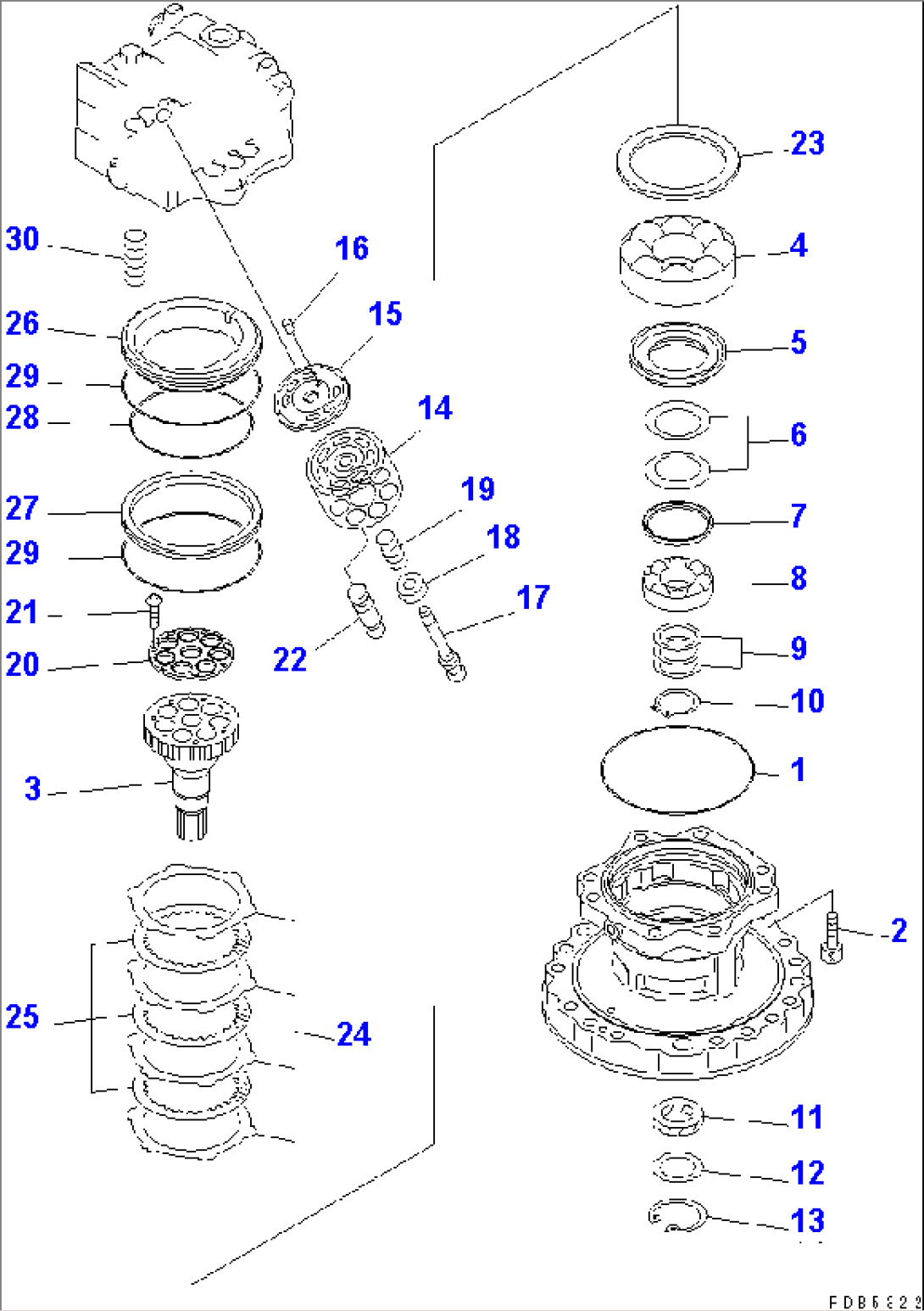

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1640-01A0C T0 Y1640-03A0C . | ||||
| (706-75-03330) | MOTOR SUB ASS'Y | 52741- | ||
| 1 | (\7\565-14-22440) | O-RING | 52741- | |
| 2 | (\7\01252-61445) | BOLT | 52741- | |
| 3 | (\7\706-75-43660) | SHAFT,DRIVE | 52741- | |
| 4 | (\7\706-75-42880) | BEARING | 50001- | |
| 5 | (\7\706-75-43810) | SPACER | 52741- | |
| 6 | (\7\706-7E-11260) | SPRING | 50001- | |
| 7 | (\7\706-7E-11270) | SEAT | 50001- | |
| 8 | (\7\706-76-40890) | BEARING | 50001- | |
| 9 | (\7\706-75-05040) | SPACER KIT | 52741- | |
| 9 | \6\ | SPACER, 3.1MM | 52741- | |
| 9 | \6\ | SPACER, 3.4MM | 52741- | |
| 9 | \6\ | SPACER, 3.7MM | 52741- | |
| 10 | (\7\04064-04518) | RING,SNAP | 50001- | |
| 11 | (\7\706-7E-11280) | SEAL,OIL | 50001- | |
| 12 | (\7\706-75-43720) | SPACER | 52741- | |
| 13 | (\7\04065-06220) | RING | 52741- | |
| 14 | (\7\706-75-43190) | BLOCK,CYLINDER | 52741- | |
| 15 | (\7\706-75-43741) | PLATE,VALVE | 52741- | |
| 16 | (\7\706-75-43750) | PIN,DOWEL | 52741- | |
| 17 | (\7\706-75-43120) | SHAFT,CENTER | 52741- | |
| 18 | (\7\706-75-43130) | RING,CENTER | 52741- | |
| 19 | (\7\706-75-43140) | SPRING | 52741- | |
| (\7\706-75-05020) | RETAINER KIT | 50001- | ||
| 20 | \6\ | RETAINER | 50001- | |
| 21 | \6\ | SCREW | 50001- | |
| 22 | (\7\706-75-43160) | PISTON SUB ASS'Y | 52741- | |
| 23 | (\7\706-75-92130) | PLATE | 50001- | |
| 24 | (\7\706-75-92340) | PLATE | 52741- | |
| 25 | (\7\706-75-92350) | DISK | 52741- | |
| 26 | (\7\706-75-92380) | PISTON,BRAKE | 52741- | |
| 27 | (\7\706-75-92390) | RING,BRAKE | 52741- | |
| 28 | (\7\07000-12145) | O-RING | 52741- | |
| 29 | (\7\706-75-92310) | O-RING | 52741- | |
| 30 | (\7\706-75-92360) | SPRING | 52741- |
