| Item | Part No. | Part Name | Qty | Serial No. |
| (706-7G-01041) | MOTOR ASS'Y | 69348- | ||
| (706-7G-01040) | MOTOR ASS'Y | 60001-69347 | ||

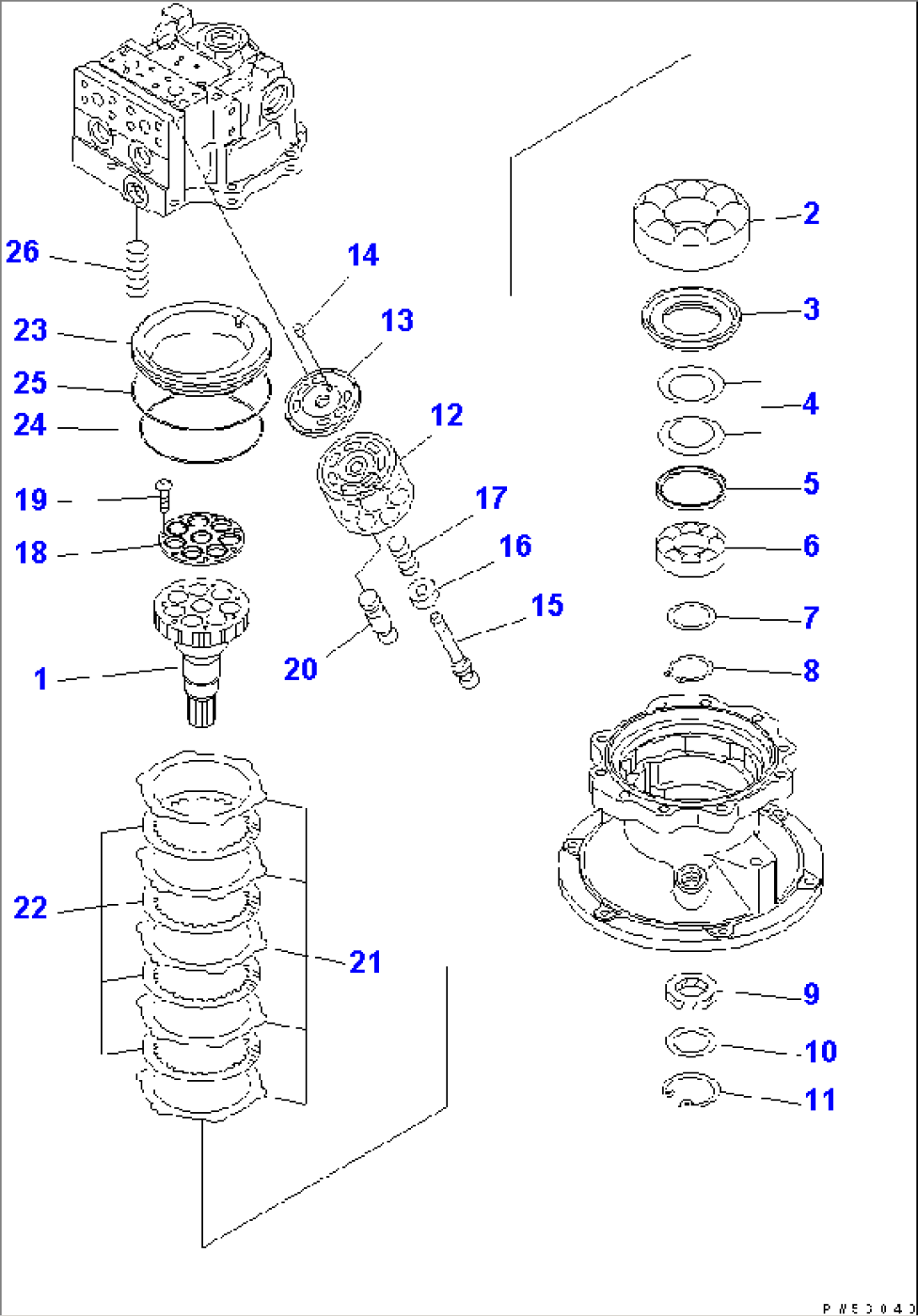

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-03A0. | ||||
| (706-7G-03041) | MOTOR SUB ASS'Y | 69348- | ||
| (706-7G-03040) | MOTOR SUB ASS'Y | 60001-69347 | ||
| 1 | (\7\706-7G-41610) | SHAFT,DRIVE | 60001- | |
| 2 | (\7\706-75-42880) | BEARING | 60001- | |
| 3 | (\7\706-75-43810) | SPACER | 60001- | |
| 4 | (\7\706-7E-11260) | SPRING | 60001- | |
| 5 | (\7\706-7E-11270) | SEAT | 60001- | |
| 6 | (\7\706-76-40890) | BEARING | 60001- | |
| 7 | (\7\706-75-05040) | SPACER KIT | 60001- | |
| 7 | \6\ | SPACER, 3.1MM | 60001- | |
| 7 | \6\ | SPACER, 3.4MM | 60001- | |
| 7 | \6\ | SPACER, 3.7MM | 60001- | |
| 8 | 04064-04518 | RING,SNAP | 60001- | |
| 9 | 706-7E-11280 | SEAL,OIL | 60001- | |
| 10 | 706-7G-41910 | SPACER | 60001- | |
| 11 | 04065-06220 | RING | 60001- | |
| 12 | (\7\706-7G-41210) | BLOCK,CYLINDER | 60001- | |
| 13 | (\7\706-7G-41710) | PLATE,VALVE | 60001- | |
| 14 | (\7\706-75-43750) | PIN,DOWEL | 60001- | |
| 15 | (\7\706-7G-41120) | SHAFT,CENTER | 60001- | |
| 16 | (\7\706-7G-41130) | RING,CENTER | 60001- | |
| 17 | (\7\706-7G-41140) | SPRING | 60001- | |
| (\7\706-7G-05010) | RETAINER KIT | 60001- | ||
| 18 | \6\ | RETAINER | 60001- | |
| 19 | \6\ | SCREW | 60001- | |
| 20 | (\7\706-7G-41160) | PISTON SUB ASS'Y | 60001- | |
| 21 | (\7\706-7G-91340) | PLATE | 60001- | |
| 22 | (\7\706-7G-91350) | DISC | 60001- | |
| 23 | (\7\706-7G-91111) | PISTON | 69348- | |
| 23 | (\7\706-7G-91110) | PISTON,BRAKE | 60001-69347 | |
| 24 | (\7\706-77-40370) | O-RING | 60001- | |
| 25 | (\7\708-8F-31610) | O-RING | 60001- | |
| 26 | (\7\706-7G-91360) | SPRING | 60001- |
