| Item | Part No. | Part Name | Qty | Serial No. |
| 706-7K-01170 | MOTOR ASSEMBLY | K50528- | ||

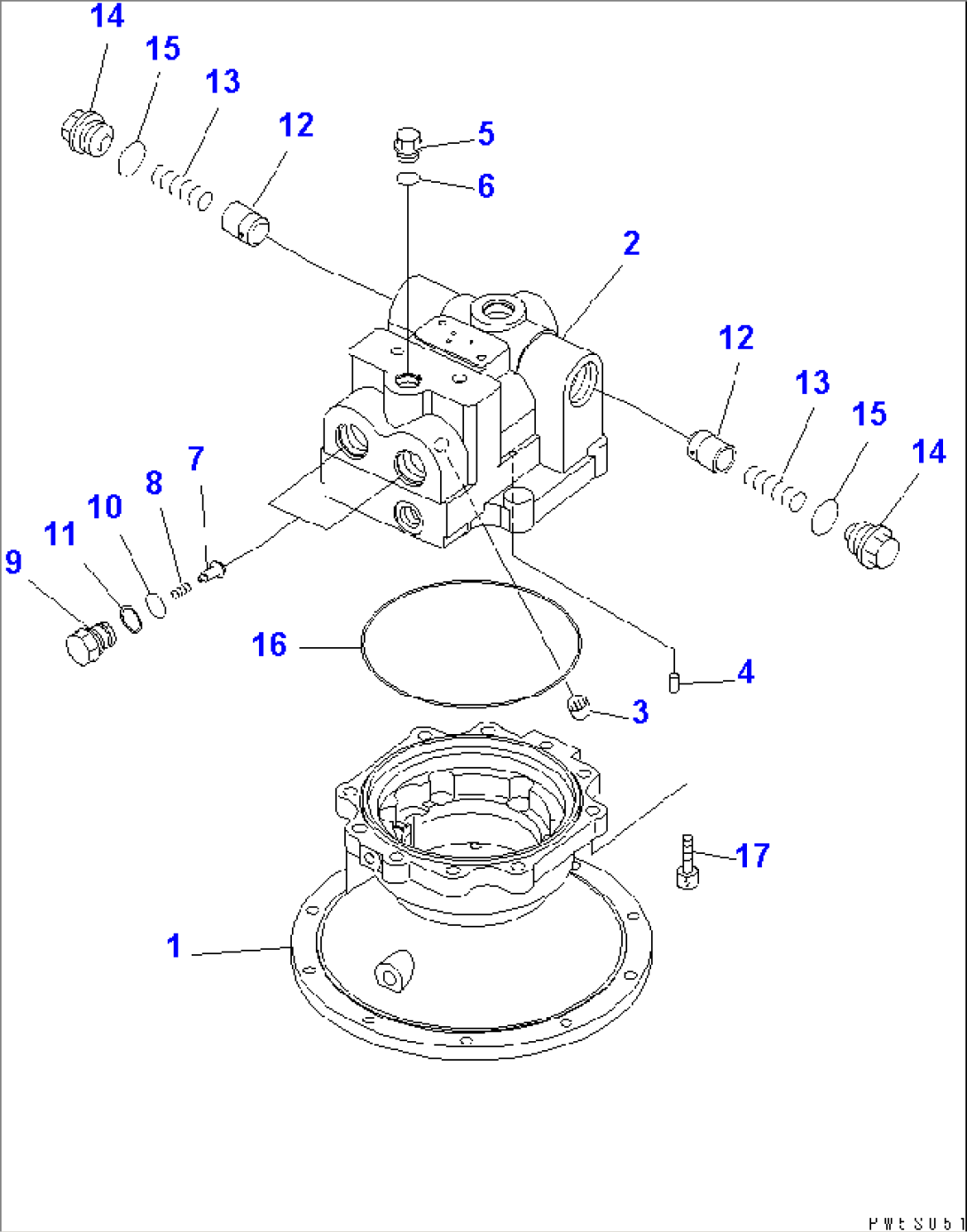

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1640-01A1 TO Y1640-03A1. | ||||
| 706-7K-03140 | MOTOR SUB ASSEMBLY | K50528- | ||
| 1 | (\7\706-7K-41150) | CASE, MOTOR | K50528- | |
| 2 | (\7\706-7K-71110) | HOUSING | K50528- | |
| 3 | (\7\706-7K-40010) | BEARING | K50528- | |
| 4 | (\7\706-75-42830) | PIN, DOWEL | K50528- | |
| 5 | 706-77-72280 | PLUG | K50528- | |
| 6 | 07002-62034 | O-RING | K50528- | |
| 7 | 709-74-92810 | VALVE | K50528- | |
| 8 | 709-75-92220 | SPRING | K50528- | |
| 9 | 709-74-92821 | PLUG | K50528- | |
| 10 | 708-2L-23960 | O-RING | K50528- | |
| 11 | 700-93-11330 | RING, BACK-UP | K50528- | |
| 12 | 706-77-72130 | VALVE | K50528- | |
| 13 | 706-77-72140 | SPRING | K50528- | |
| 14 | 706-77-72150 | PLUG | K50528- | |
| 15 | 07002-64234 | O-RING | K50528- | |
| 16 | (\7\706-7K-40040) | O-RING | K50528- | |
| 17 | 01252-61450 | BOLT | K50528- |
