| Item | Part No. | Part Name | Qty | Serial No. |
| 708-7S-00040 | SWING MOTOR ASS'Y | 3111-5385 | ||
| 708-7S-00022 | SWING MOTOR ASS'Y | 3001-3110 | ||

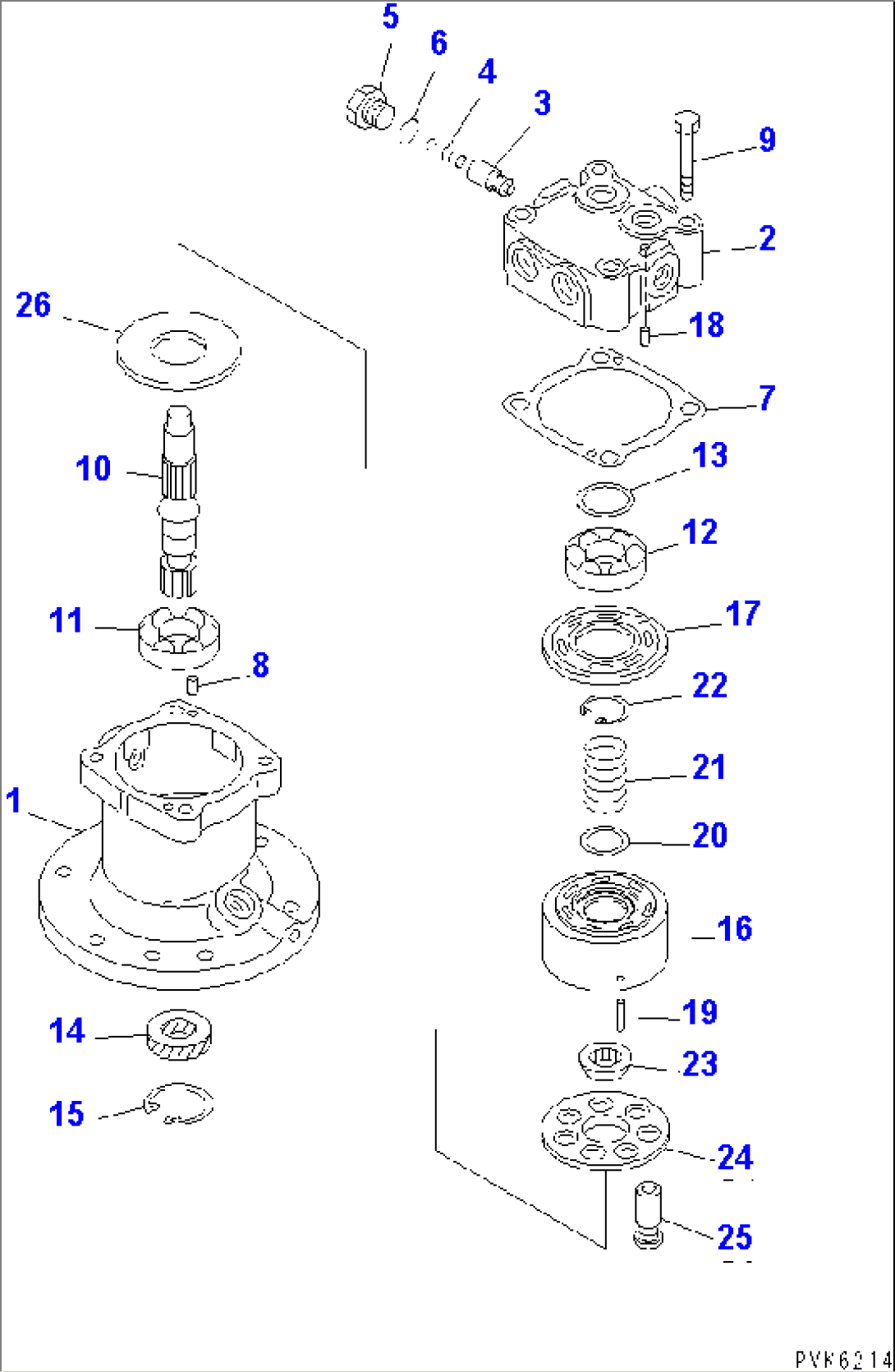

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 AND Y1640-02A0. | ||||
| 1 | (\7\708-7S-11112) | CASE | 3001-5385 | |
| 2 | (\7\708-7S-11512) | COVER,END | 3001-5385 | |
| 3 | 708-7T-16110 | VALVE | 3001-5385 | |
| 4 | 708-7T-16130 | SPRING | 3001-5385 | |
| 5 | 07040-11812 | PLUG | 3001-5385 | |
| 6 | 07002-11823 | O-RING | 3001-5385 | |
| 7 | (\7\708-7S-11120) | GASKET | 3001-5385 | |
| 8 | (\7\720-68-19610) | PIN | 3001-5385 | |
| 9 | (\7\01010-81060) | BOLT | 3001-5385 | |
| 10 | (\7\708-7S-12111) | SHAFT | 3001-5385 | |
| 11 | (\7\708-7S-12140) | BEARING | 3001-5385 | |
| 12 | (\7\708-7T-12250) | BEARING | 3001-5385 | |
| 13 | (\7\708-7T-05020) | SPACER KIT | 3001-5385 | |
| \6\ | SPACER¤ 1.6MM | 3001-5385 | ||
| \6\ | SPACER¤ 1.7MM | 3001-5385 | ||
| \6\ | SPACER¤ 1.8MM | 3001-5385 | ||
| \6\ | SPACER¤ 1.9MM | 3001-5385 | ||
| \6\ | SPACER¤ 2.0MM | 3001-5385 | ||
| \6\ | SPACER¤ 2.1MM | 3001-5385 | ||
| \6\ | SPACER¤ 2.2MM | 3001-5385 | ||
| 14 | 708-7T-12230 | SEAL,OIL | 3001-5385 | |
| 15 | 04065-04518 | RING,SNAP | 3001-5385 | |
| 16 | (\7\708-7S-13110) | BLOCK,CYLINDER | 3001-5385 | |
| 17 | (\7\708-7S-13230) | PLATE,VALVE | 3001-5385 | |
| 18 | (\7\720-68-19610) | PIN | 3001-5385 | |
| 19 | (\7\708-7T-13540) | PIN | 3001-5385 | |
| 20 | (\7\708-7S-13530) | SPACER | 3001-5385 | |
| 21 | (\7\708-7S-13520) | SPRING | 3001-5385 | |
| 22 | (\7\04065-03212) | RING,SNAP | 3001-5385 | |
| 23 | (\7\708-7S-13510) | RETAINER | 3001-5385 | |
| 24 | (\7\708-7S-13340) | RETAINER,SHOE | 3001-5385 | |
| 25 | (\7\708-7S-13311) | PISTON SUB ASS'Y | 3001-5385 | |
| 26 | (\7\708-7S-13411) | PLATE,THRUST | 3001-5385 |
