| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 201-62-76610 | HOSE, 1300MM | 59571- | |
| 2 | 201-62-76620 | HOSE, 1100MM | 59571- | |
| 3 | 07236-10422 | ELBOW | 45001- | |
| 4 | 124-49-51430 | JOINT | 52374- | |
| 5 | 07002-12034 | O-RING | 45001- |
Поиск по каталогу

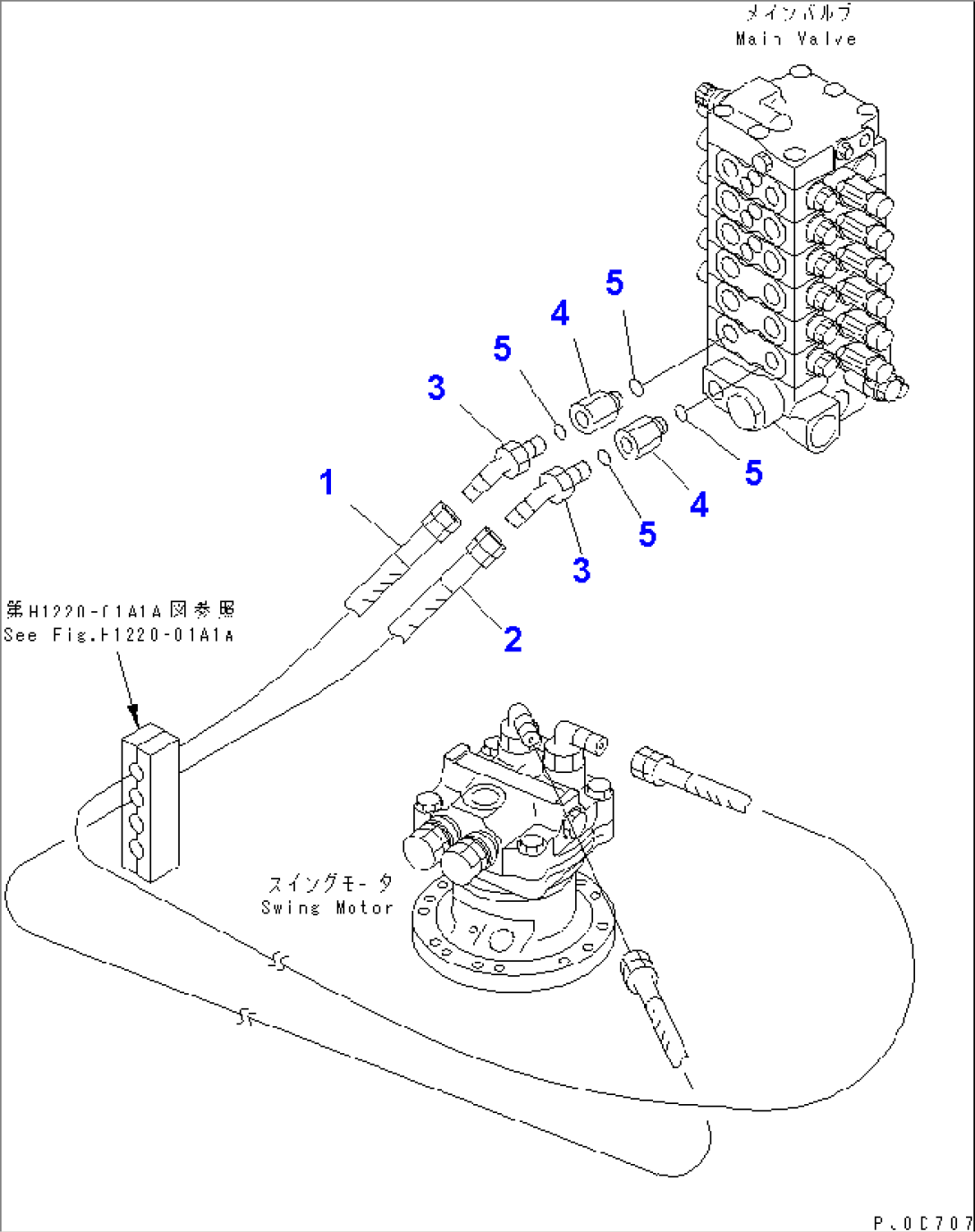

SWING LINE(#59571-)
| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 201-62-76610 | HOSE, 1300MM | 59571- | |
| 2 | 201-62-76620 | HOSE, 1100MM | 59571- | |
| 3 | 07236-10422 | ELBOW | 45001- | |
| 4 | 124-49-51430 | JOINT | 52374- | |
| 5 | 07002-12034 | O-RING | 45001- |
