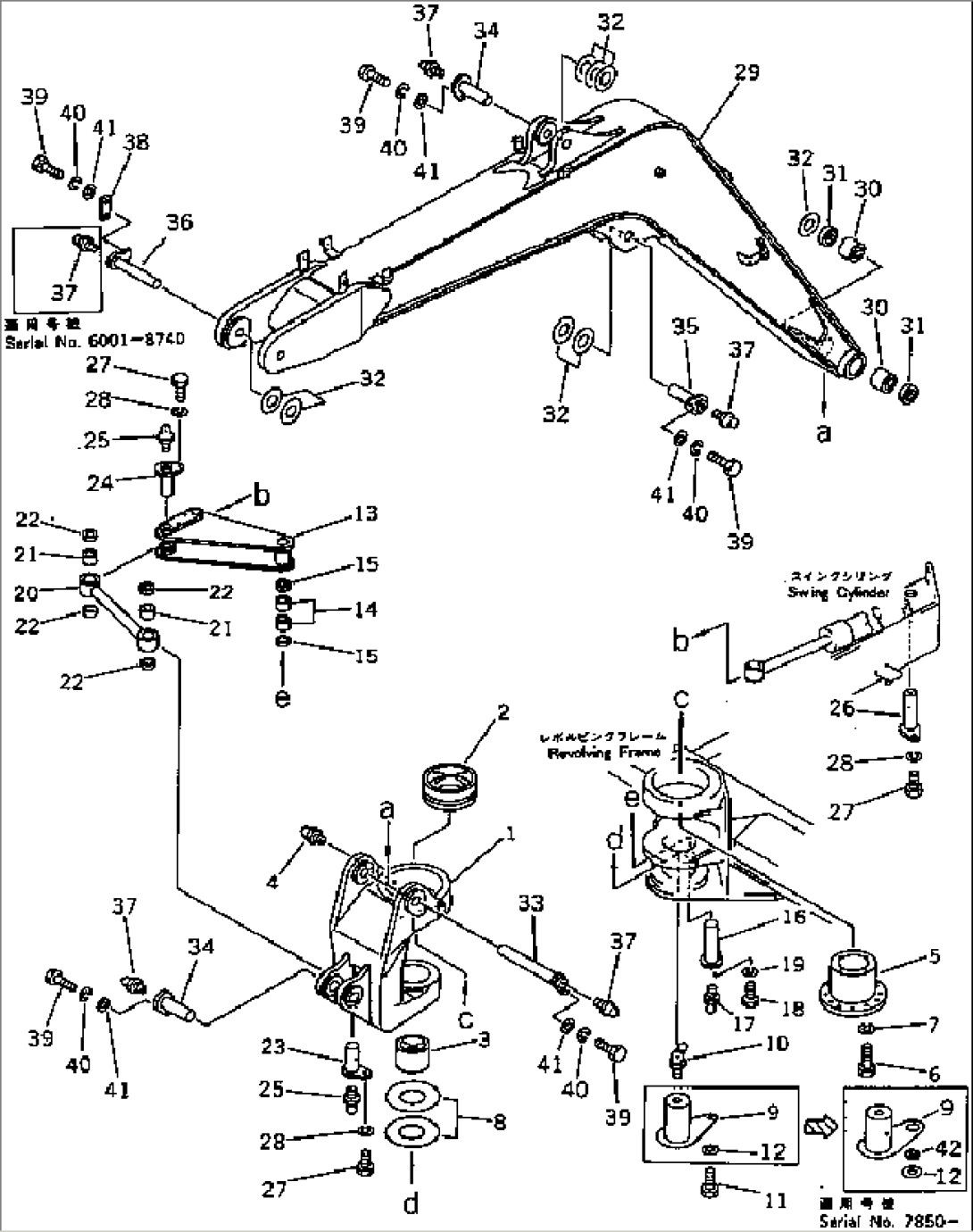

SWING BRACKET AND BOOM (USA SPEC.) (WITH ATTACHMENT PIPING)

SWING BRACKET AND BOOM (USA SPEC.) (WITH ATTACHMENT PIPING)
ItemPart No.Part NameQtySerial No.
20S-70-00120SWING BRACKET ASS'Y6001-
1\6\BRACKET6001-
220S-70-21420BUSHING6001-
320S-70-21430BUSHING6001-
407020-00000FITTING,GREASE6001-
520S-70-21440SHAFT6001-
601010-51235BOLT6001-
701602-21236WASHER,SPRING6001-
820S-70-21460SPACER, 0.5MM6001-
820S-70-21470SPACER, 1.0MM6001-
920S-70-21450PIN6001-
1007020-00675FITTING,GREASE6001-
1101010-51635BOLT6001-
1201643-31645WASHER6001-
20S-70-00150LINK ASS'Y6001-
13\6\LINK6001-
1407143-10304BUSHING6001-
1507145-00035SEAL,DUST6001-
1620S-70-21330PIN6001-
1707020-00000FITTING,GREASE6001-
1801010-51225BOLT6001-
1901602-21236WASHER,SPRING6001-
20S-70-00170ROD ASS'Y6001-
20\6\ROD6001-
2107143-10304BUSHING6001-
2207145-00035SEAL,DUST6001-
2320S-70-21350PIN6001-
2420S-70-21360PIN6001-
2507020-00000FITTING,GREASE6001-
2620S-70-21340PIN6001-
2701010-51225BOLT6001-
2801602-21236WASHER,SPRING6001-
20S-70-00210BOOM ASS'Y6001-
29\6\BOOM6001-
3020S-70-11220BUSHING6001-
3107145-00040SEAL,DUST6001-
3220R-70-11260SPACER, 1.0MM6001-
3320R-70-11163PIN6001-
3420R-70-11171PIN6001-
3520R-70-11181PIN6001-
3620S-70-21221PIN8741-
3620S-70-21220PIN6001-8740
3707020-00000FITTING,GREASE8741-
3707020-00000FITTING,GREASE6001-8740
3820R-70-11250PLATE6001-
3901010-51230BOLT6001-
4001602-21236WASHER,SPRING6001-
4101643-31232WASHER6001-
4220S-70-21490SPACER7850-
