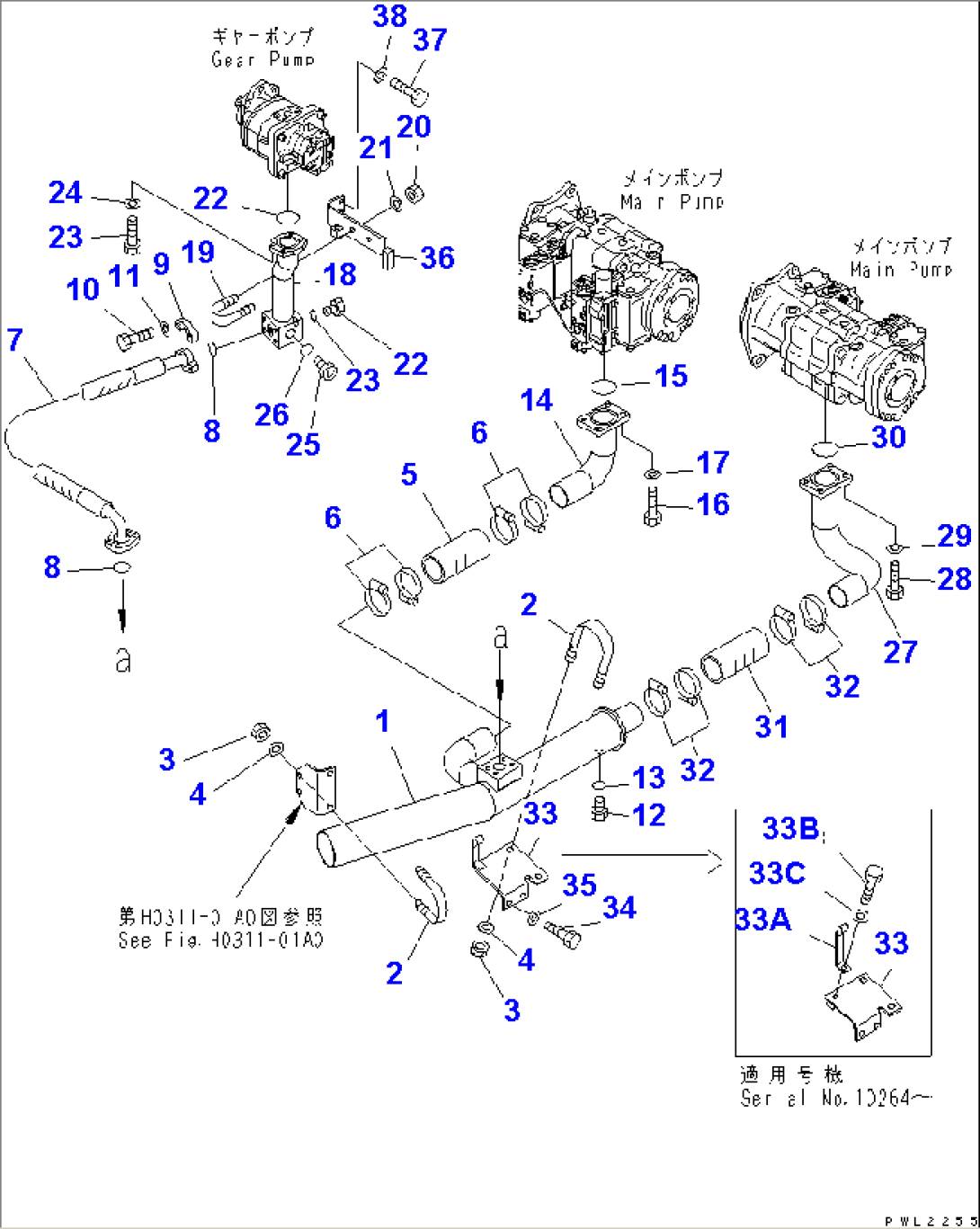

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-62-78822 | TUBE | 10239-10999 | |
| 2 | 07283-21193 | CLIP | 10001-@ | |
| 3 | 01599-01214 | NUT | 10001-@ | |
| 4 | 01643-31232 | WASHER | 10001-@ | |
| 5 | 07260-07420 | HOSE | 10191-@ | |
| 6 | 07289-00095 | CLAMP | 10001-@ | |
| 7 | 07298-01409 | HOSE | 10239-@ | |
| 8 | 07000-13048 | O-RING | 10239-@ | |
| 9 | 07371-31465 | FLANGE | 10001-@ | |
| 10 | 07372-21240 | BOLT | 10001-@ | |
| 11 | 01643-51232 | WASHER | 10001-@ | |
| 12 | 07040-12412 | PLUG | 10001-@ | |
| 13 | 07002-12434 | O-RING | 10239-@ | |
| 14 | 209-62-78831 | TUBE | 10239-10999 | |
| 15 | 07000-12080 | O-RING | 10239-@ | |
| 16 | 01010-81240 | BOLT | 10001-@ | |
| 17 | 01643-31232 | WASHER | 10001-@ | |
| 18 | 209-62-78851 | TUBE | 10239-10999 | |
| 19 | 07283-26155 | CLIP | 10239-@ | |
| 20 | 01599-01011 | NUT | 10239-@ | |
| 21 | 01643-31032 | WASHER | 10239-@ | |
| 22 | 07000-12060 | O-RING | 10239-@ | |
| 23 | 01010-81240 | BOLT | 10001-10999 | |
| 24 | 01643-31232 | WASHER | 10001-10999 | |
| 25 | 07040-12412 | PLUG | 10001-@ | |
| 26 | 07002-12434 | O-RING | 10239-@ | |
| 27 | 209-62-78841 | TUBE | 10239-10999 | |
| 28 | 01010-81240 | BOLT | 10001-@ | |
| 29 | 01643-31232 | WASHER | 10001-@ | |
| 30 | 07000-12080 | O-RING | 10239-@ | |
| 31 | 07260-07420 | HOSE | 10239-@ | |
| 32 | 07289-00095 | CLAMP | 10239-@ | |
| 33 | 209-62-71783 | BRACKET | 10264-@ | |
| 33 | \0\209-62-71782 | BRACKET | 10239-10263 | |
| 33A | 209-62-75750 | BRACKET | 10264-10999 | |
| 33B | 01010-81230 | BOLT | 10264-10999 | |
| 33C | 01643-31232 | WASHER | 10264-10999 | |
| 34 | 01010-81230 | BOLT | 10001-@ | |
| 35 | 175-54-34170 | WASHER | 10001-@ | |
| 36 | 209-62-78860 | BRACKET | 10239-10999 | |
| 37 | 01010-81030 | BOLT | 10239-@ | |
| 38 | 01643-31032 | WASHER | 10239-@ |
