| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 205-62-33262 | Tube | 10001- | |
| 2 | 07000-12100 | O-ring | 10001- | |
| 3 | 7861-93-3320 | Sensor, Temperature | 10001- | |
| 4 | 07260-08732 | Hose | 10001- | |
| 5 | 20Y-62-51671 | Clamp | 10001- | |
| 6 | 01010-81235 | Bolt | 10001- | |
| 7 | 01643-31232 | Washer | 10001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Hb205 1m0 s/n 10001 up
- Hydraulic system
- Suction piping (#10001 )
Поиск по каталогу

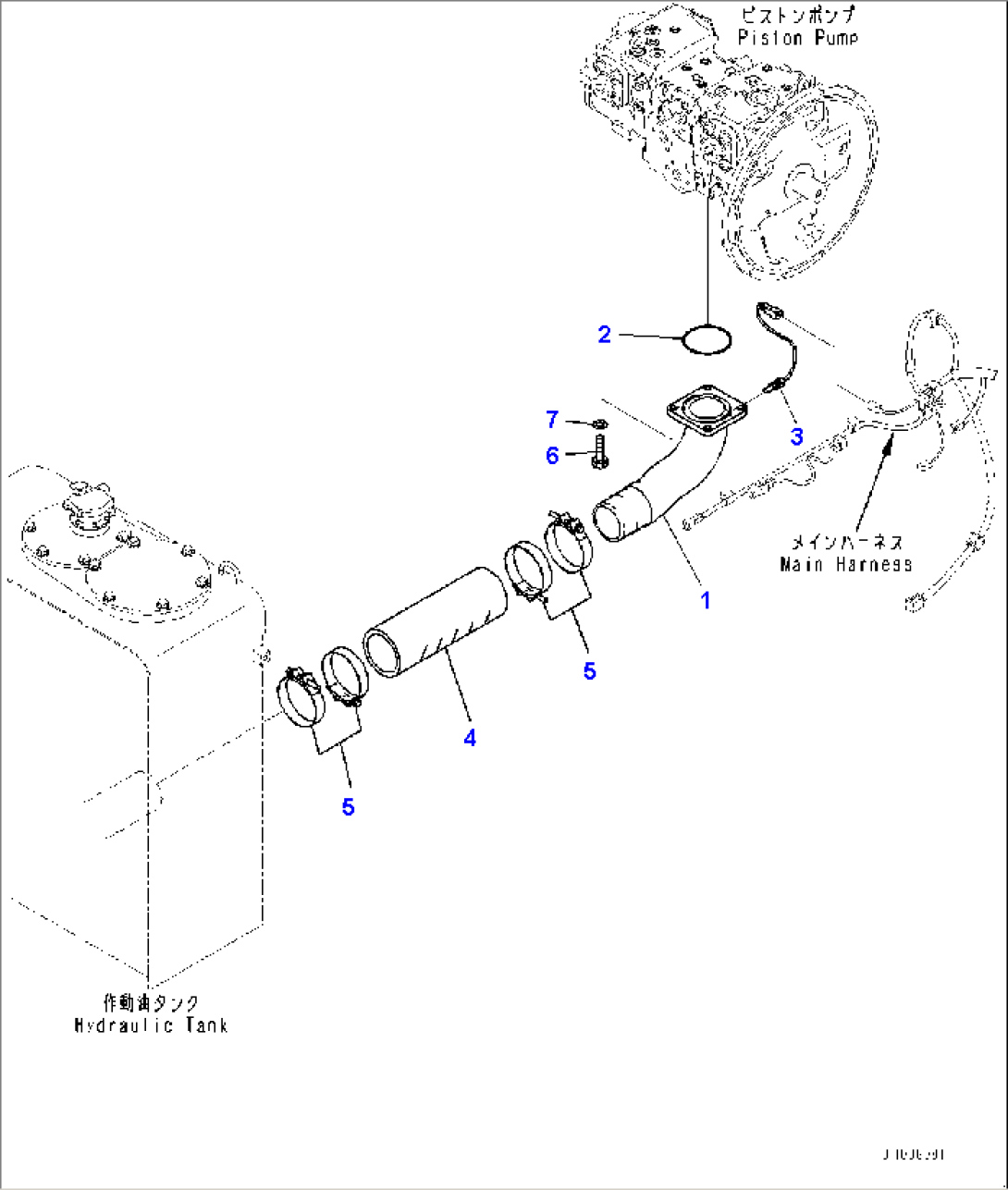

Suction Piping (#10001-)
